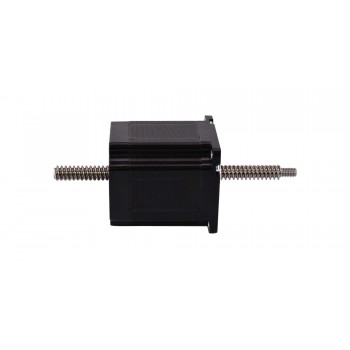

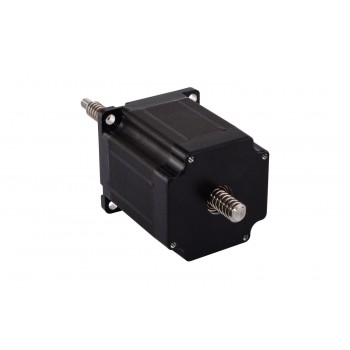

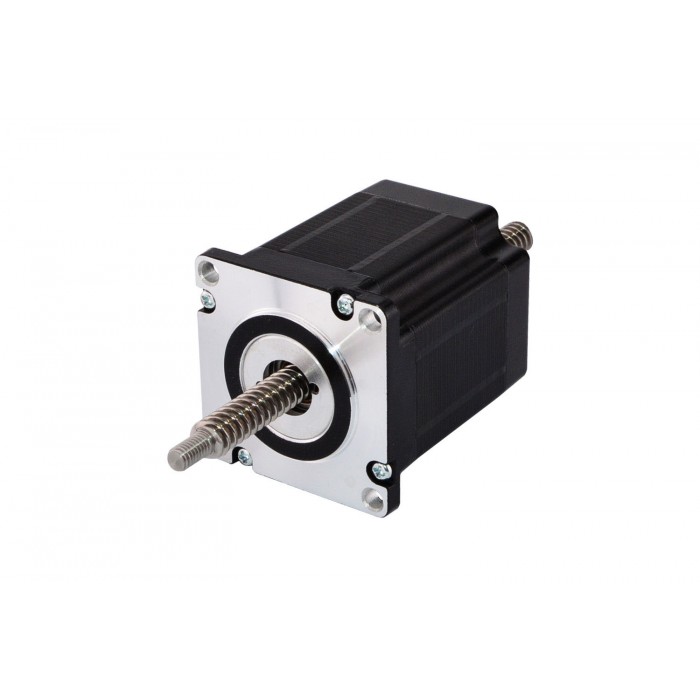

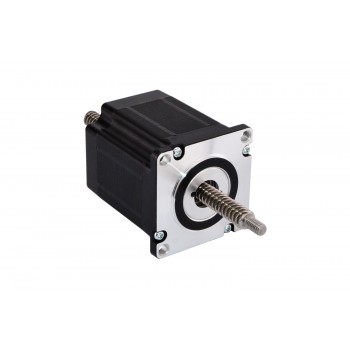

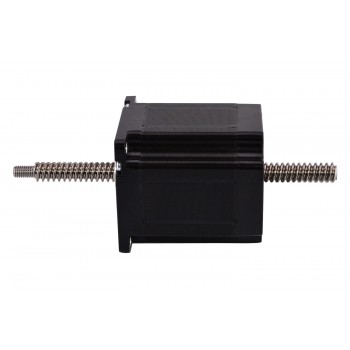

Nema 23 Non-captive 66mm Stack 2.5A Lead 10.16mm/0.4" Length 150mm

NO.:SKU:23LS26-25042-150N
Review: Post a review
Latest price:$137.30
Buy It Now:$105.61
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$102.31 $99.01 $95.71 $92.41
Add To Cart

This model is almost exactly same as Haydon Kerk 57000 series size 23 double stack non-captive stepper motor linear actuator. The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it works with a 9.53mm (0.3752") diameter 150mm (5.9055") length lead screw, the linear travel is 10.16mm (0.4") per revolution.

Electrical Specification

  • Manufacturer Part Number: 23LS26-25042-150N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 220N (300pps)
  • Rated Current/phase: 2.5A
  • Phase Resistance: 2ohms
  • Voltage: 5V
  • Inductance: 7.6mH±20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 66mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ9.53mm(0.3752")
  • Lead/Step: 0.0508mm(0.002" )
  • Lead Travel/Revolution: 10.16mm(0.4")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 958g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 23 Non-captive 66mm Stack 2.5A Lead 5.08mm/0.2" Length 150mm
Next: Nema 23 Non-captive 66mm Stack 2.5A Lead 1.5875mm/0.0625" Length 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 8.2
Minimal Thrust(N) 220
Motor Type Non-Captive
Phase Resistance(ohm) 2.1
Rated Current (A) 2.5
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 66
Frame Size(mm) 57x57
Lead Screw Diameter(mm) 9.53
Lead Screw Length(mm) 150
Lead Revolution(mm) 10.16
Linear Travel / Step(mm) 0.0508
No. of Lead 4
Lead Length(mm) 300
