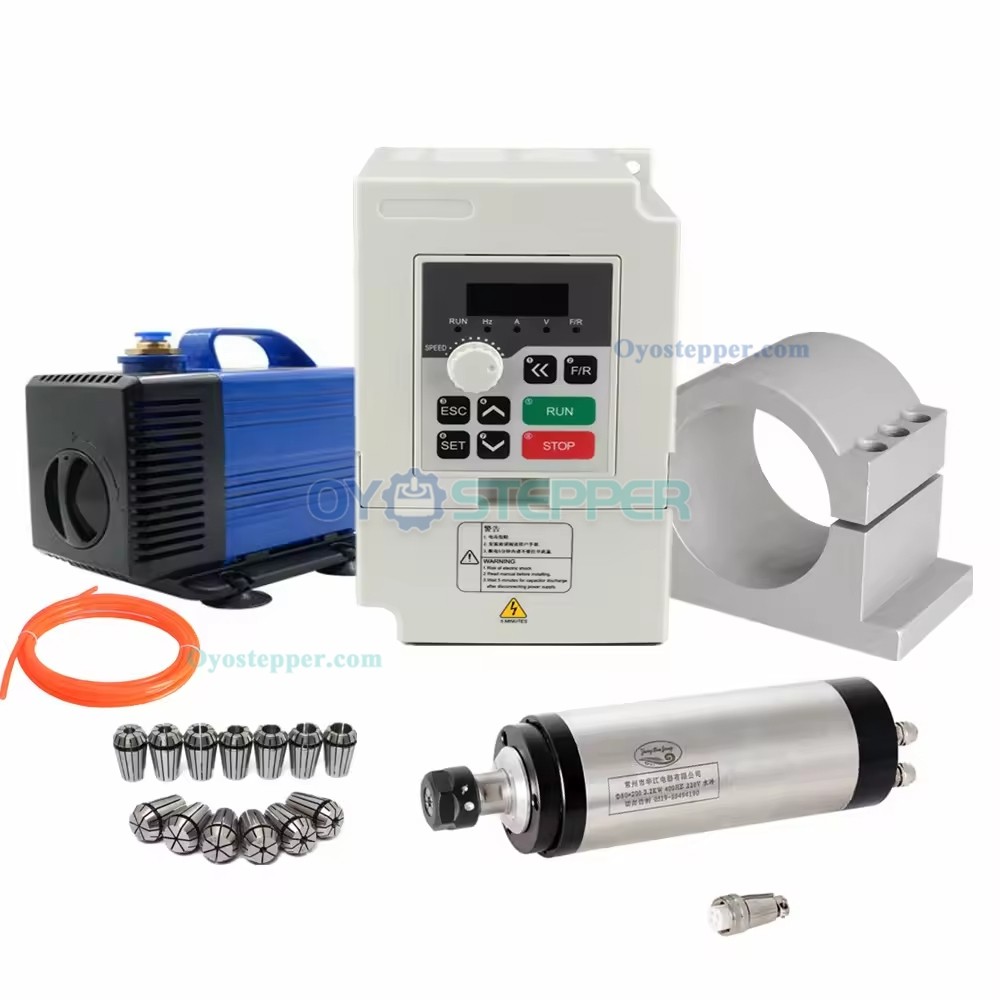

2.2KW ER20 Water Cooled Spindle Motor Kit 24000rpm 220V/380V Motorized Spindle Motor with Water Pump

2.2KW ER20 Water Cooled Spindle Motor Kit 24000rpm 220V/380V Motorized Spindle Motor with Water Pump

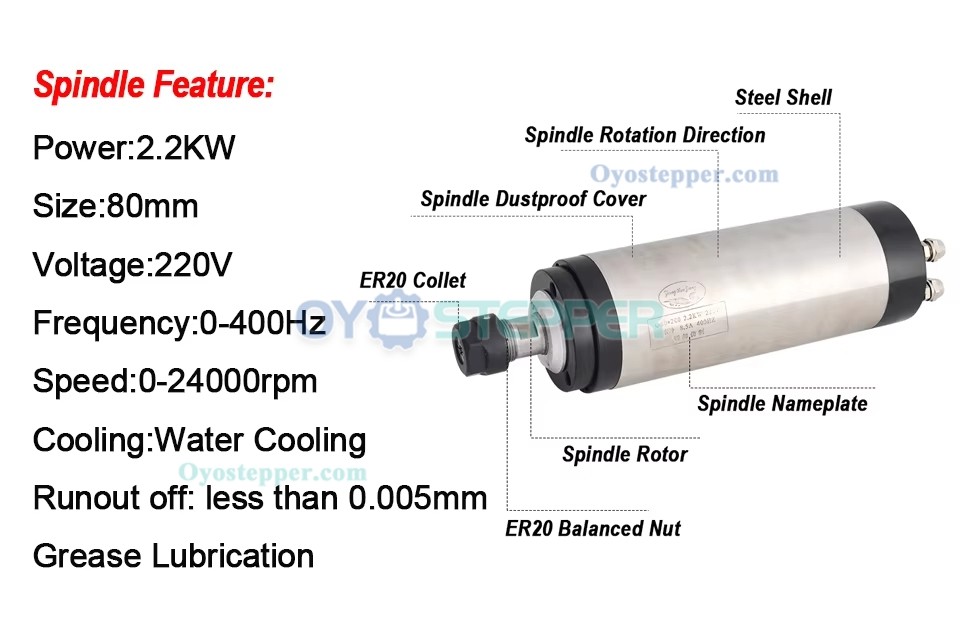

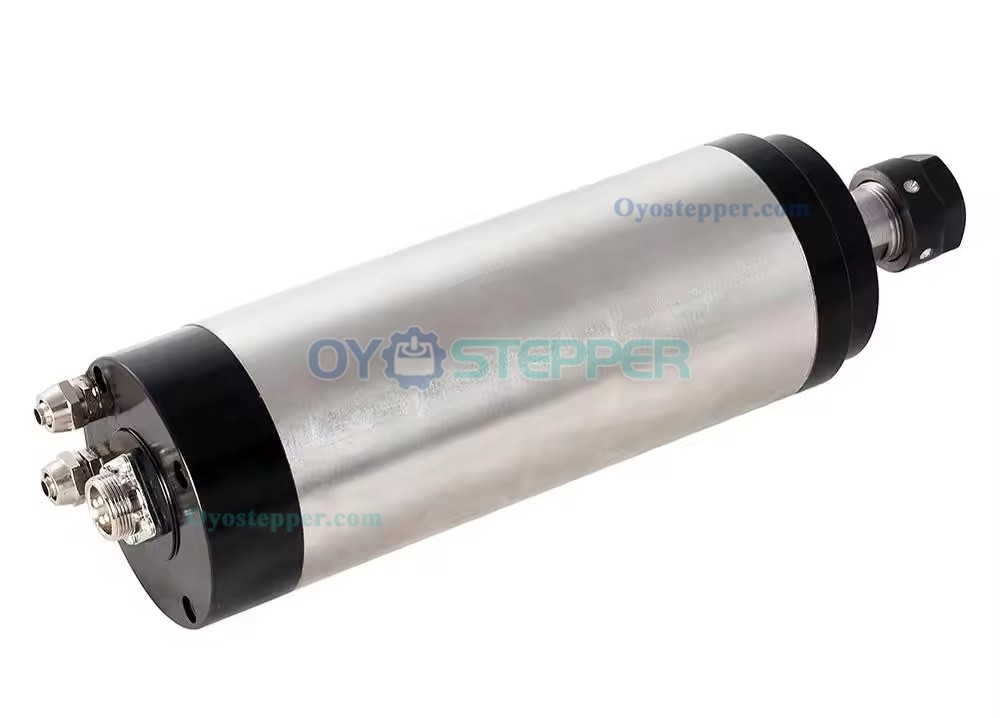

Spindle Motor Technical Parameter:

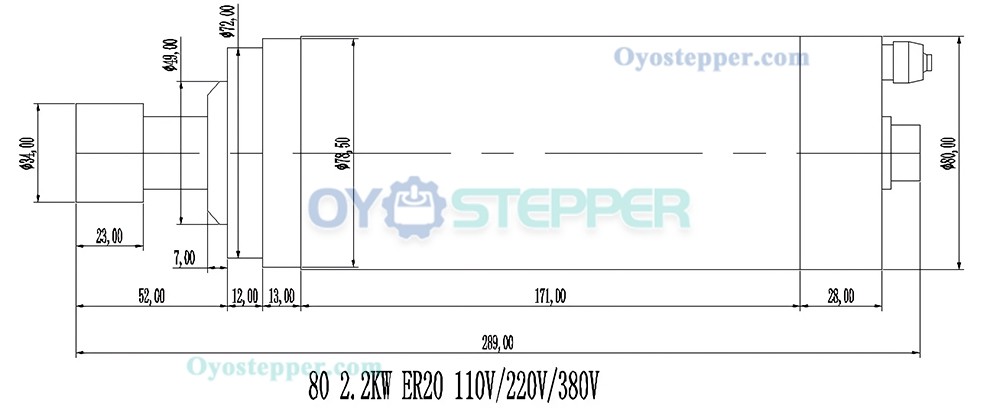

Model: Φ80 * 2.2KW ER20 Water Cooling

Rated Power: 2.2 KW

Voltage: 220V (110V/380V optional)

Rated Current: 8.5A

Operating Frequency: 400 Hz

Cooling Type: Water Cooling

Collet System: ER20

Connection Type: Water cooling ports

Net Weight: 5.2 KG

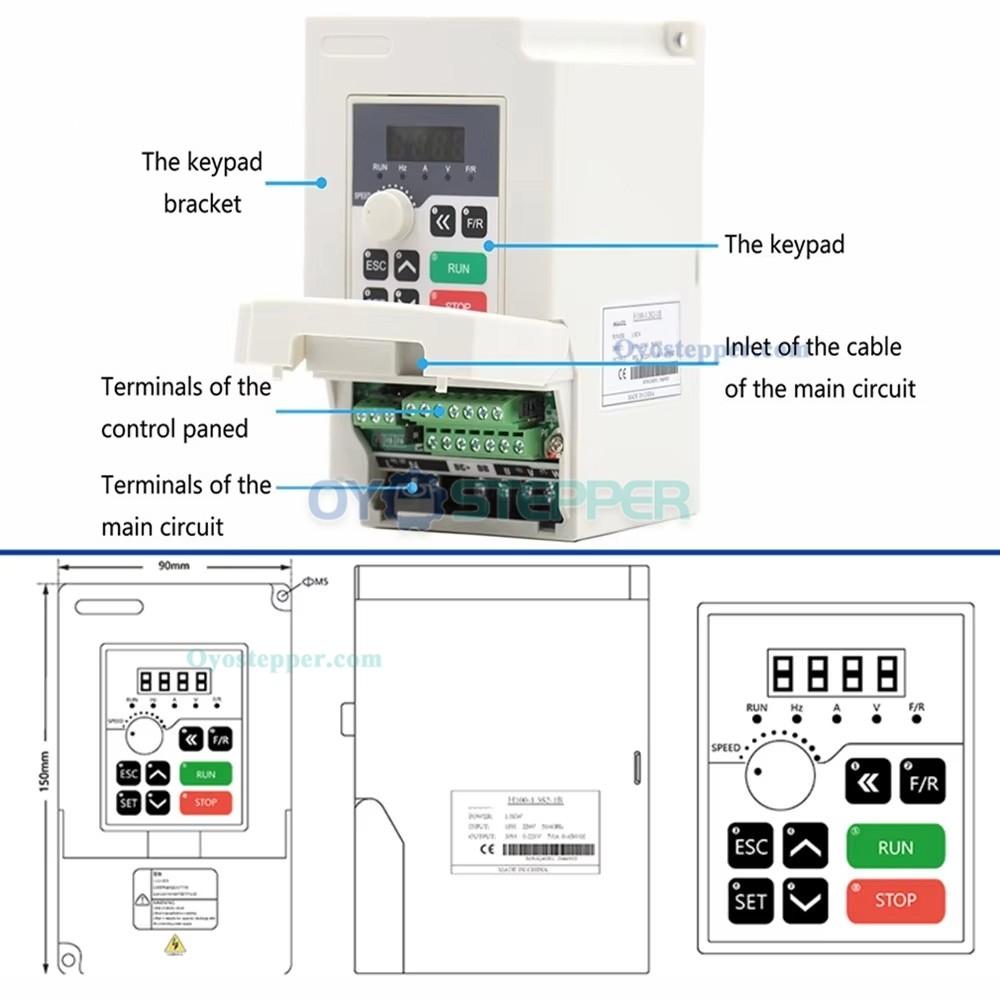

VFD Inverter Specification:

Model: H100-2.2C2/S2/T4

Matched Motor Power: 2.2 KW

Input Voltage: 220V (110V/380V optional)

Rated Input Current: 11A (for 220V)

Input Power Frequency: 50 Hz / 60 Hz

Output Frequency Range: 0 - 650 Hz

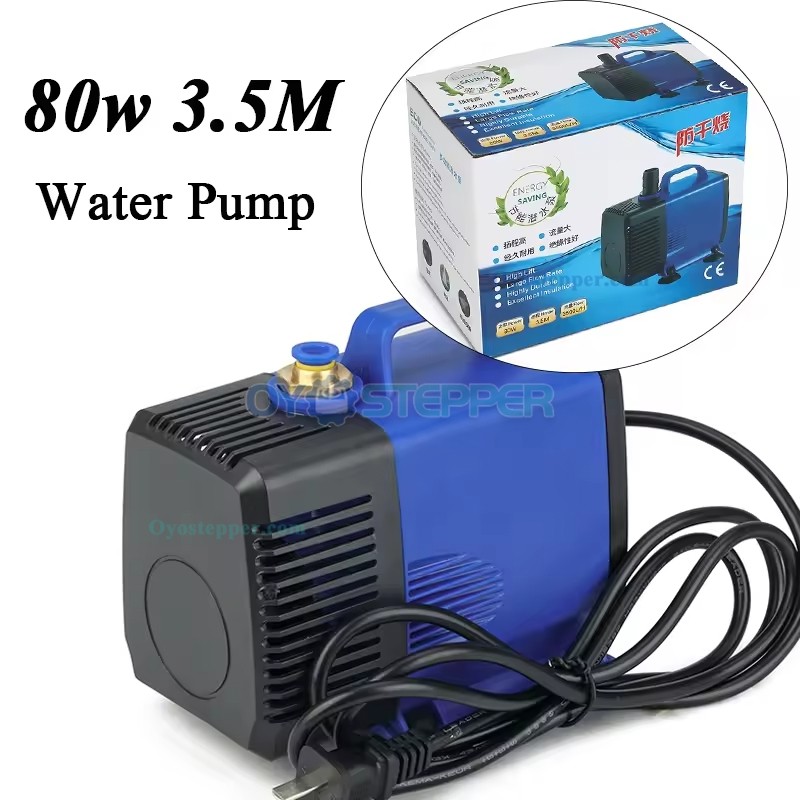

Water Pump Specification:

Model: 80W 3.5M

Power: 80 W

Head: 3.5 Meters

Voltage: 220V

Dimensions (Approx.): 92mm (W) * 79mm (D) * 145mm (H);
