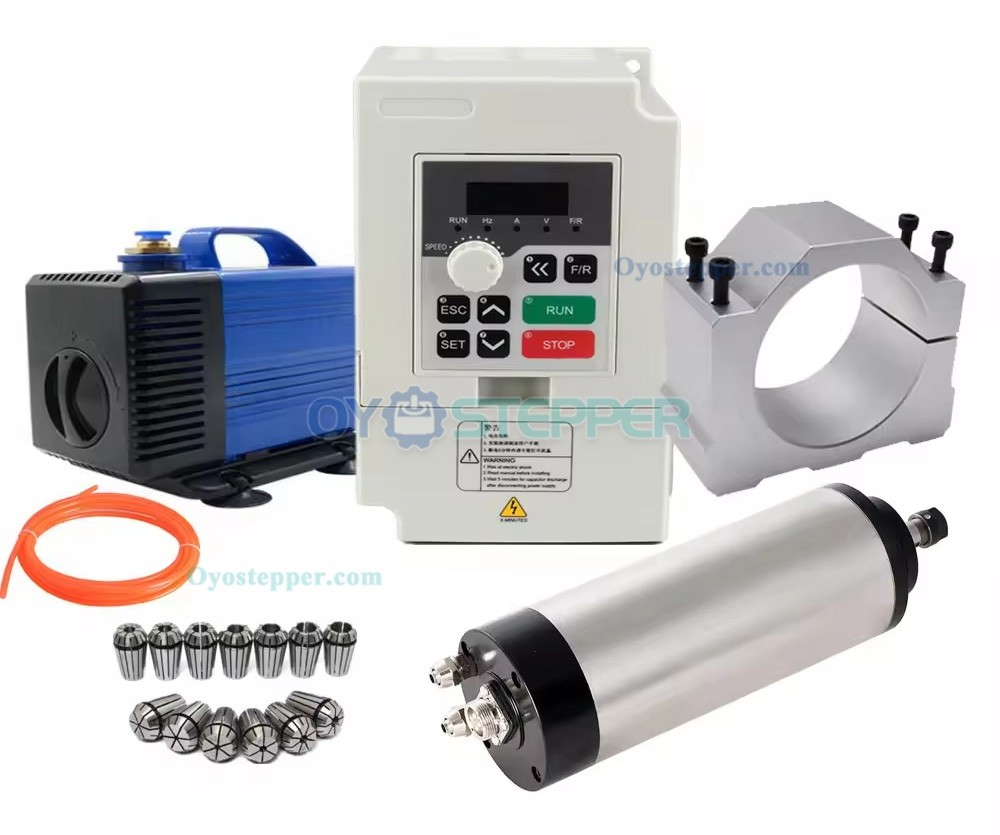

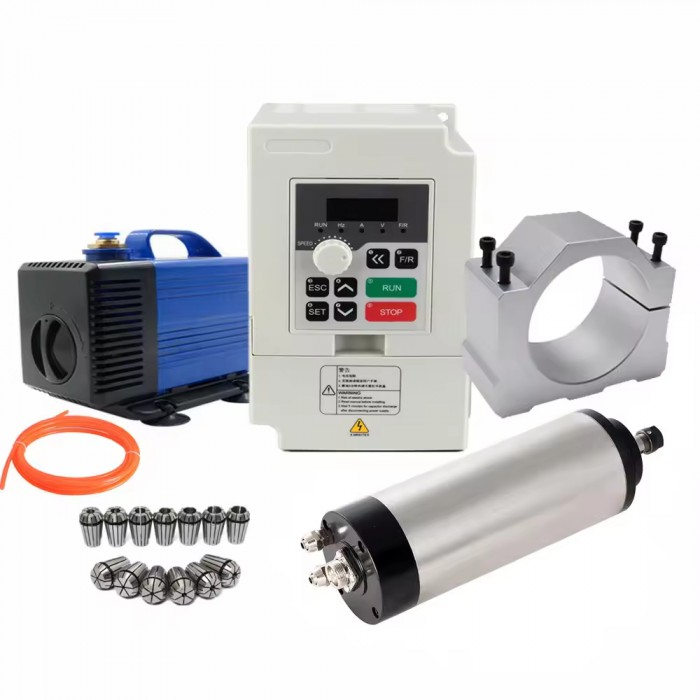

1.5KW 110V / 220V CNC Spindle Motor Kit with VFD Inverter+80mm Spindle Mount+80W Water Pump

1.5KW 110V / 220V CNC Spindle Motor Kit with VFD Inverter+80mm Spindle Mount+80W Water Pump

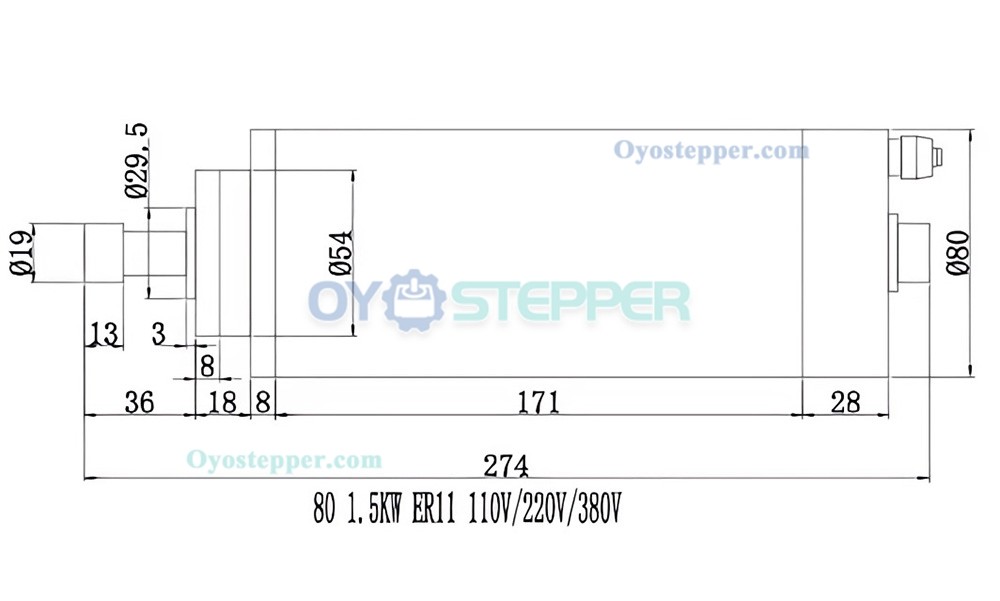

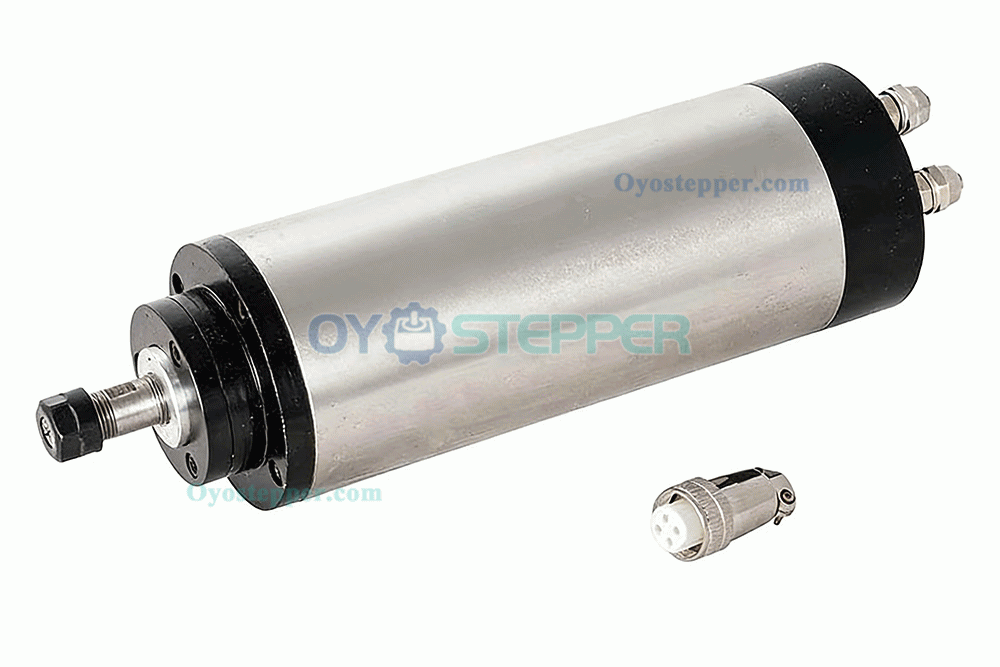

Spindle Motor Specification:
Model:1.5KW ER11 Spindle Motor
Power: 1.5KW
Operating Speed: 24000 RPM
Voltage: 110V / 220V
Joint of Nose: ER11
Weight: 5 KG
Frequency: 400 HZ
Cooling Type: Water Cooling

 Our motor with an 80mm diameter can also be equipped with an ER16 chuck. Please contact us if needed.

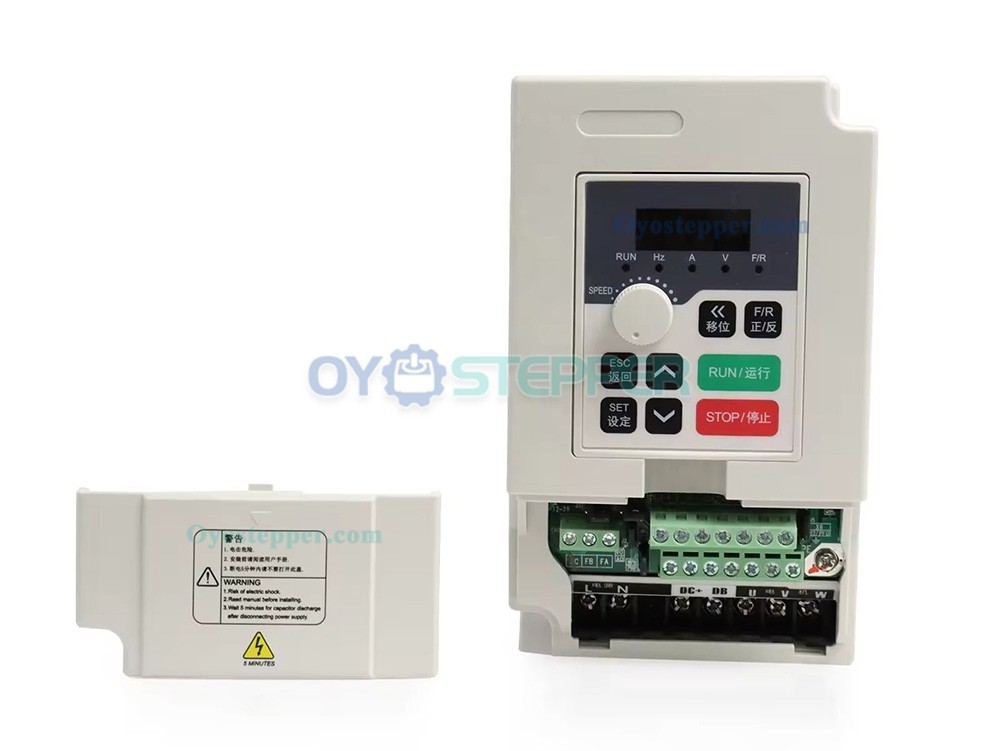

VFD Inverter Specification:
Model: H100-1.5C2 / H100-1.5S2
Power: 1.5KW
Voltage: 110V / 220V
Input: 1PH 110V 50/60HZ / 1PH 220V 50/60HZ
Output: 3PH 110V 0-1000HZ / 3PH 220V 0-1000HZ
Weight: 1.5 KG

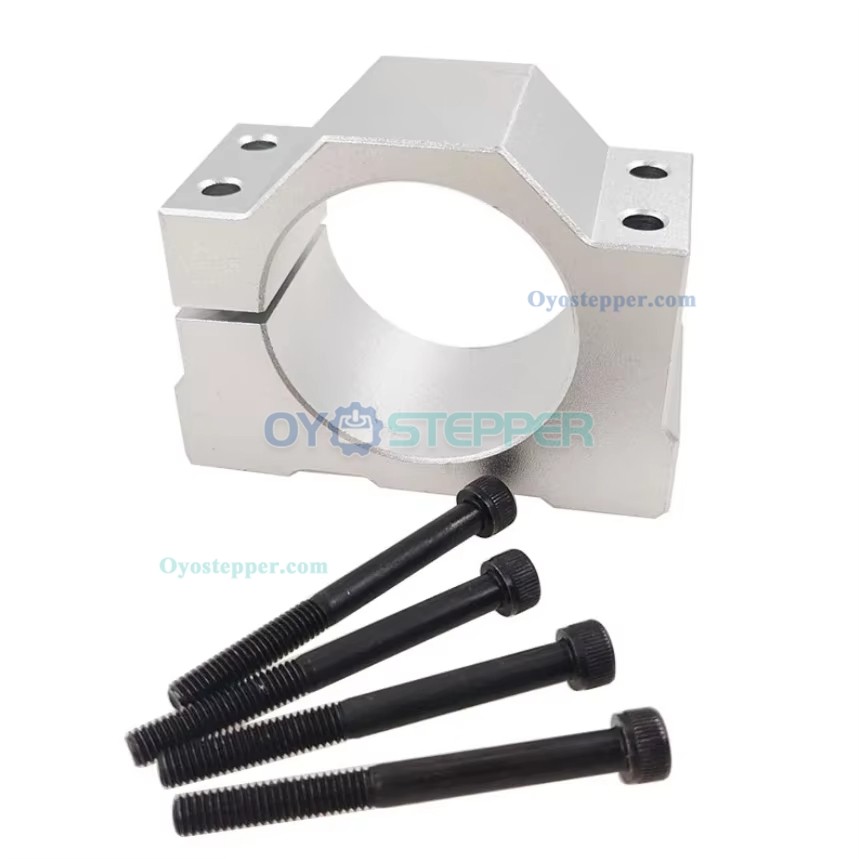

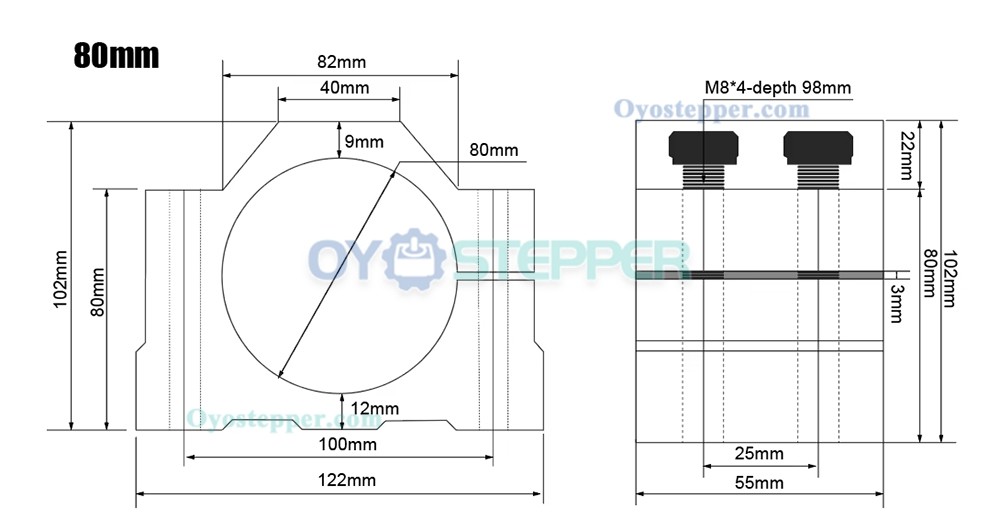

Spindle Clamp
Included: 1PCS 80MM Clamp, 4PCS Screws

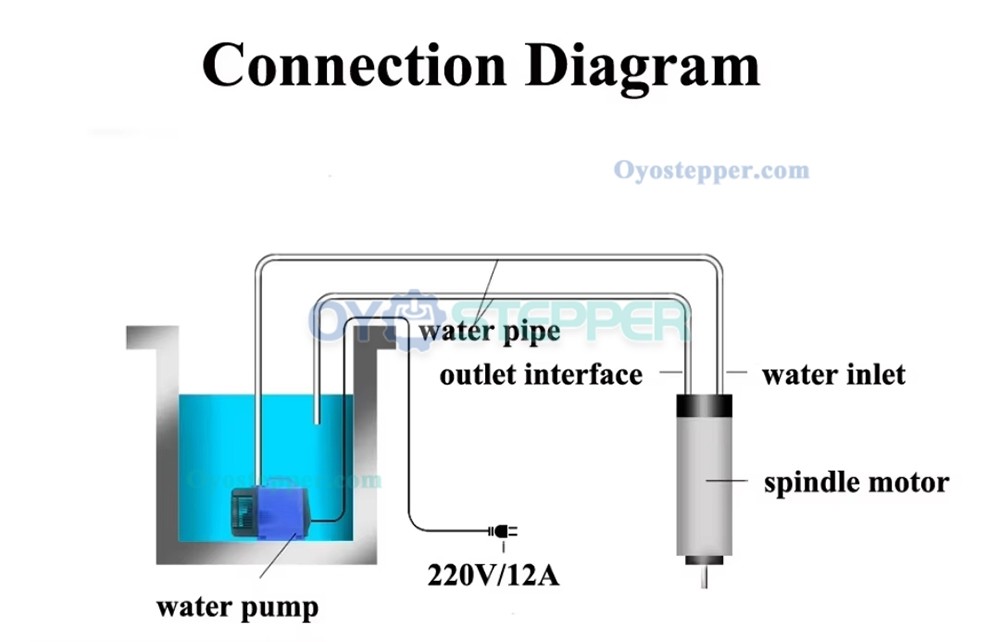

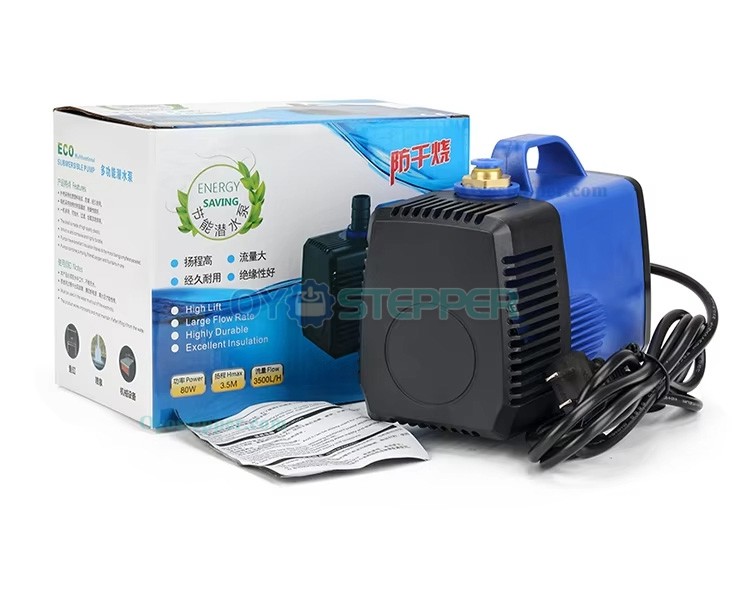

Water Pump & Pipe
Water Pump: 80W 3.5M 220V Water Pump
Water Pipe: 5 Meters Water Pipe

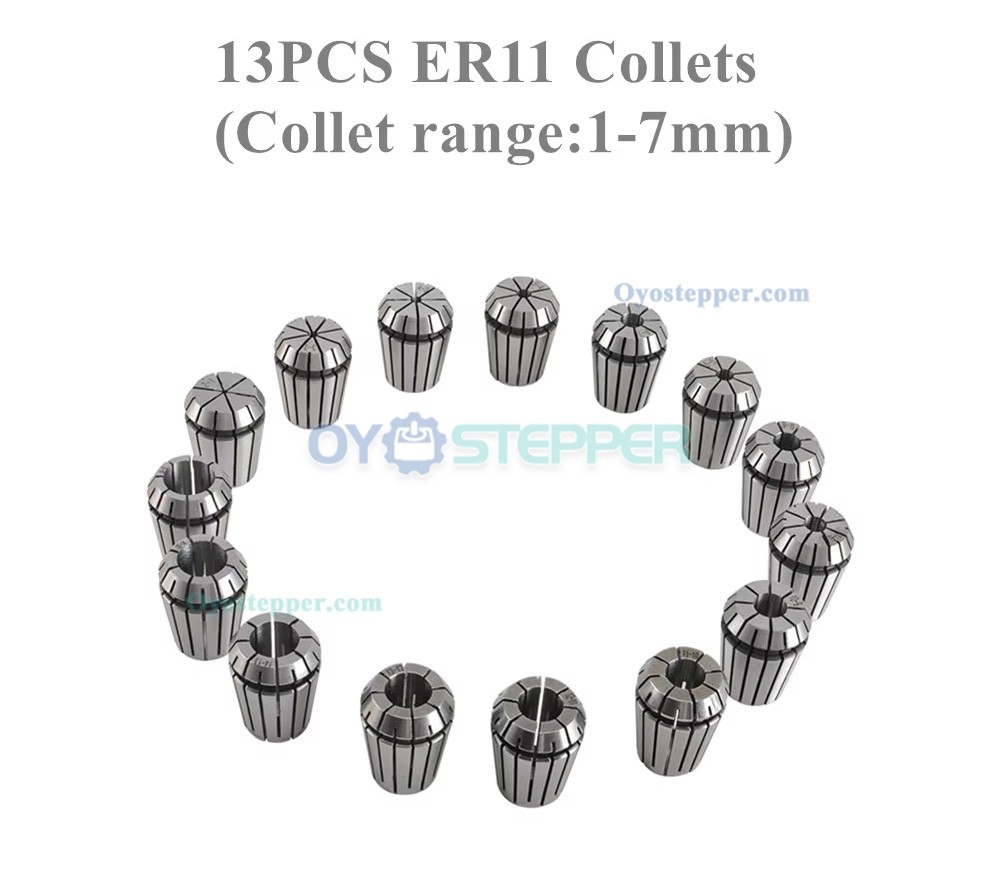

Collet Set:
Included: 13pcs ER11 Collets Set
Sizes: 1mm, 2mm, 3mm, 3.175mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.35mm, 6.5mm, 7mm;
