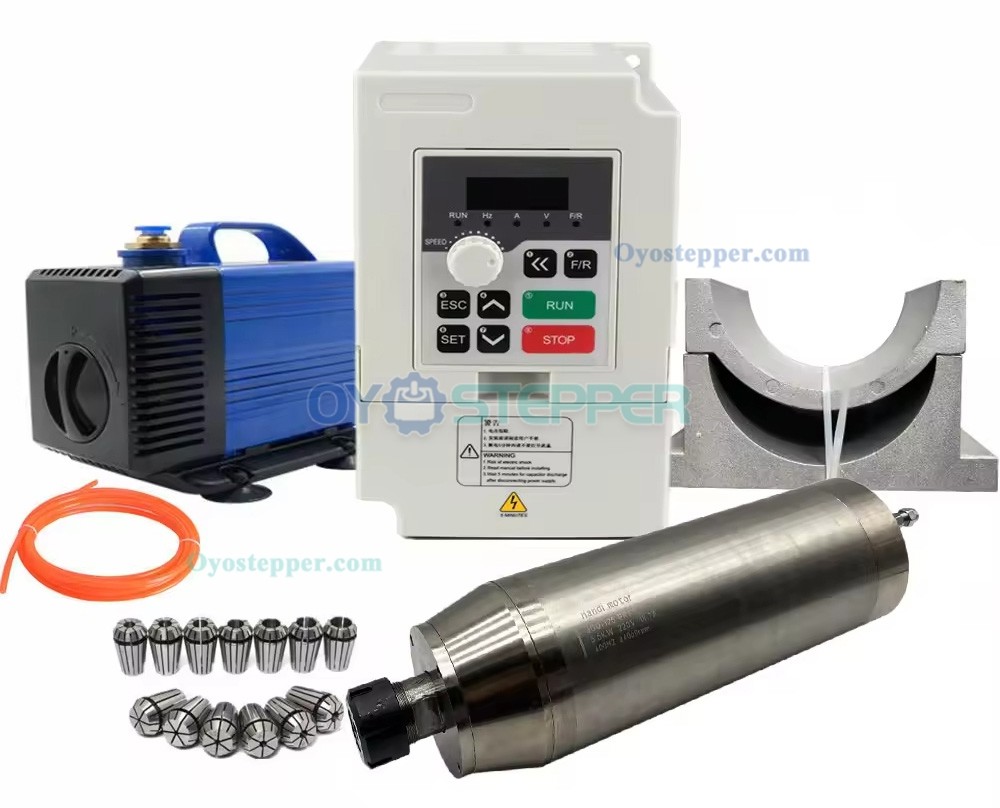

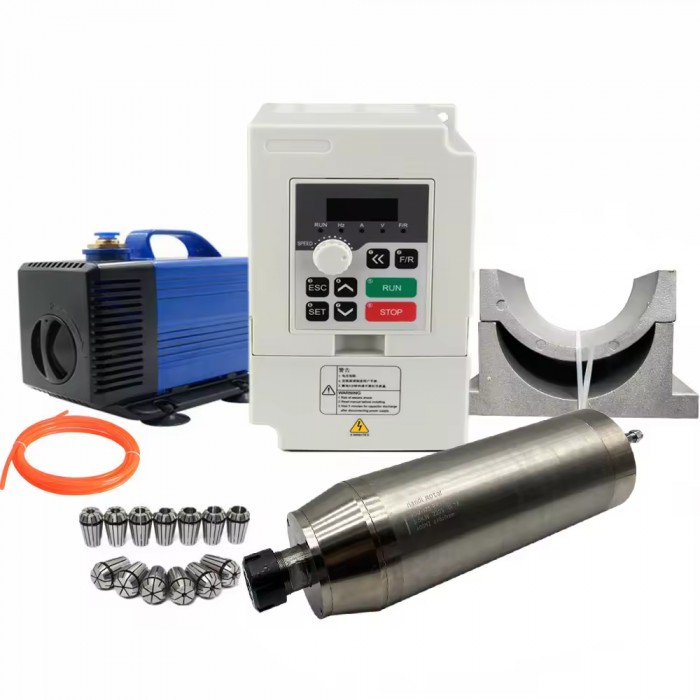

5.5KW 220V / 380V Water Cooled Spindle Motor with 5.5kw VFD 125mm Clamp ER32 Collets
5.5KW 220V / 380V Water Cooled Spindle Motor with 5.5kw VFD 125mm Clamp ER32 Collets
Technical Parameters:

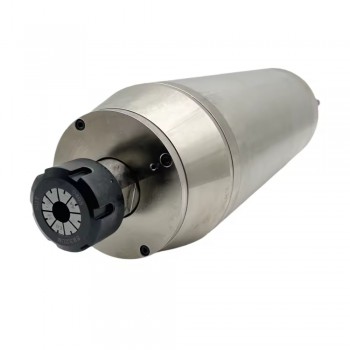

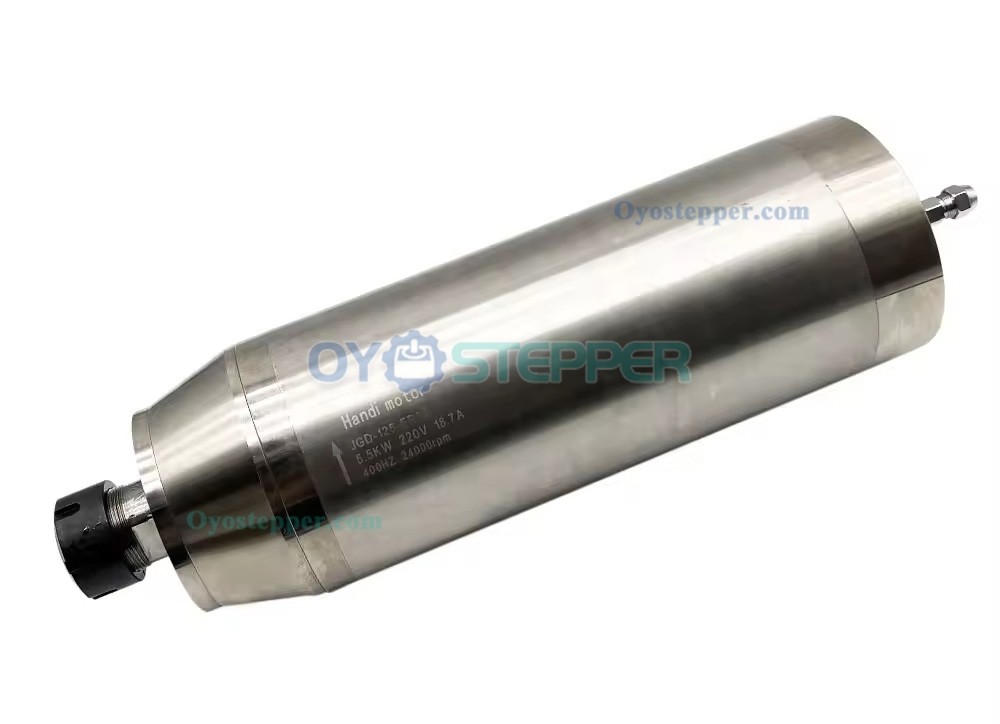

Spindle Motor Specification:
Model:JGD-125-ER32
Rated Power: 5.5 KW
Operating Voltage: 220V / 380V (Dual Voltage)
Rated Current: 18.7A (for 220V) / 11.3A (for 380V)
Operating Frequency: 300 Hz / 400 Hz (Dual Frequency)
Corresponding Speed: 18,000 RPM (300Hz) / 24,000 RPM (400Hz)

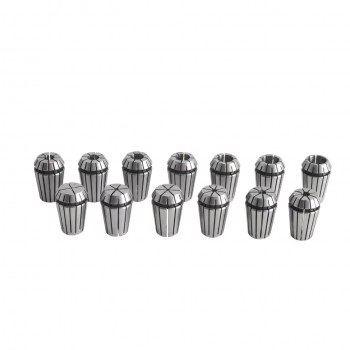

Collet System: ER32
Cooling Type: Water Cooling

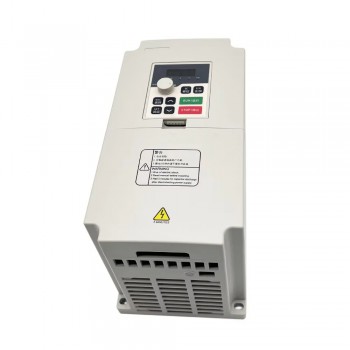

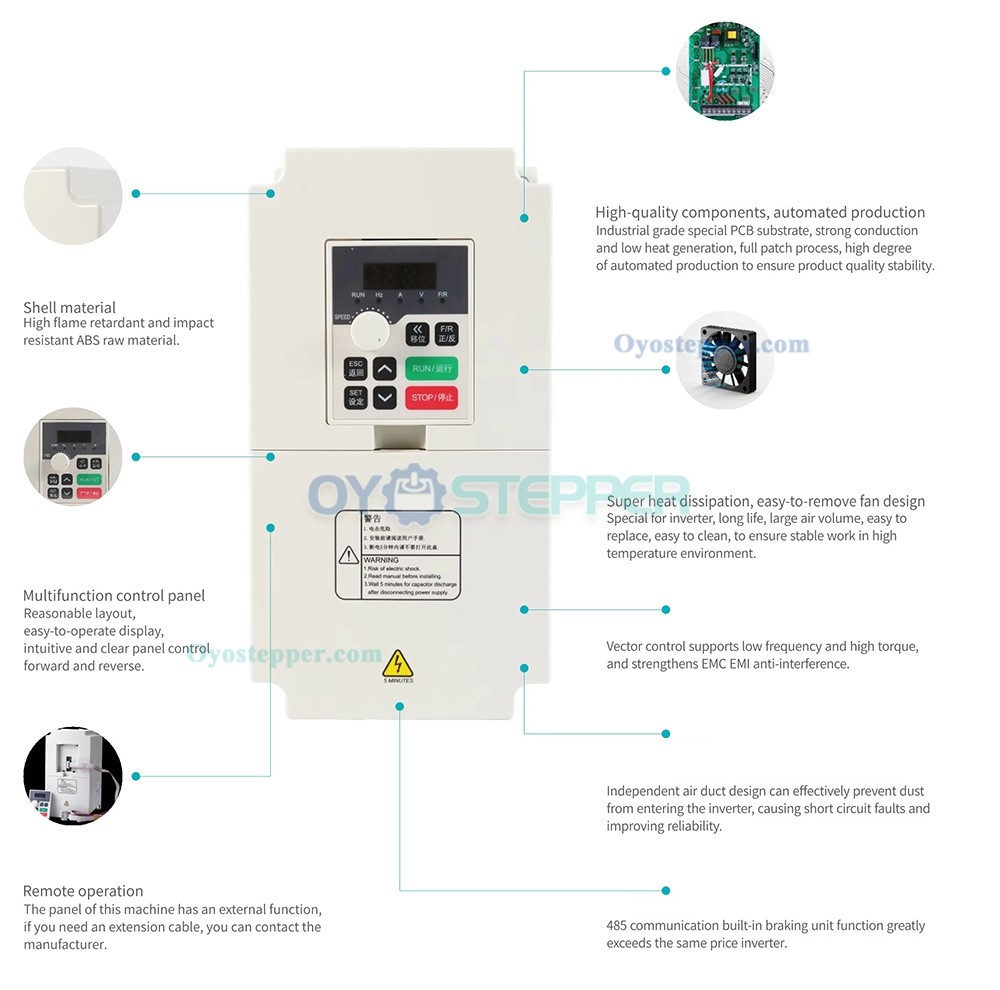

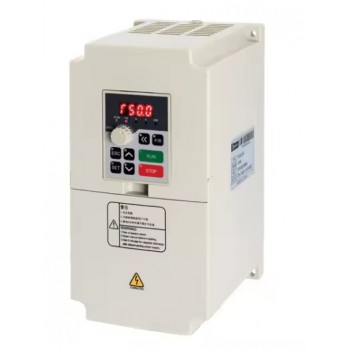

VFD Inverter Specification:
Model: H100-5.5S2 / H100-5.5T4
Rated Power: 5.5 KW
Input Power Supply: 1-Phase 220V 50/60Hz (S2)
3-Phase 380V 50/60Hz (T4)
Output (to Spindle): 3-Phase 220V / 3-Phase 380V
Output Frequency Range: 0 - 1000 Hz
Weight: 3.5 kg

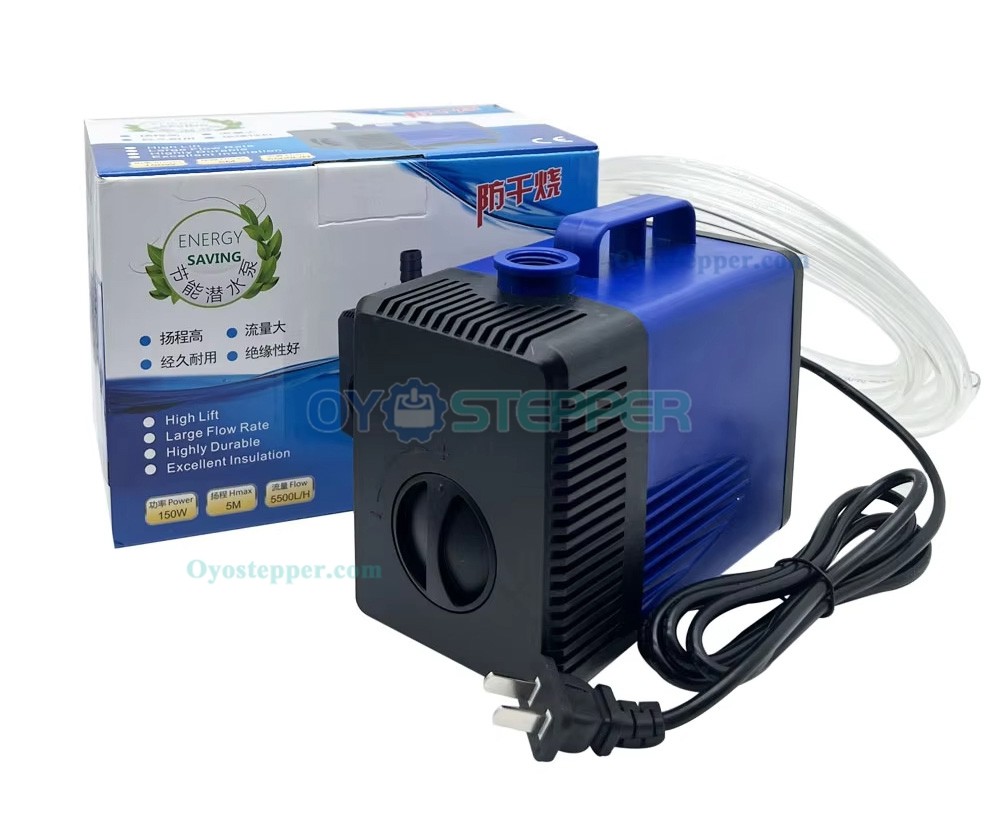

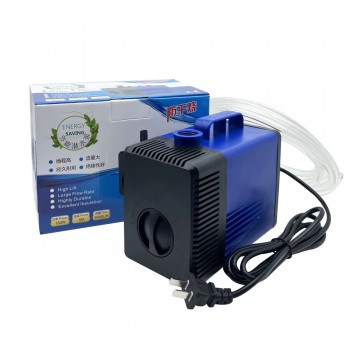

Water Cooling System:
Pump: 100W, 220V
Pipe: 5 Meters
.jpg "5.5KW 220V / 380V Water Cooled Spindle Motor with 5.5kw VFD 125mm Clamp ER32 Collets")
.jpg "5.5KW 220V / 380V Water Cooled Spindle Motor with 5.5kw VFD 125mm Clamp ER32 Collets")
.jpg "5.5KW 220V / 380V Water Cooled Spindle Motor with 5.5kw VFD 125mm Clamp ER32 Collets")
.jpg "5.5KW 220V / 380V Water Cooled Spindle Motor with 5.5kw VFD 125mm Clamp ER32 Collets")
(1).jpg "5.5KW 220V / 380V Water Cooled Spindle Motor with 5.5kw VFD 125mm Clamp ER32 Collets")
Options:
.jpg "5.5KW 220V / 380V Water Cooled Spindle Motor with 5.5kw VFD 125mm Clamp ER32 Collets")
| Spindle Motor Specification | |
|---|---|
| Collet Size | ER32 |
| Cooling | Water cooled |
| Current(A) | 18.7 / 11.3 |
| Shape | Round |
| Speed(RPM) | 18,000 / 24,000 |
| Voltage(VAC) | 220 / 380 |
| Power(Kw) | 5.5 |
