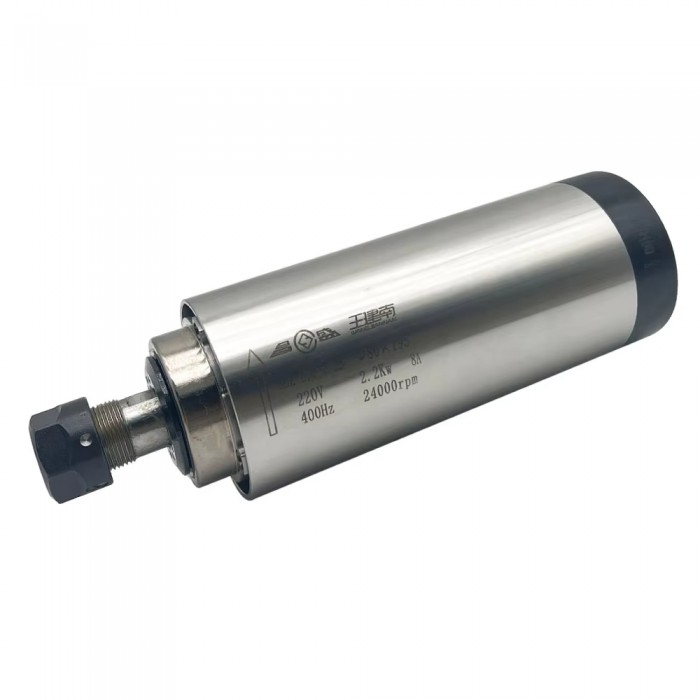

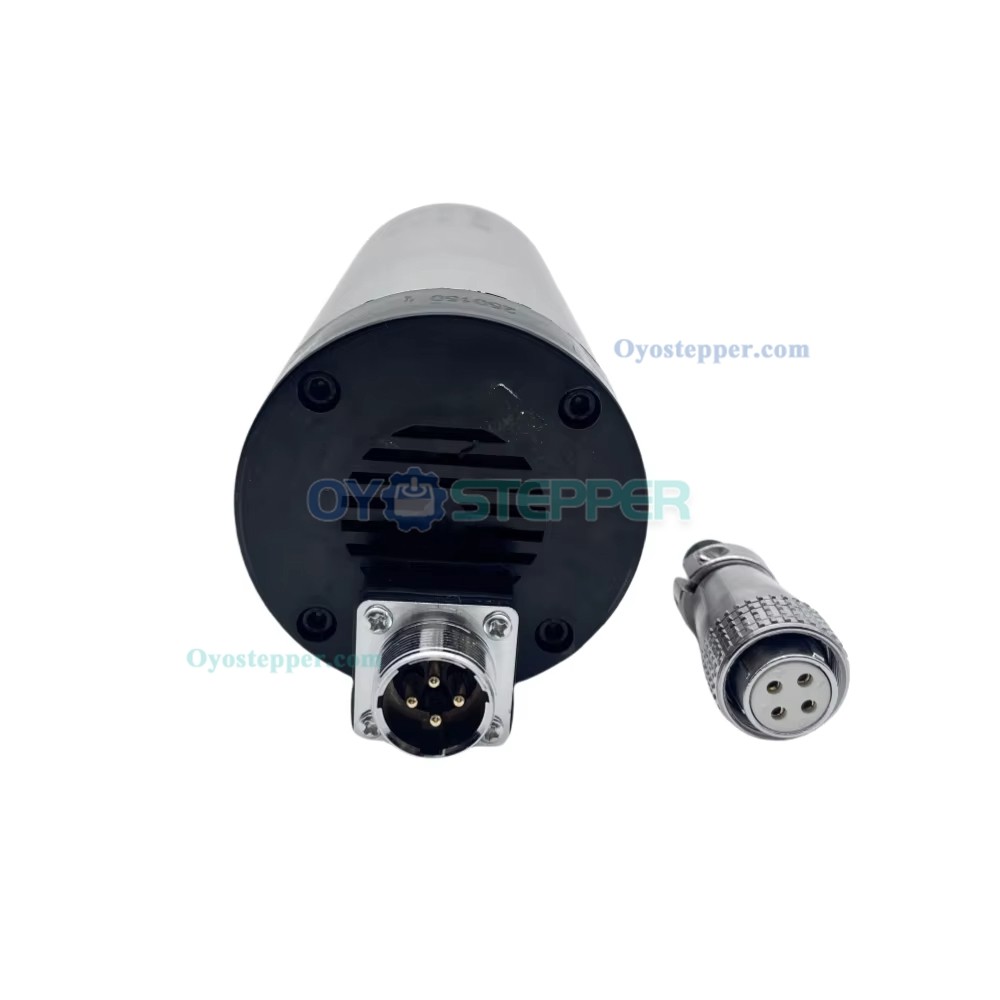

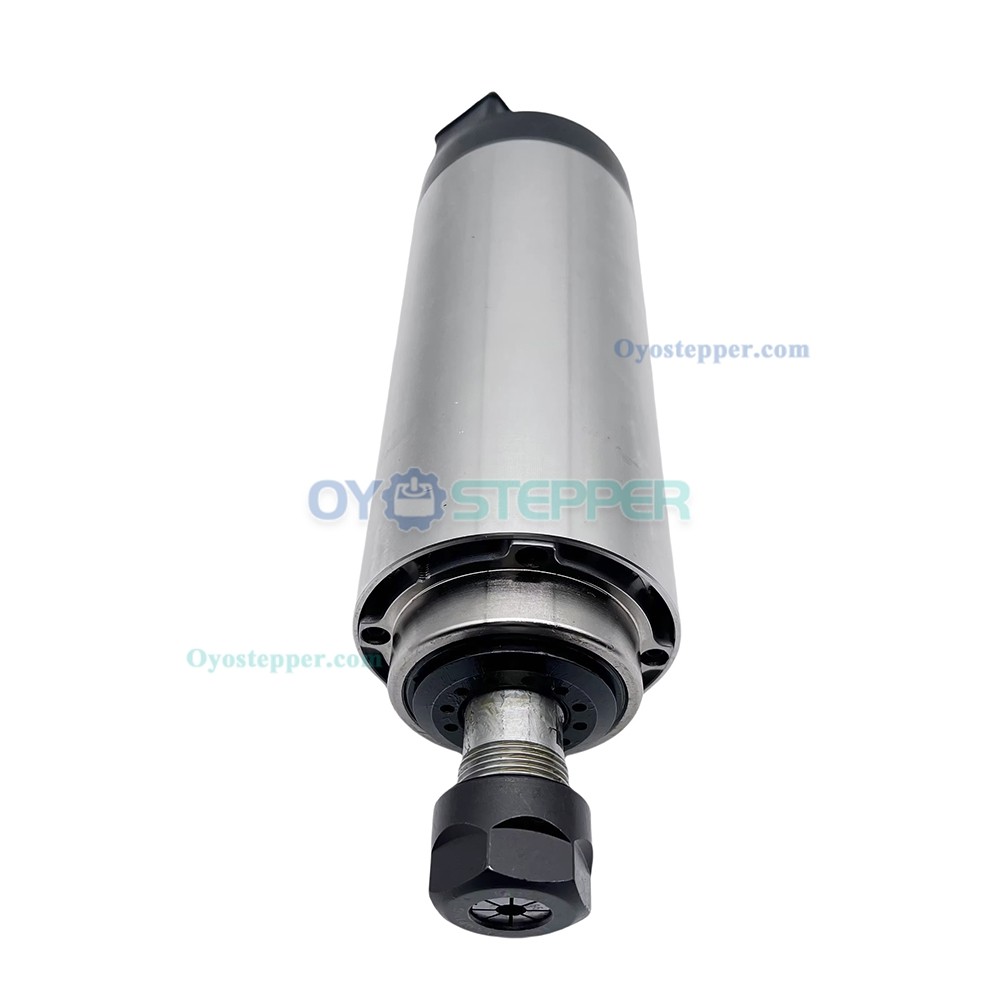

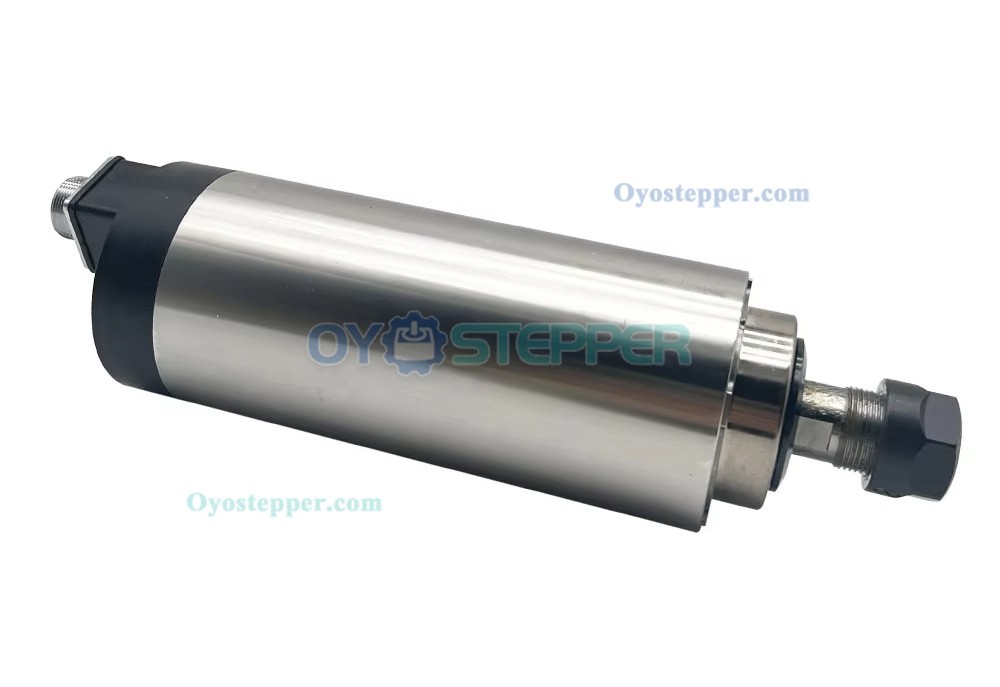

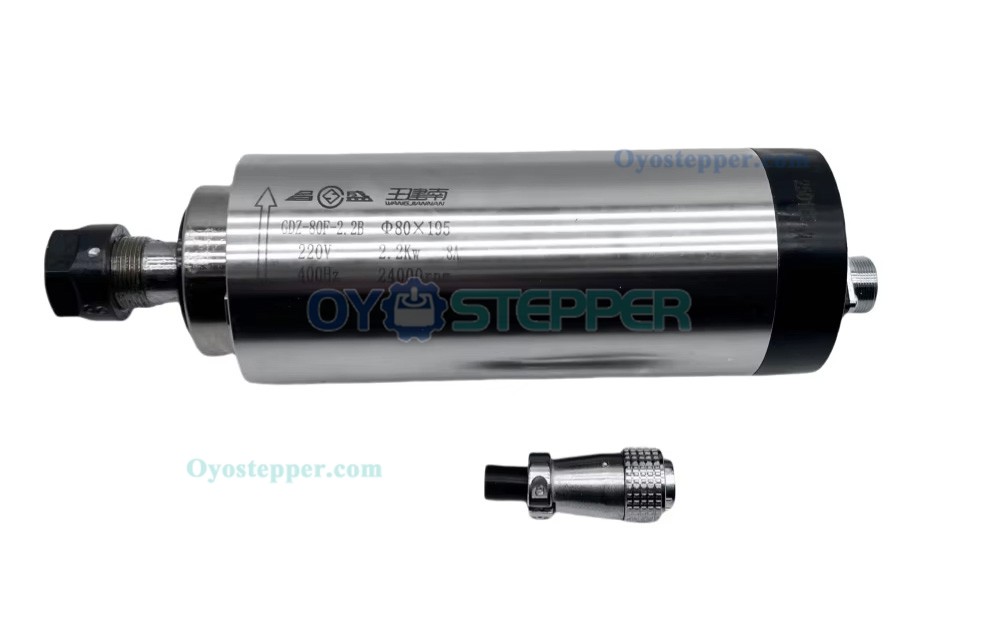

2.2KW CNC Spindle 80mm ER20 400Hz 24000RPM 220V/380V Air Cooled Spindle Motor for CNC Router
2.2KW CNC Spindle 80mm ER20 400Hz 24000RPM 220V/380V Air Cooled Spindle Motor for CNC Router
Specifications:
Model: GDZ-80F-2.2B
Rated Power:2.2KW
Rated Speed: 24000 RPM
Rated Voltage:220V/380V
Rated Current:5A
Frequency: 400 Hz
Collet Type:ER20
Maximum torque:0.8nm
Cooling Method: Air Cooling
Lubrication: Grease
Diameter:80mm
Weight:7KG
(1).jpg "2.2KW CNC Spindle 80mm ER20 400Hz 24000RPM 220V/380V Air Cooled Spindle Motor for CNC Router")
(1).jpg "2.2KW CNC Spindle 80mm ER20 400Hz 24000RPM 220V/380V Air Cooled Spindle Motor for CNC Router")
(1).jpg "2.2KW CNC Spindle 80mm ER20 400Hz 24000RPM 220V/380V Air Cooled Spindle Motor for CNC Router")
(1).jpg "2.2KW CNC Spindle 80mm ER20 400Hz 24000RPM 220V/380V Air Cooled Spindle Motor for CNC Router")
.jpg "2.2KW CNC Spindle 80mm ER20 400Hz 24000RPM 220V/380V Air Cooled Spindle Motor for CNC Router")
(1).jpg "2.2KW CNC Spindle 80mm ER20 400Hz 24000RPM 220V/380V Air Cooled Spindle Motor for CNC Router")
(1).jpg "2.2KW CNC Spindle 80mm ER20 400Hz 24000RPM 220V/380V Air Cooled Spindle Motor for CNC Router")
| Spindle Motor Specification | |
|---|---|
| Bearing Lubrication | Grease |
| Collet Size | ER20 |
| Cooling | Air Cooled |
| Current(A) | 5 |
| Diameter(mm) | 80 |
| Frequency(Hz) | 400 |
| Shape | Round |
| Speed(RPM) | 24000 |
| Voltage(VAC) | 220 / 380 |
| Weight(Kg) | 7 |
| Power(Kw) | 2.2 |
