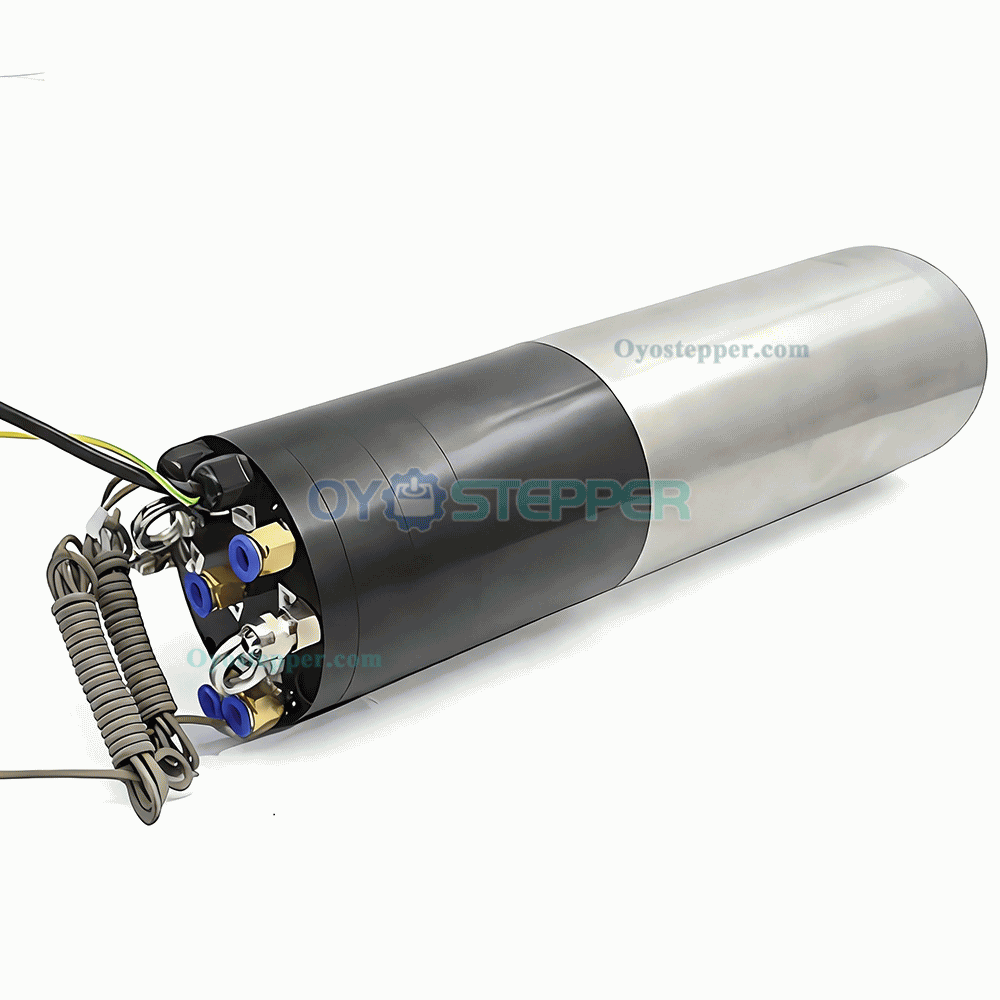

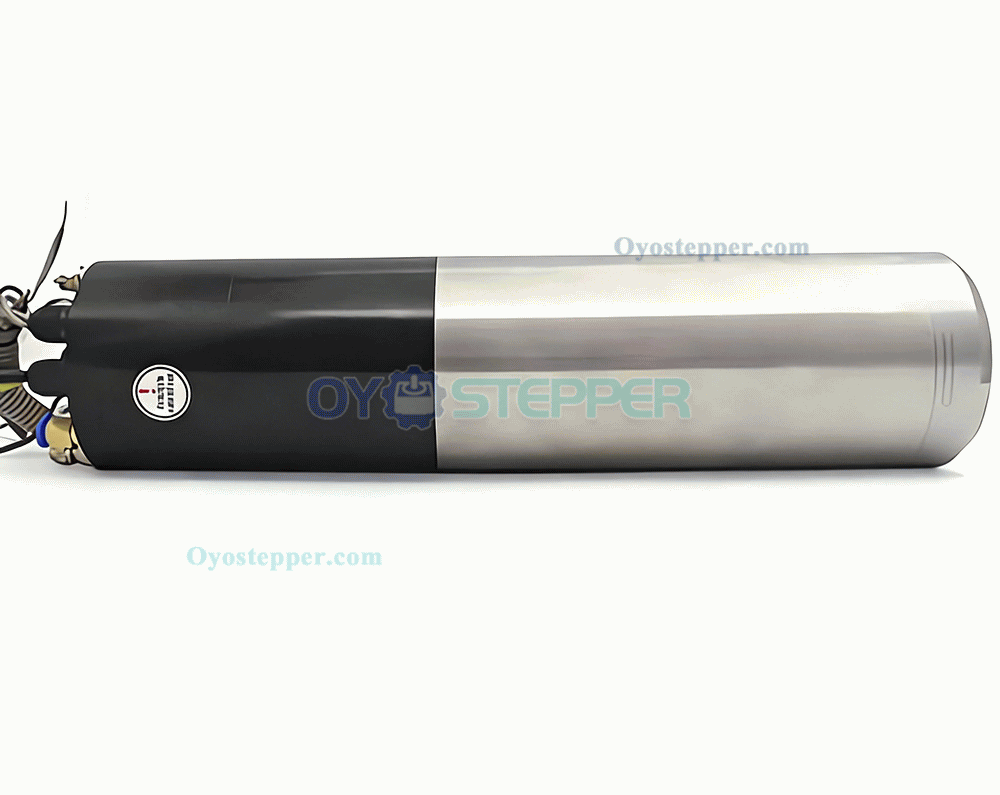

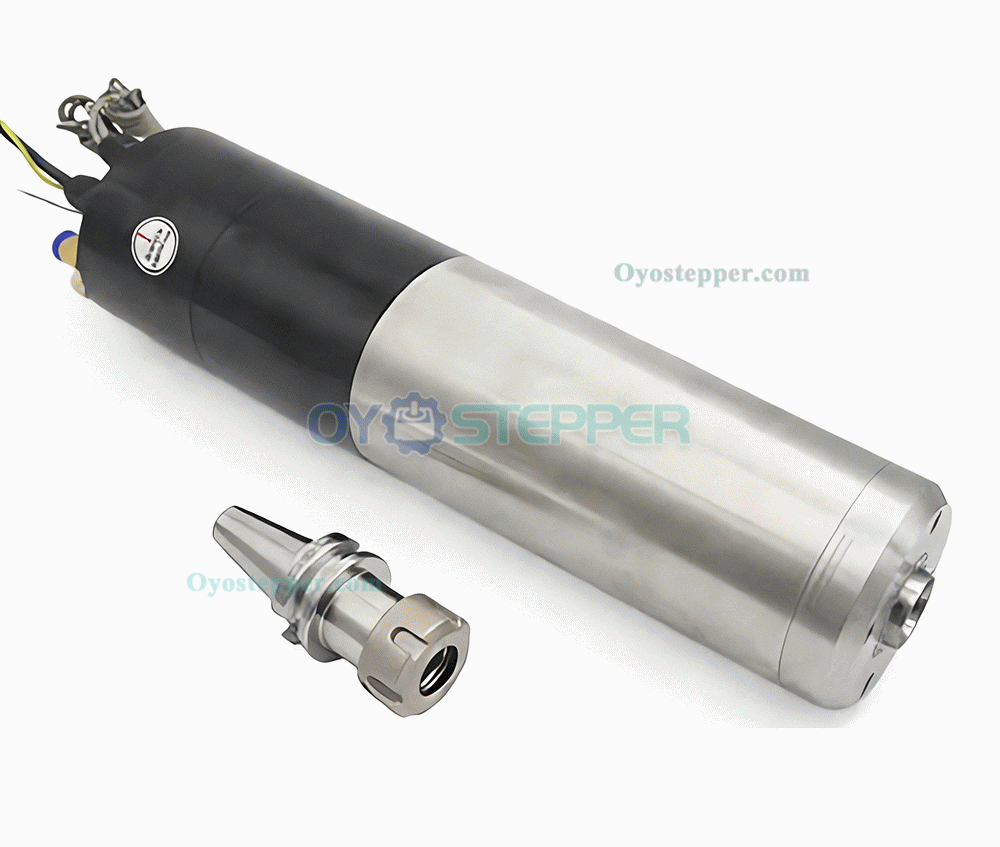

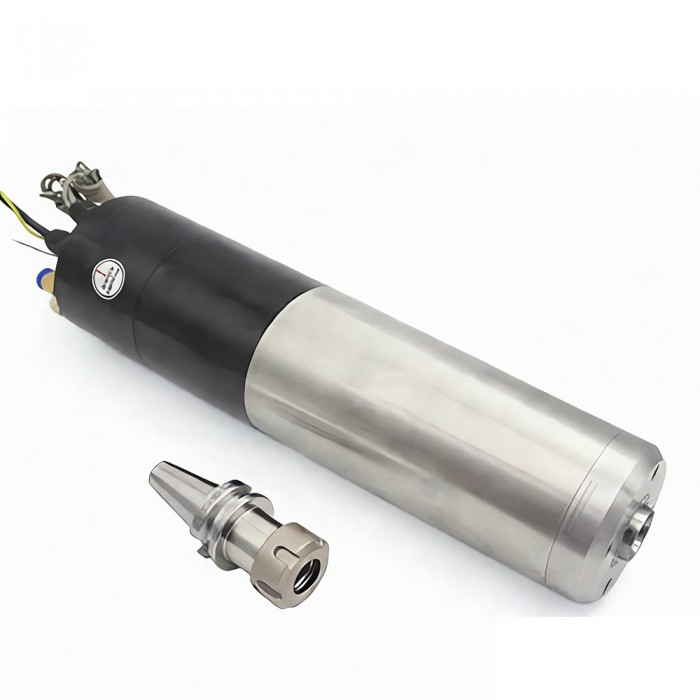

3KW BT30 220V 100mm ATC Water Cooled Spindle Motor 24000rpm 400Hz for CNC Router Machine

3KW BT30 220V 100mm ATC Water Cooled Spindle Motor 24000rpm 400Hz for CNC Router Machine

Parameter :
Model:RTM100-30-24Z/2.2
Voltage:220 V
Current:6.7A
Rated speed:15000 rpm
Maximum speed:24000 rpm
Rated frequency:250 Hz
Maximum frequency:400 Hz
Rated torque:1.4 Nm
Peak torque:1.9 Nm
Rated power:2.2 KW
Peak power:3.0 KW
Motor poles:2 poles

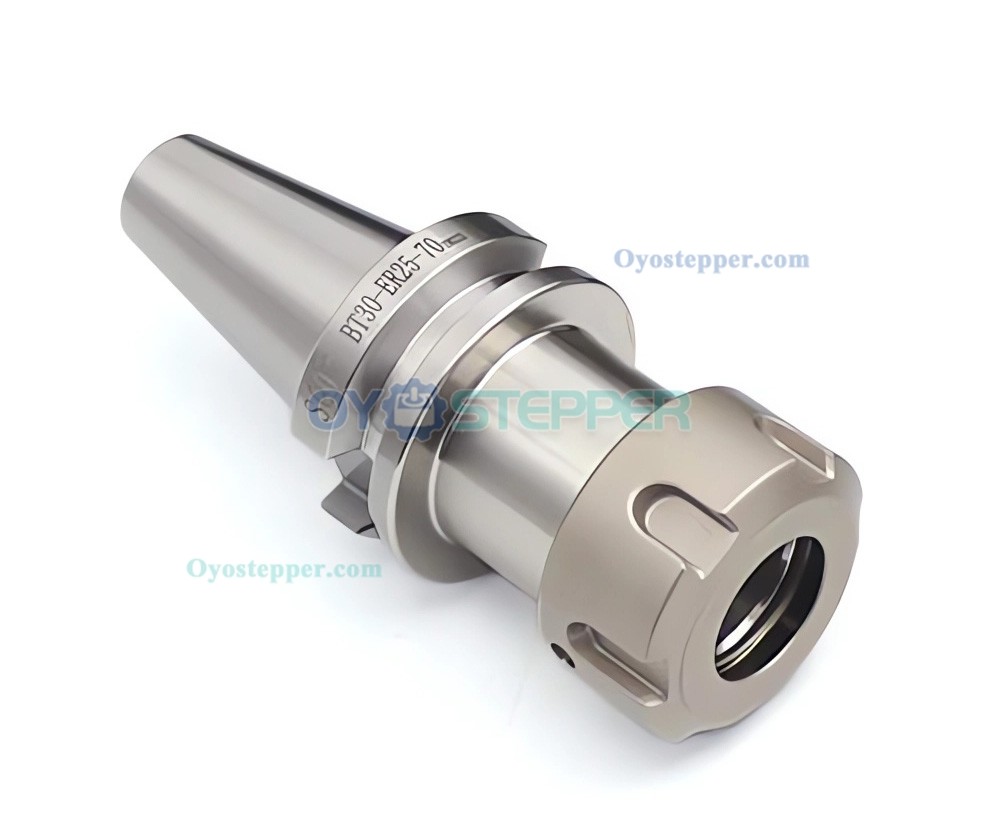

Joint of nose:BT30

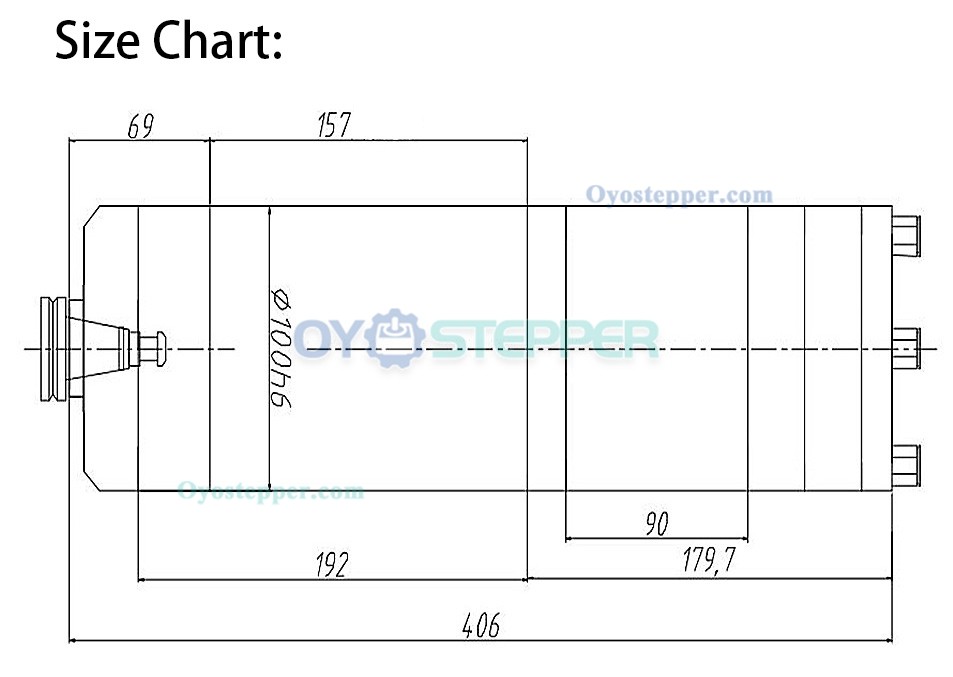

Diameter:100mm
Body length:409mm
Weight:20Kg
