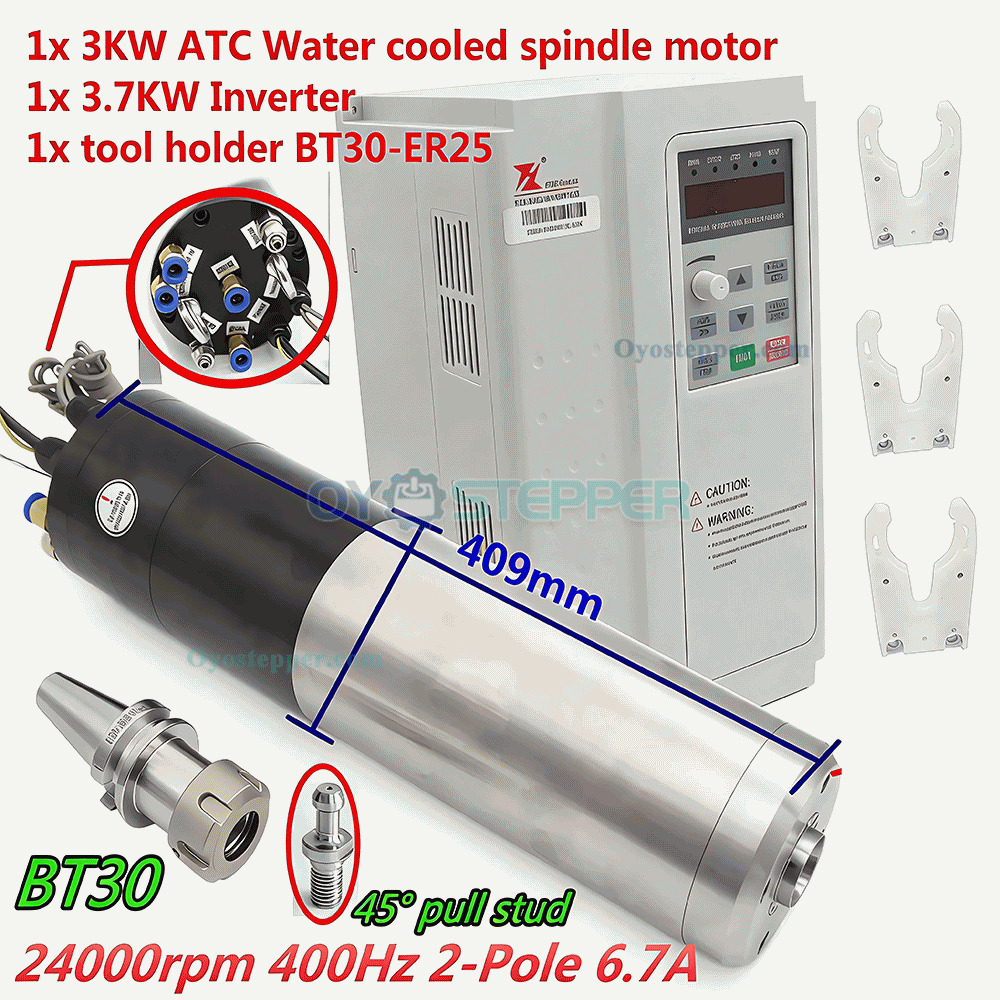

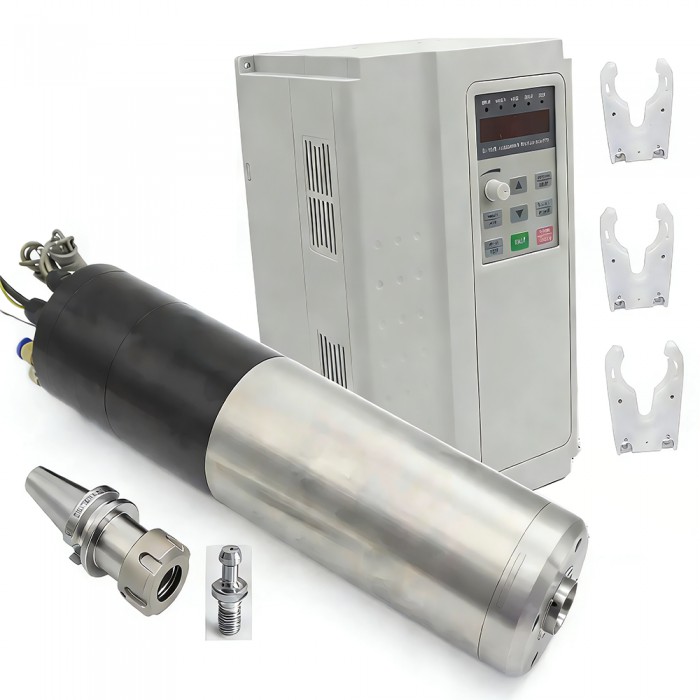

3KW BT30 220V 100mm ATC Water Cooled Spindle Motor 24000rpm 400Hz with VFD Frequency Inverter Kit
Special Offer in July 2026:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till July 31th, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$1799.00
3KW BT30 220V 100mm ATC Water Cooled Spindle Motor 24000rpm 400Hz with VFD Frequency Inverter Kit
Parameter:
Model:RTM100-30-24Z/2.2
Voltage:220 V
Current:6.7A
Rated speed:15000 rpm
Maximum speed:24000 rpm
Rated frequency:250 Hz
Maximum frequency:400 Hz
Rated torque:1.4 Nm
Peak torque:1.9 Nm
Rated power:2.2 KW
Peak power:3.0 KW
Motor poles:2 poles
Joint of nose:BT30
Diameter:100mm
Body length:409mm
Weight:20Kg

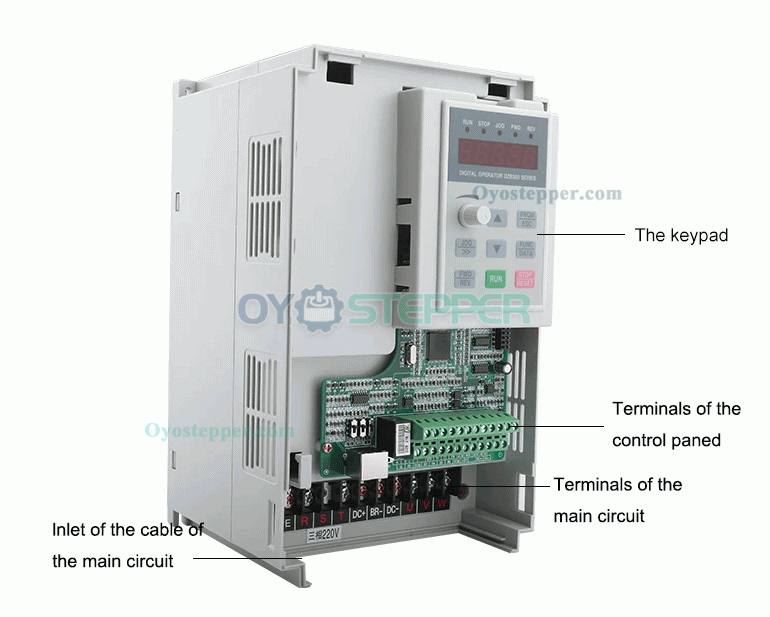

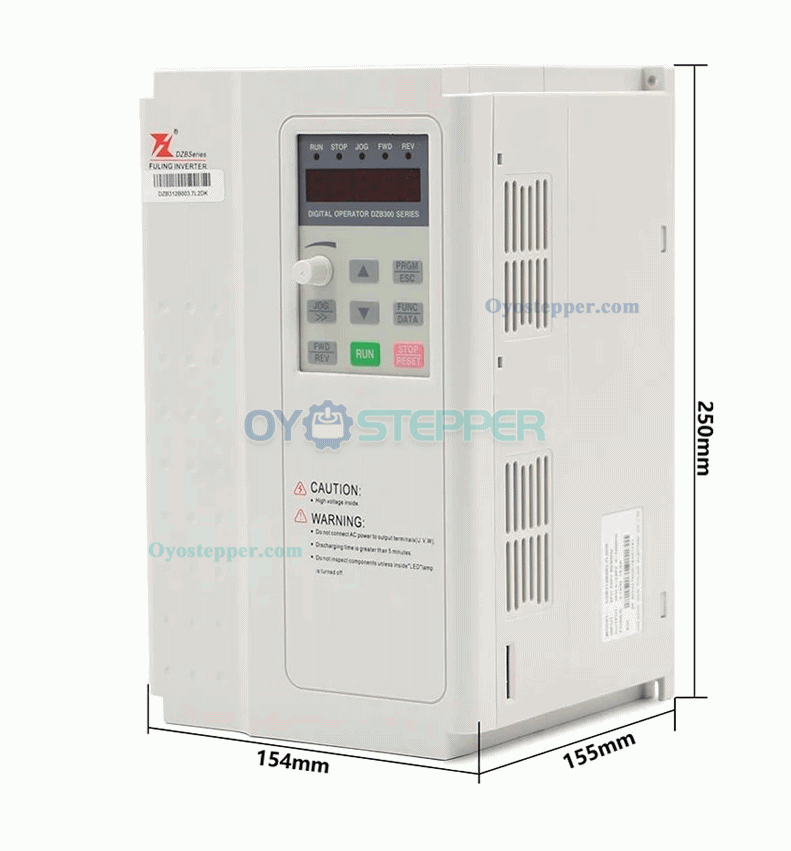

VFD Specification:
Inverter Number: Fuling 220v 3.7kw
Input Voltage: 220v(+/-15%)
Input Frequency: 50/60Hz
Input Phase: 1 phase or 3 phase (support single phase 220-240V input)
Output Voltage: 220VAC
Output Frequency: 0-1000 Hz
Output Current:15A
Output Phase: 3 phase
