Non-powered Spindle BT30 Cylinder 5000rpm Pneumatic Tool Change Unpowered Spindle Assembly

Non-powered Spindle BT30 Cylinder 5000rpm Pneumatic Tool Change Unpowered Spindle Assembly

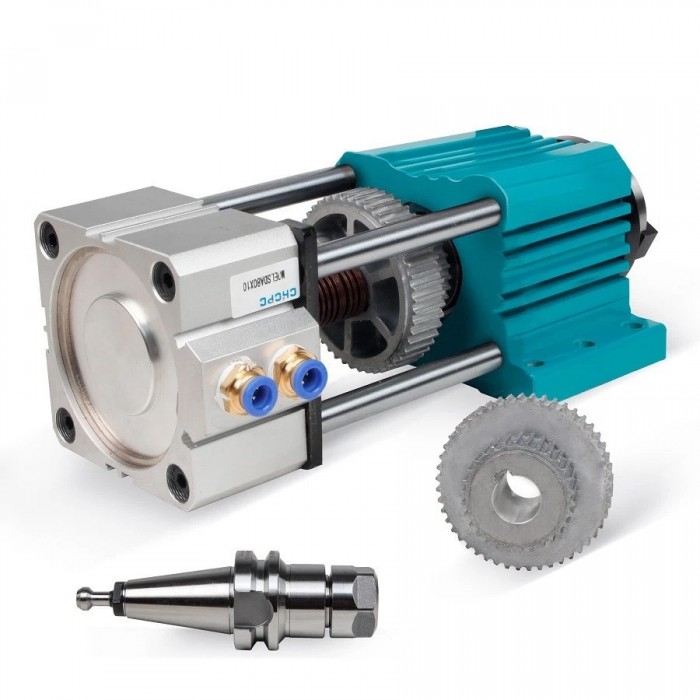

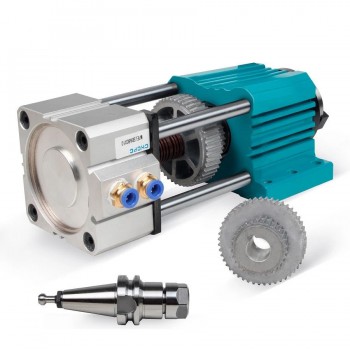

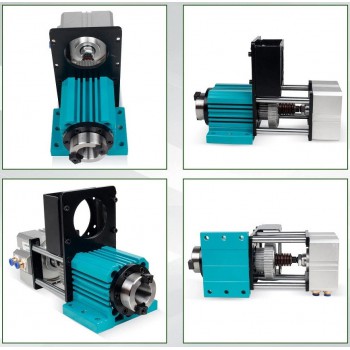

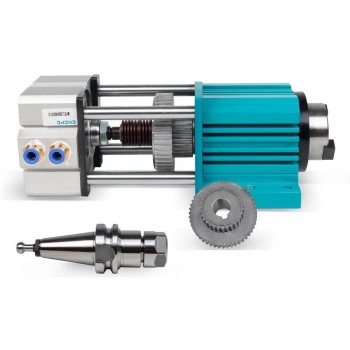

This kit includes a BT30 spindle, pneumatic cylinder, and mounting bracket. Supplied with two 5M variable speed pulleys, a belt, and a BT30ER20 tool holder (ER collet not included). Spindle shaft is heat treated. Housing material: 7075 aluminum. Designed for heavy cutting operations including drilling, tapping, and milling. Motor brackets and additional belts are not included.

Specifications:

Model: BT30

Color: Blue

Cylinder model: SDA80X10

Operating air pressure: 0.8MPa

Tension force: 300KGF

Maximum speed: 5000rpm

Bearings: 5 deep groove ball bearings

Machining accuracy: 0.02mm

Tool holder type: BT30ER20 (collet not included)

Pull stud type: BT30-45°

Gross weight (with bracket): 6.7kg

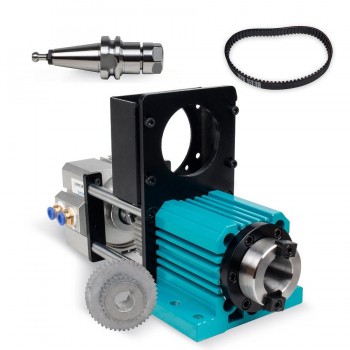

Package Includes:

1×BT30 non-powered spindle

1×BT30ER20 tool holder with pull stud

1×5M dual integrated variable speed synchronous wheel

1×Black motor bracket (optional);
