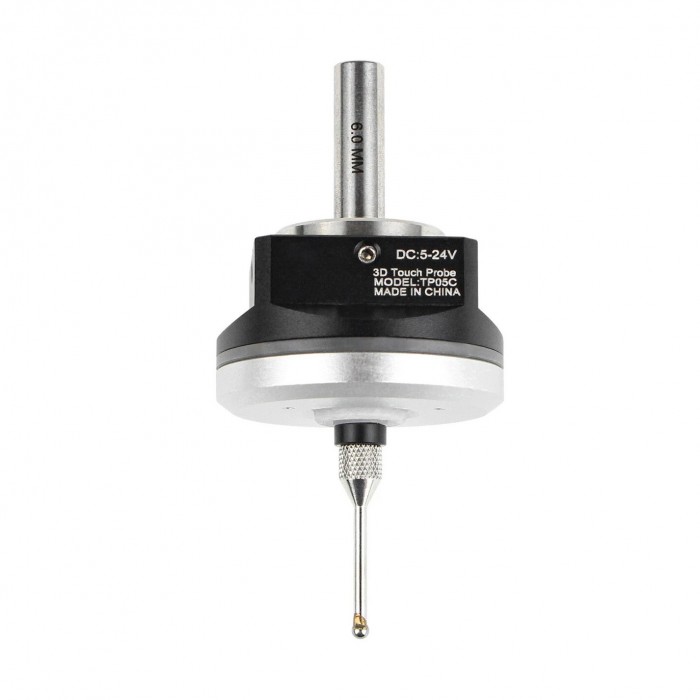

TP05C 3-axis Touch Probe for CNC machine Tool Setting 3D Trigger Edge Finder

TP05C 3-axis Touch Probe for CNC machine Tool Setting 3D Trigger Edge Finder

Features

3-axis touch probe for CNC machine tool setting and workpiece measurement.

Functions include edge finding, center finding, and basic dimensional measurement.

Compatible with common CNC control software (e.g., GRBL, Mach3).

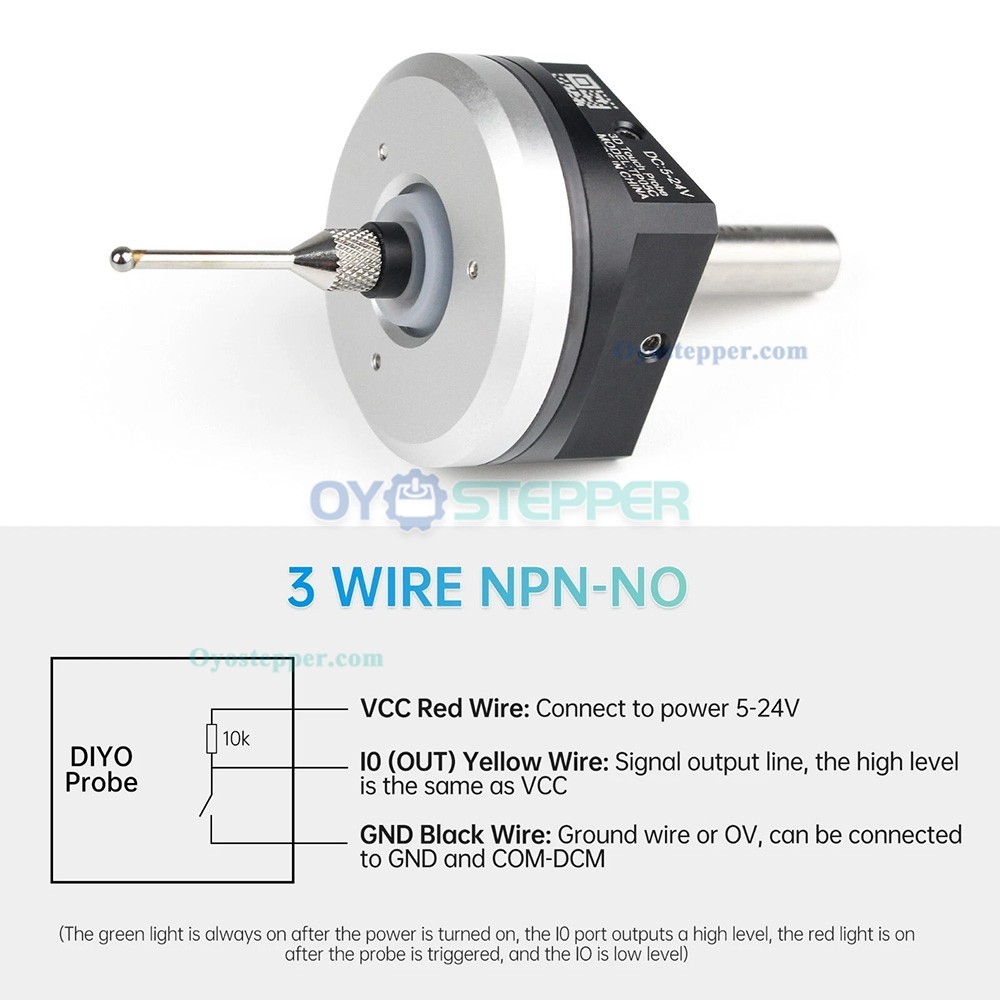

NPN-NO 3-wire connection (Red: VCC 5-24V; Yellow: Signal; Black: GND).

Housing made of anodized aluminum alloy.

Probe stylus features a tungsten carbide ball tip.



Specifications

Repeatability: 0.01 mm / 0.0004 in

Stylus Material: Stainless steel shaft with tungsten carbide ball

Electrical: Includes power/trigger indicator lights

Chuck Requirement: For concentricity, using an ER11 collet chuck.



Package Includes

1 x 3-axis Touch Probe

1 x Probe Stylus
