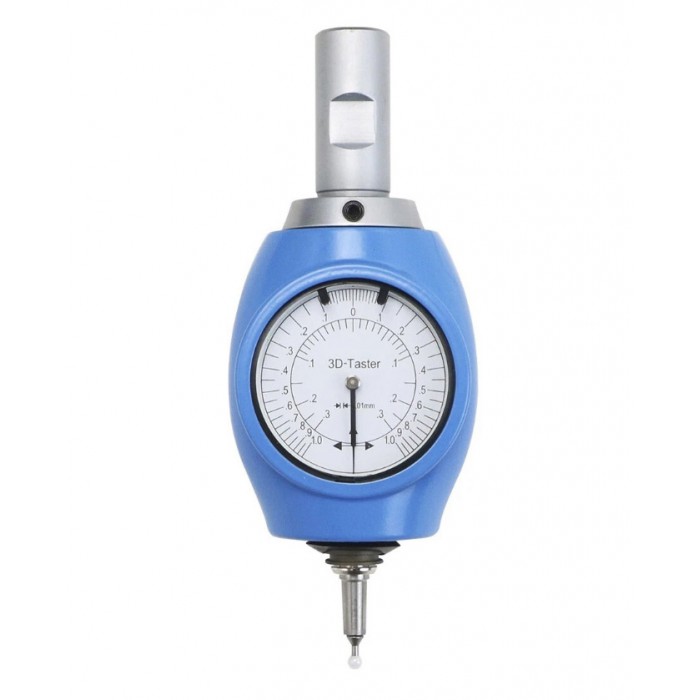

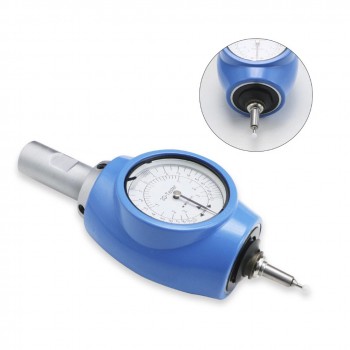

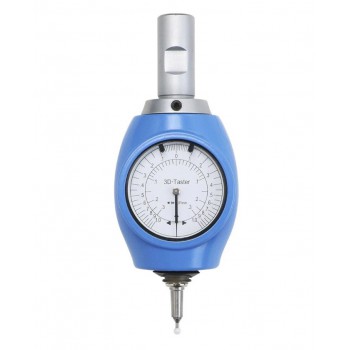

3D Edge Finder 3D Edge Positioner Probe for XYZ Axis CNC Universal Detector Tool

3D Edge Finder 3D Edge Positioner Probe for XYZ Axis CNC Universal Detector Tool

Features:

A measuring instrument for use with machine tools such as milling machines and machining centers.

Used for locating workpiece edges, centering, and performing measurements.

Constructed from aluminum alloy with integrated dial indicators for radial and axial displacement.

Features a φ20 mm shank for mounting directly into a machine tool spindle.

Includes a protective case for storage and transport.



Specifications:

Tool Type: 3D Taster (Edge Finder / Probe)

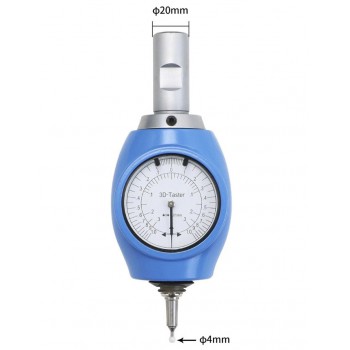

Shank Diameter: φ20 mm

Probe Tip Diameter: φ4 mm

Dial Graduation: 0.01 mm (Radial & Axial)

Measuring Range: Radial 0-2 mm; Axial 0-0.6 mm

Maximum Permissible Error: 0.008 mm

Maximum Measuring Depth: 30 mm

Material: Aluminum Alloy

Included: Storage/Transport Case;
