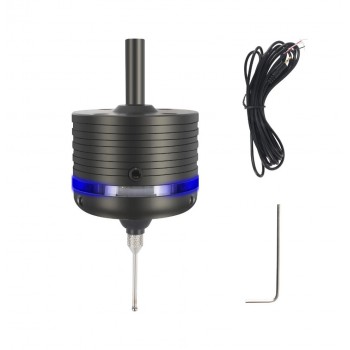

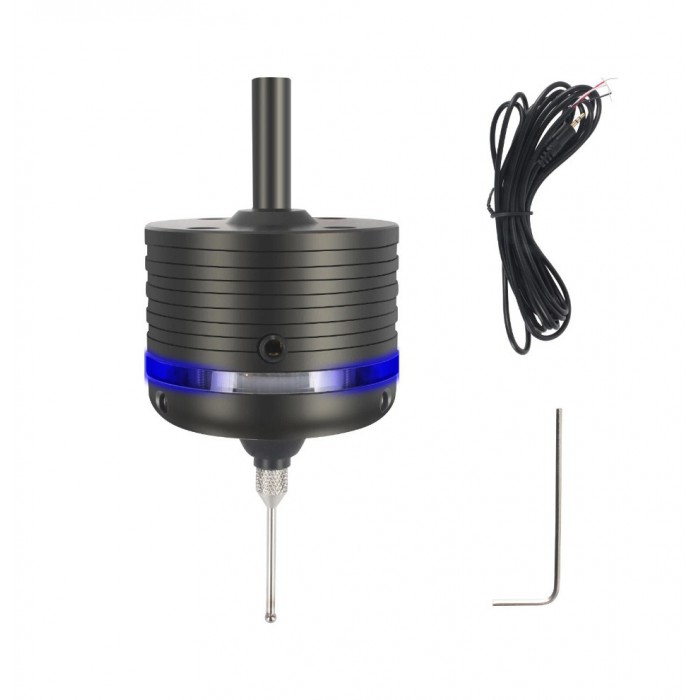

CNC Mach3 3D Finder Touch Probe Online and Offline Measurement

CNC Mach3 3D Finder Touch Probe Online and Offline Measurement

Features:

Online & Offline Modes: Supports connection for automatic online measurement. In offline mode, it functions as a 5-direction sound and light indicating tool.

Measurement Functions: The tool measures edges, holes, studs, angles, and corners for CNC machining applications.

Construction Material: The main body is constructed from 7075 aluminum alloy.

Automatic Centering: When connected, the automatic centering function is activated by linking the GND and output lines. Coordinate recording is managed by the host machine's macro program.



Specifications:

Material: 7075 Aluminum Alloy

Probe Material: Tungsten Steel

Outer Diameter: 39mm

Probe Length: 20mm

Clamping Diameter: 6mm

Grip Length: <20mm

Repeatability: 0.01mm

X/Y Axes Swing: ±3mm

Z Axes Swing: ±1.5mm

Offline Working: Yes

Online Working: Yes

Connection: Included 2m data cable

Waterproof Rating: IP43

Operating Voltage: 6-30V DC;
