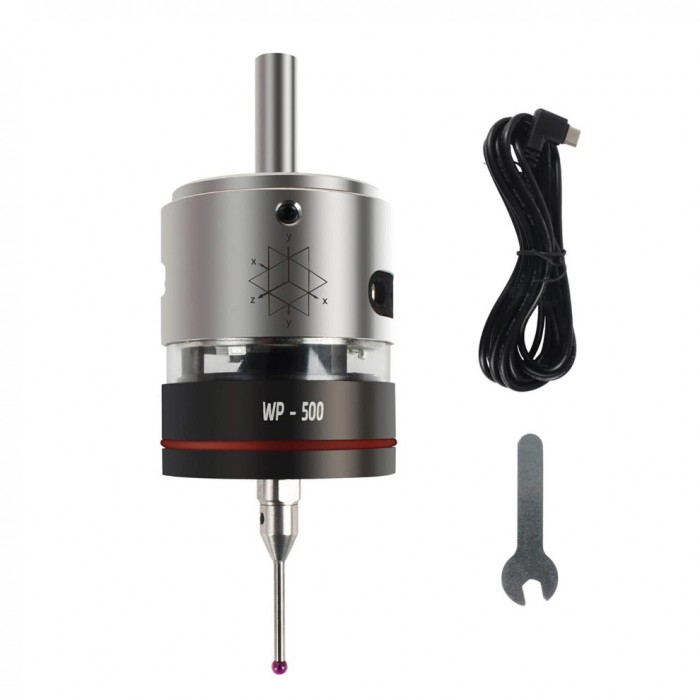

WP500 3D Edge Finder Touch Probe 0.001mm for CNC Milling Machine

WP500 3D Edge Finder Touch Probe 0.001mm for CNC Milling Machine

This 3D touch probe assembly designed for automated tool setting, workpiece measurement, and edge finding on CNC machining equipment.


Features:

Constructed from 304 stainless steel and 7075 aluminum alloy.

Equipped with a ruby (φ3 mm) tipped stylus.

IP67-rated waterproof design for use in coolant environments.

No (Normally Open) signal output.

Includes trigger indicator light.

Compatible with wired operation (< 3m cable).



Specifications

Body Diameter: 42 mm

Shank Diameter: 10 mm

Stylus Thread: M3

Standard Stylus Length: 30 mm

Trigger Force: 1 N·m

Repeatability: 0.001 mm

Safety Stroke: XY ±15°, Z: 3 mm

Signal Current: < 50 mA
