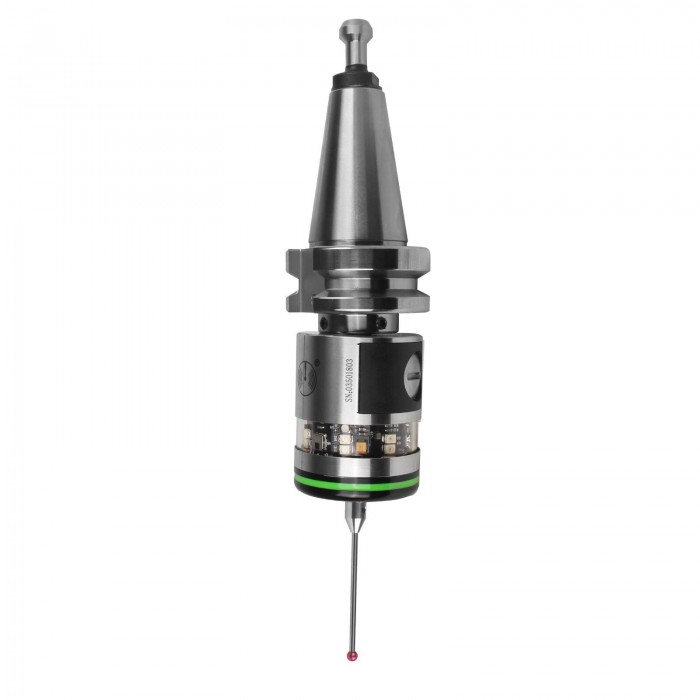

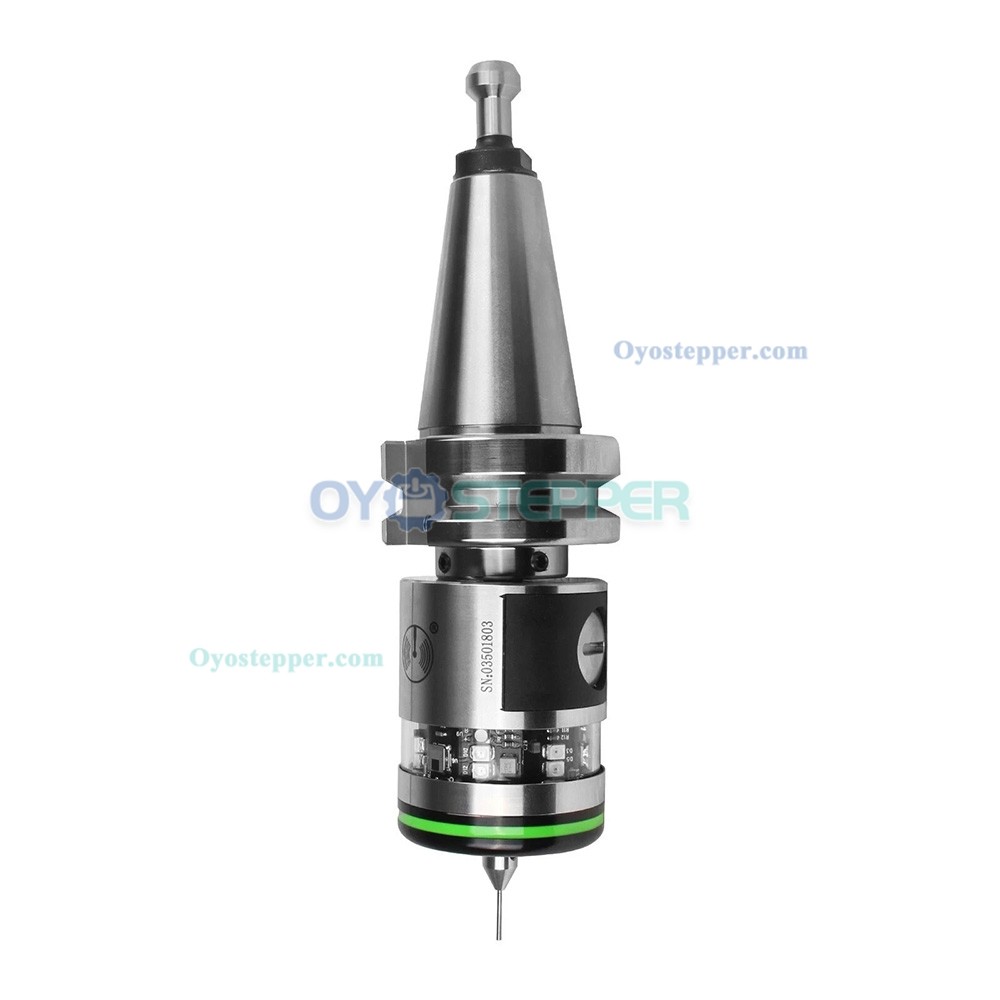

3D Sensor Finder T40 Wireless Infrared Trigger Probe CNC Machining Center Tool

3D Sensor Finder T40 Wireless Infrared Trigger Probe CNC Machining Center Tool

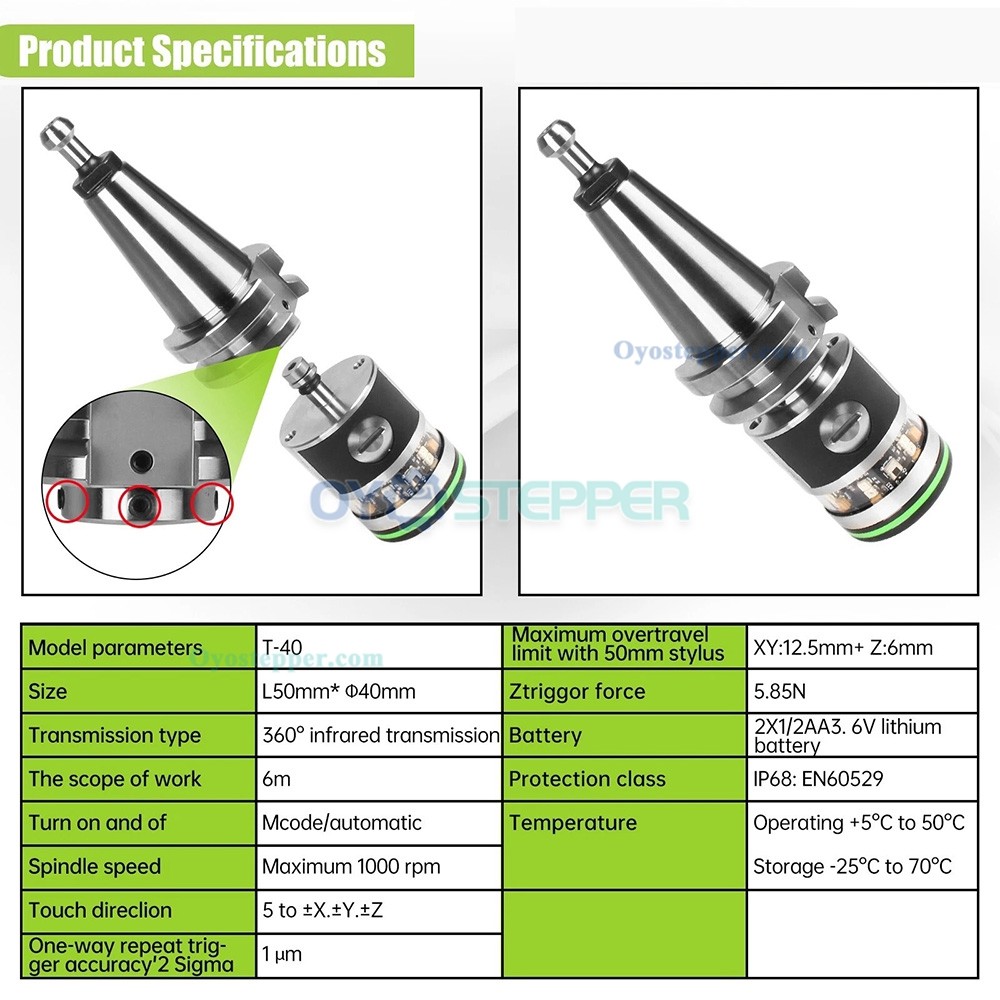

T40 infrared transmission measurement probe for small to medium machining centers, CNC machine tools, and drilling/tapping centers. 360° signal transmission. IP68 protection rating.

Features:

Protection rating: IP68 (EN60529)

Signal transmission: 360° infrared, modulated to reduce light interference

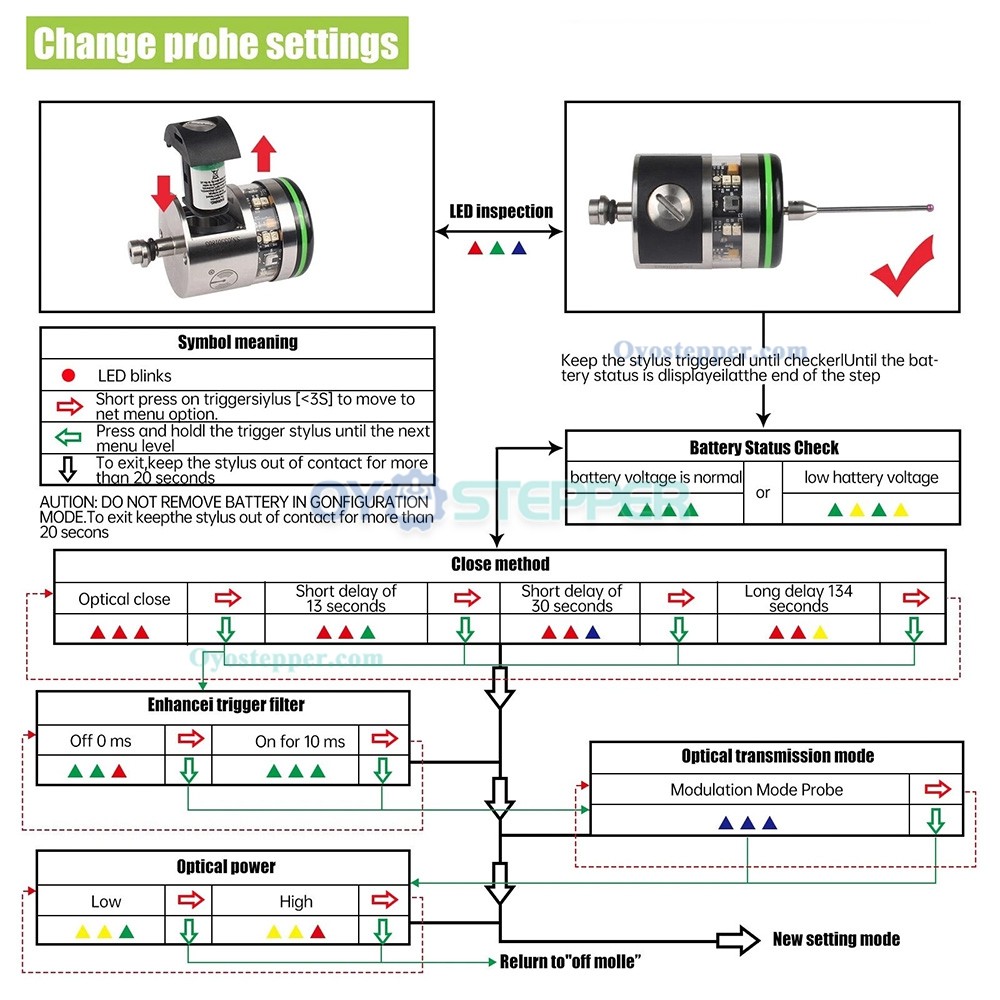

On/Off mode: M code or automatic

Spindle speed: max 1000rpm

Trigger direction: 5-way (±X, ±Y, ±Z)

Unidirectional repeat trigger accuracy (2σ): 1μm

Max over-travel (50mm stylus): XY 12.5mm, Z 6mm

Trigger force (50mm stylus, factory setting): XY low 0.5N, XY high 0.9N, Z 5.85N

Power supply: 12–30V

Operating current: <100mA (transmission), <40mA (power-saving)

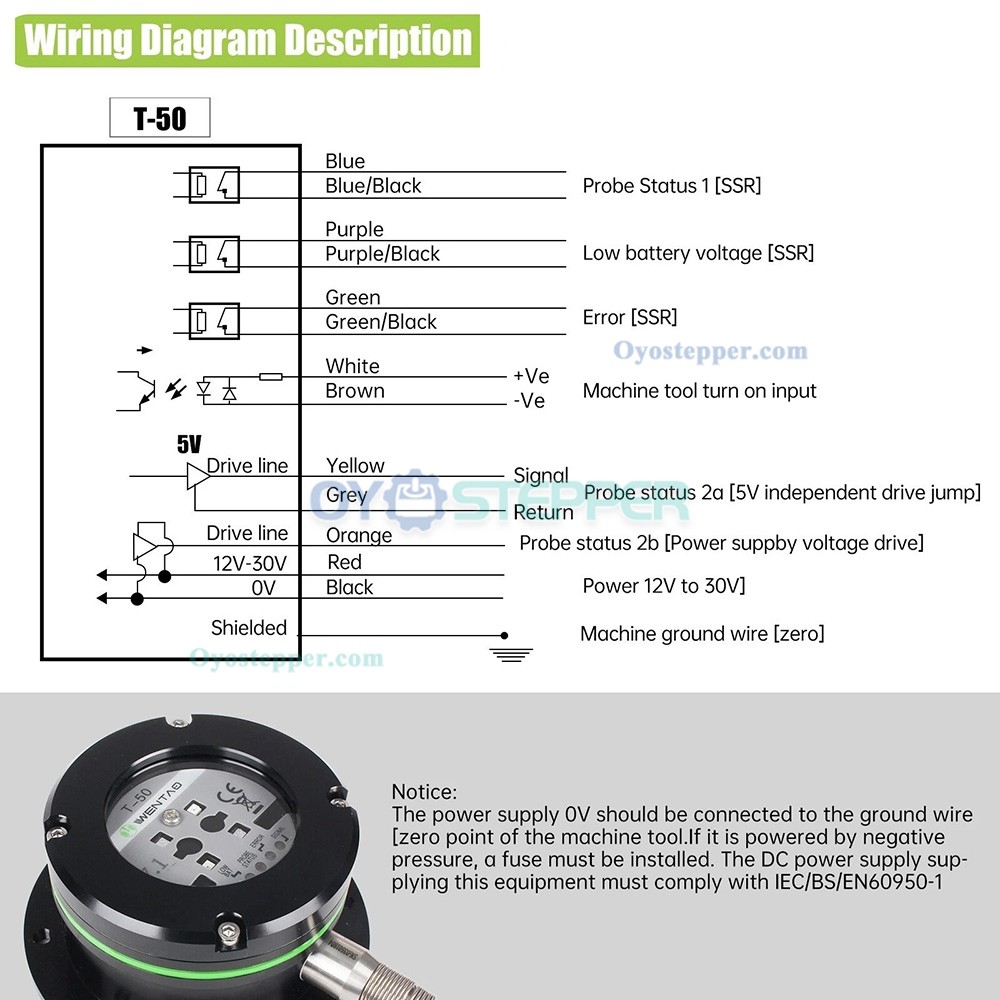

Connection: 13-pin shielded cable

Temperature range: storage -25°C to 70°C, operating 5°C to 55°C

Dimensions: 50mm × φ40mm

Weight: 260g

Working range: 6m

Applications:

CNC machine tools, 5-axis machines, lathes with turrets, grinding machines, machining centers, drilling and tapping centers, 3D surface inspection, automated production lines, measurement and inspection, robotic applications

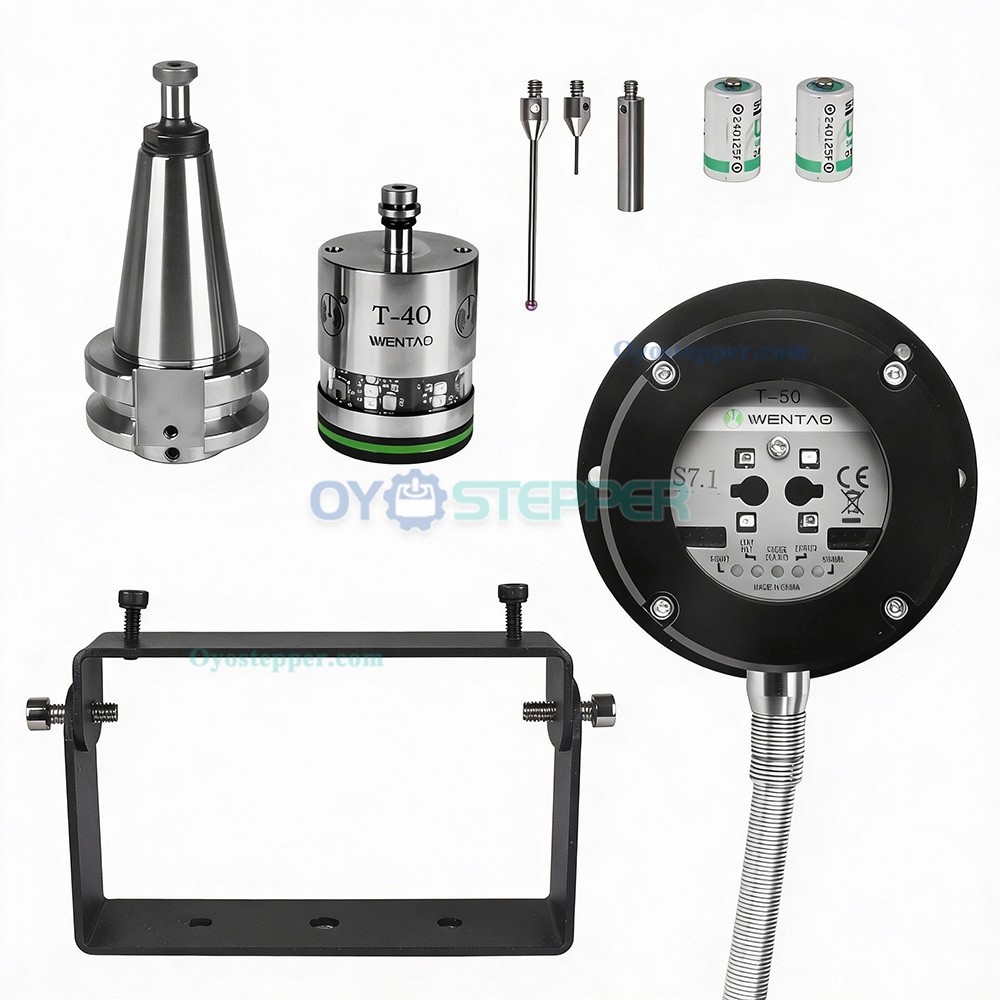

Package Includes:

1×T40 Infrared trigger probe set
