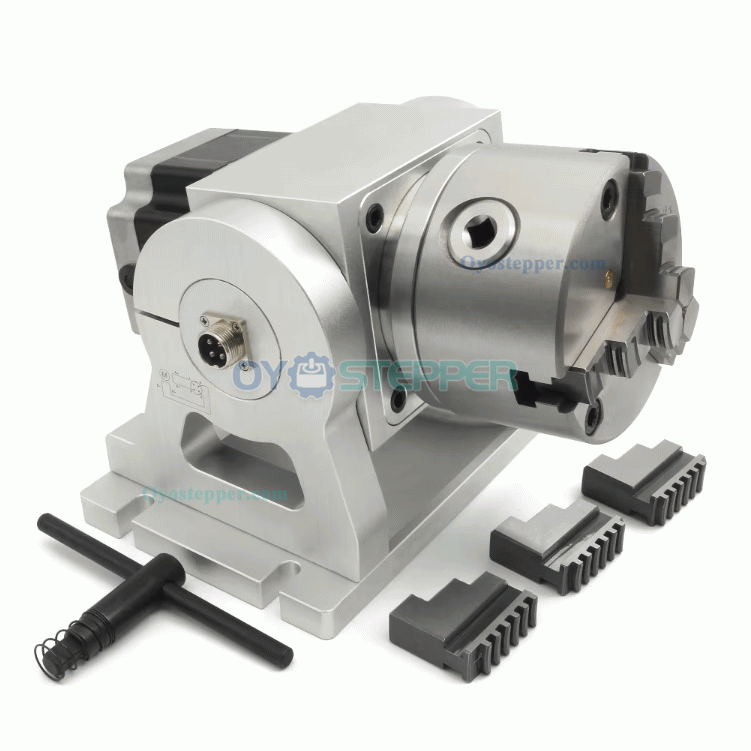

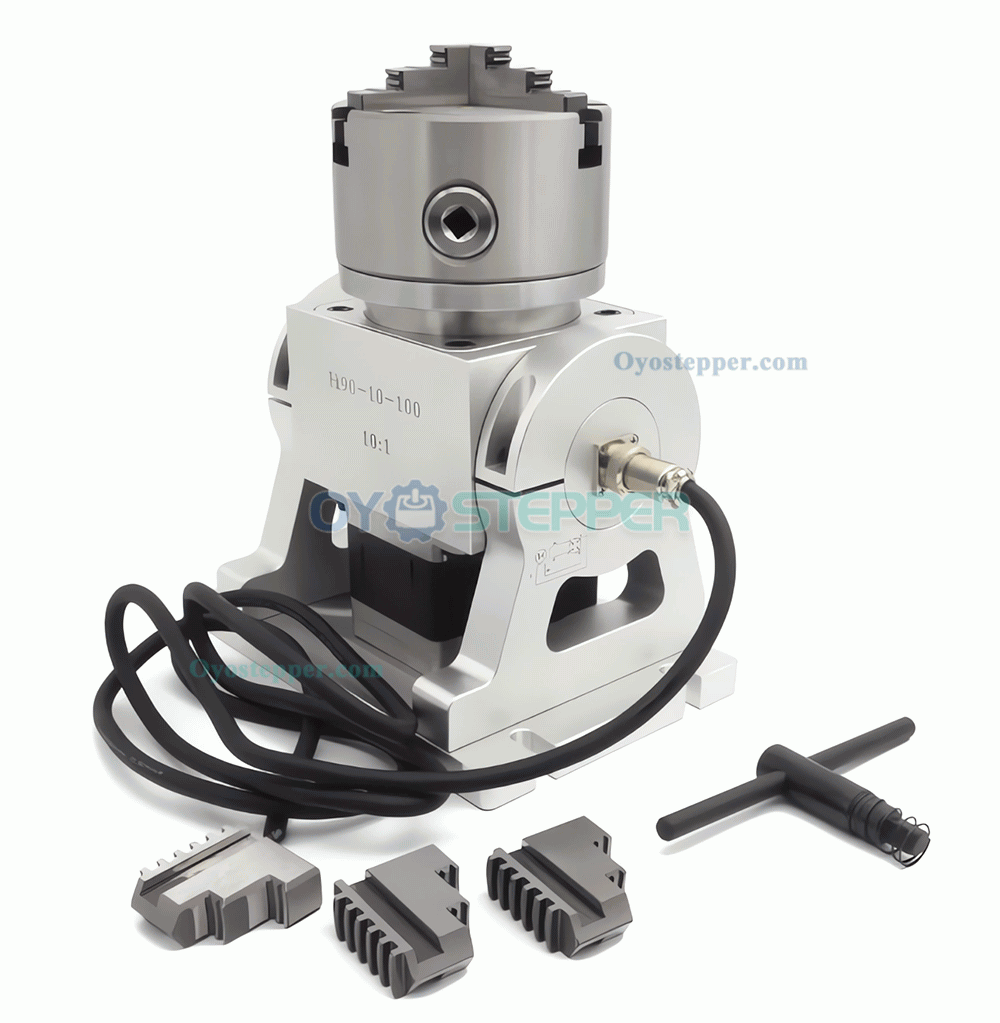

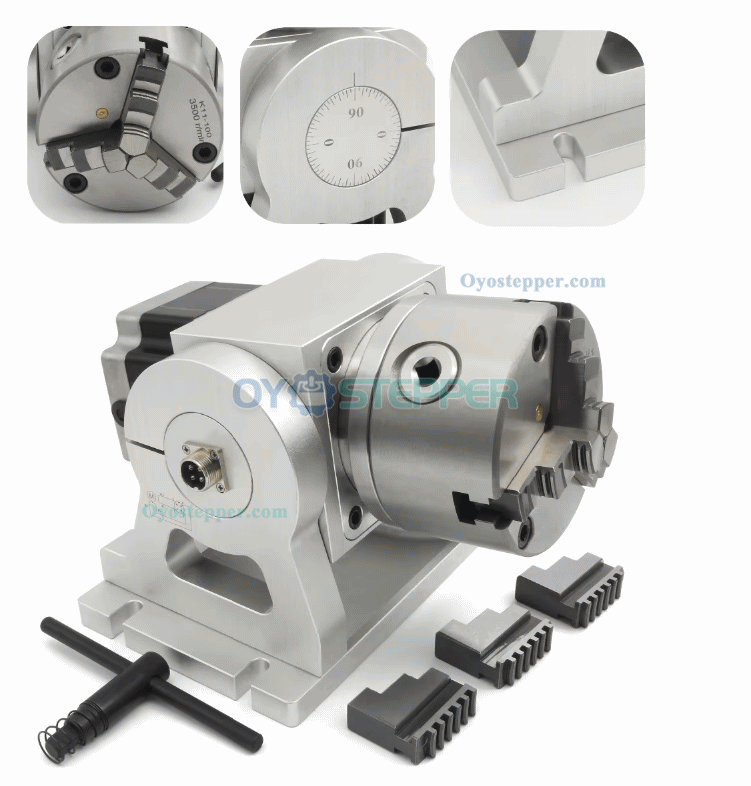

4th Axis 10:1 CNC Rotary Indexing Head with 100mm Chuck and 3 Jaw Chuck with Nema34 Stepper Motor

4th Axis 10:1 CNC Rotary Indexing Head with 100mm Chuck and 3 Jaw Chuck with Nema34 Stepper Motor

Specification:

Model: HT90-10-100A (100 three-jaw centering chuck)

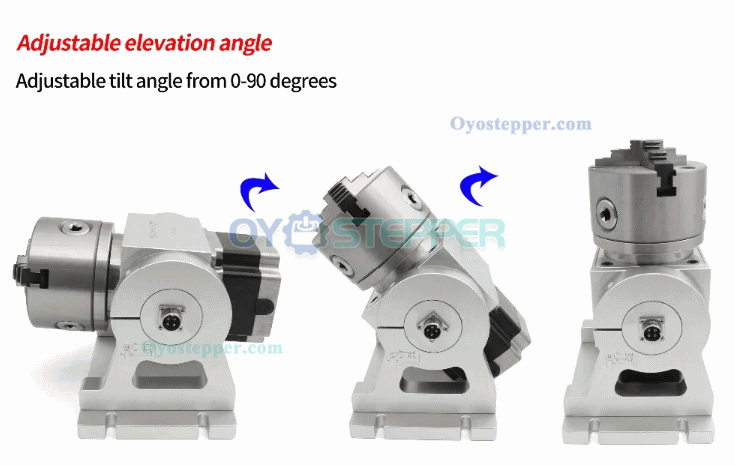

A-axis angle: Adjustable elevation angle (manual adjustment, manual locking)

Center height: 100MM

Chuck outer diameter: 100MM

Angle: 0.18 degree /step

Reduction ratio: 10:1

Stepping motor: Nema34 86mm stepping motor (Two-phase)

Accessories: wrench

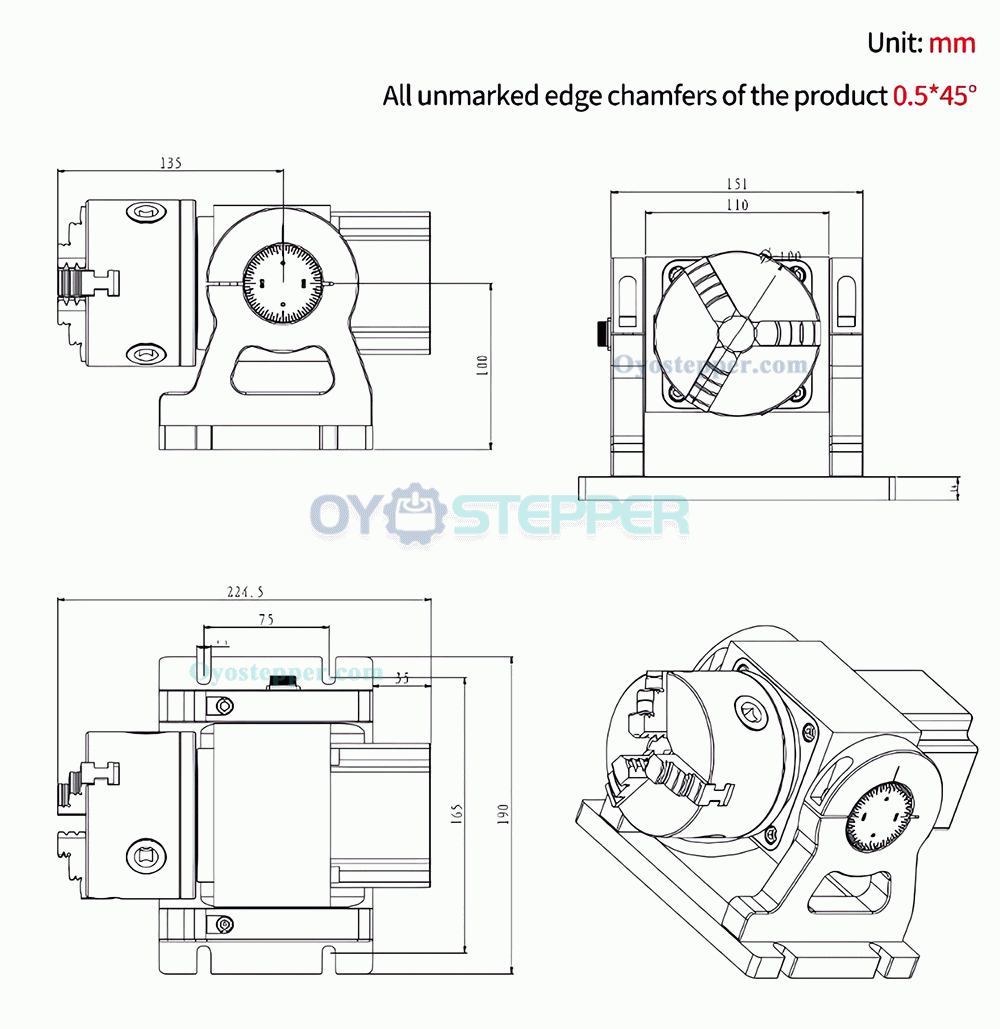

Size: 225* 190 * 150mm

Weight: 10KG

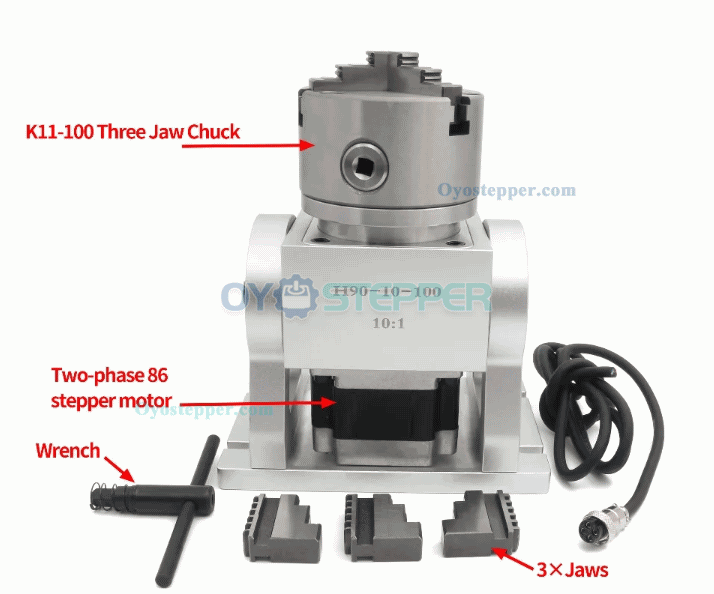

Packing list:
1 x H90-10-100A 4th axis (Adjustable elevation angle)
1 x wrench
3 x claw
1 x Cable
