BS-0 Semi 5 Inch Indexing Spiral Dividing Head 3-Jaw Chuck Tailstock Dividing Head For CNC Milling

BS-0 Semi 5 Inch Indexing Spiral Dividing Head 3-Jaw Chuck Tailstock Dividing Head For CNC Milling

Features:

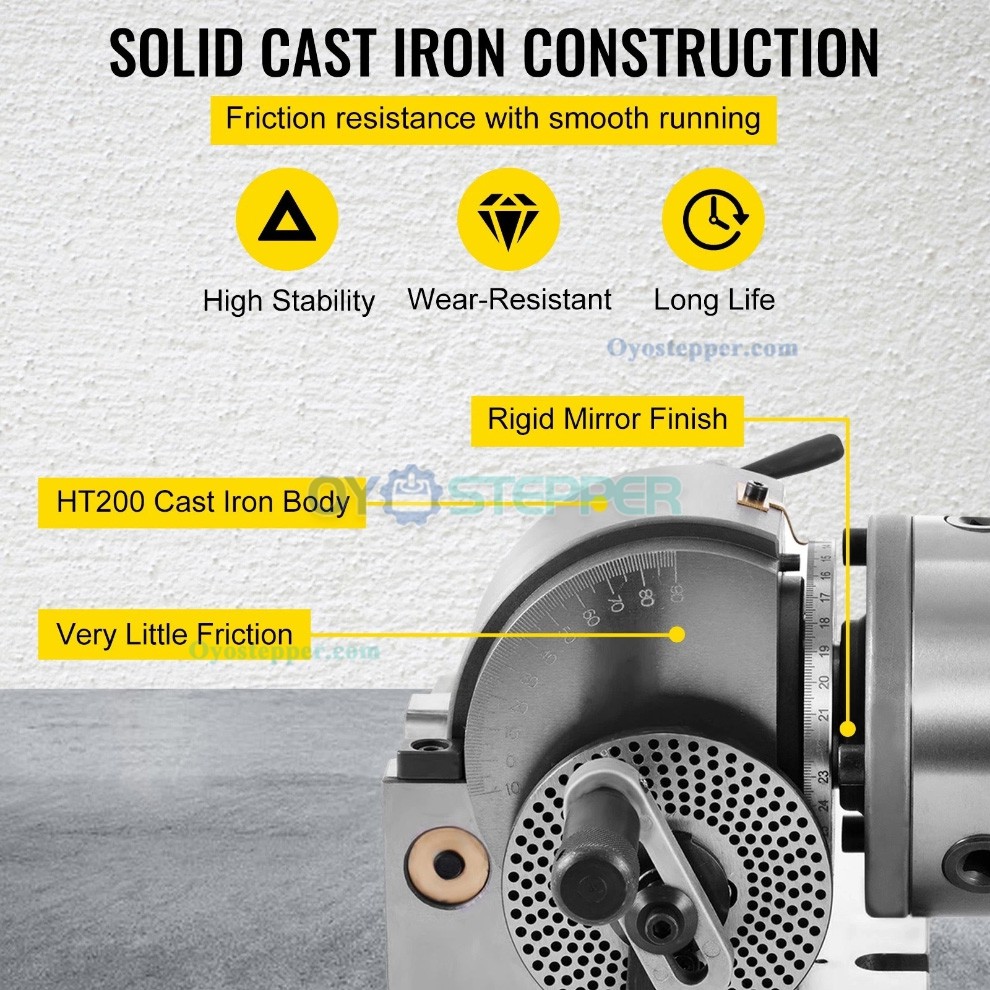

Cast Iron Body: Manufactured from solid cast iron.

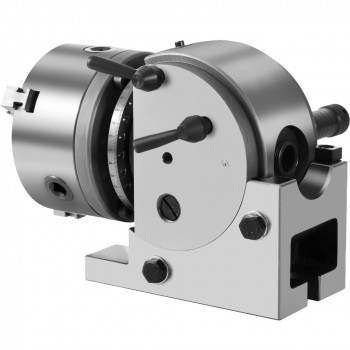

Adjustable Headstock: The headstock can be tilted to accommodate different machining angles.

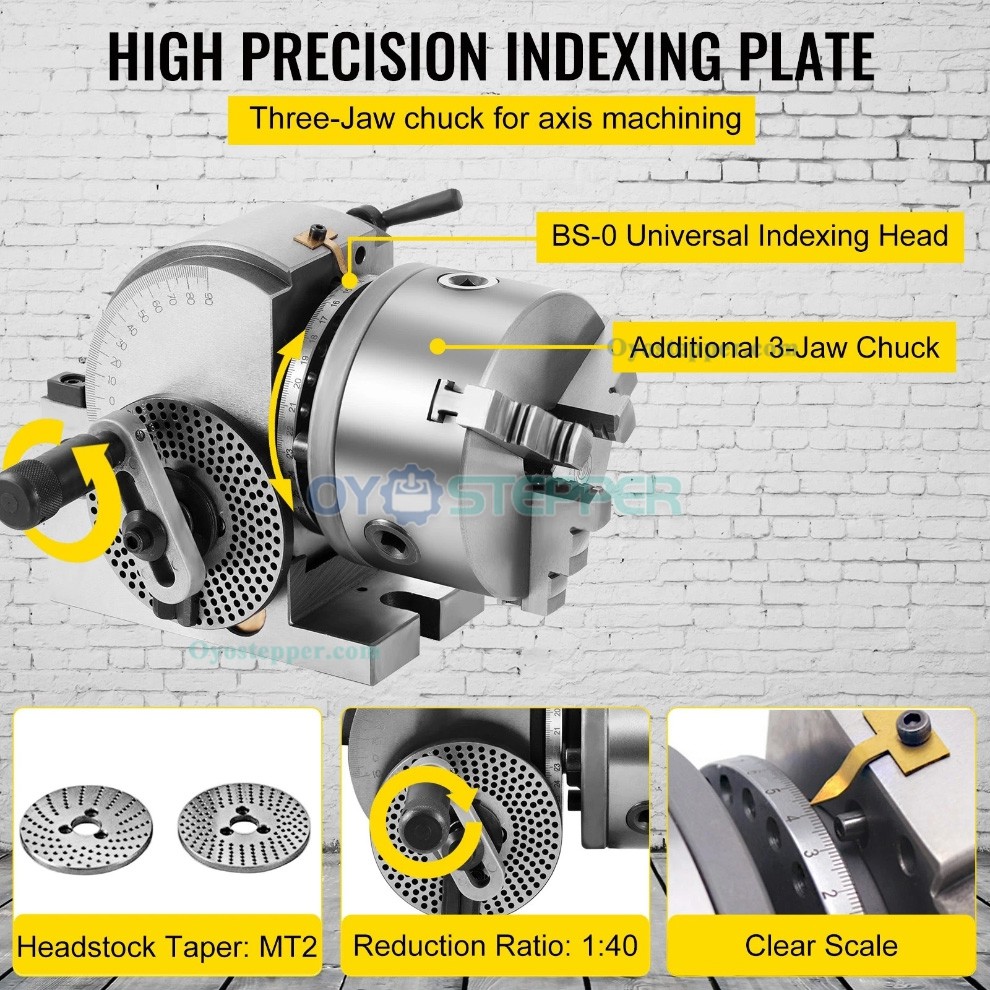

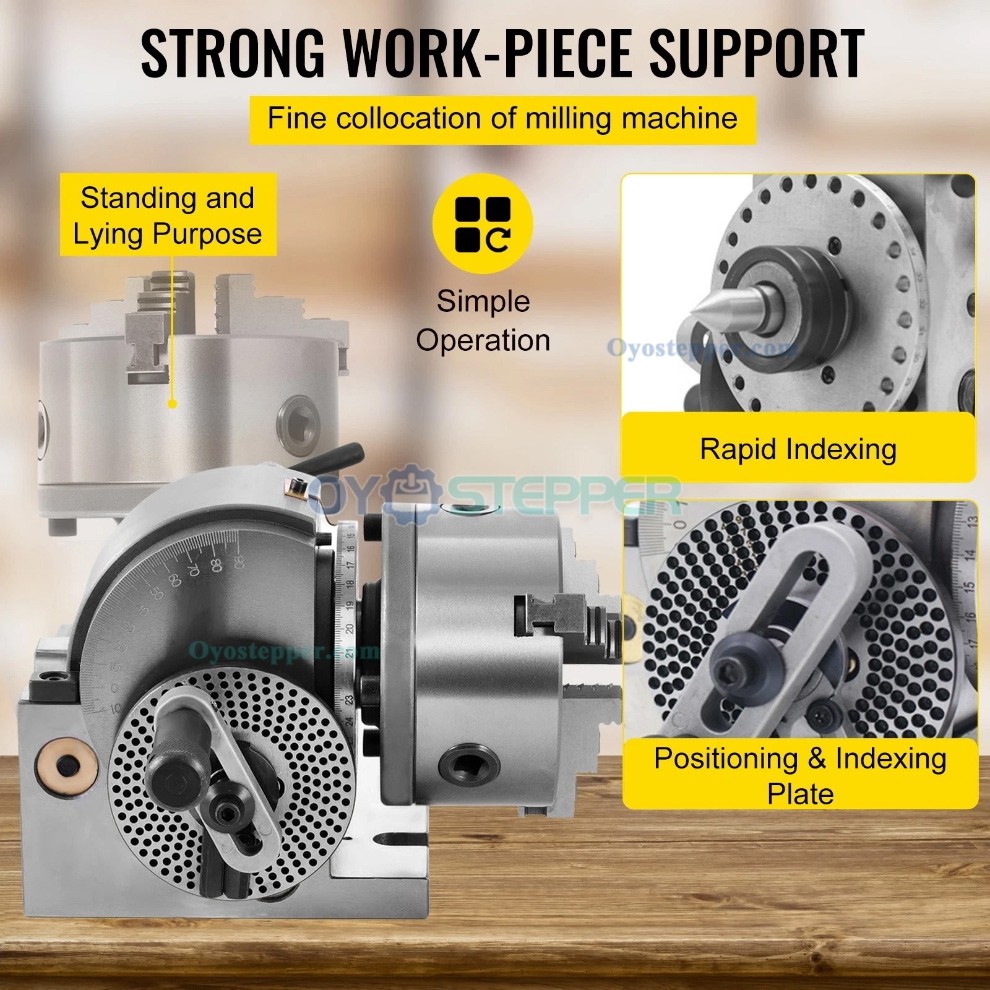

Indexing System: Features a direct indexing plate and three interchangeable plates (A, B, C) for basic and indirect dividing.

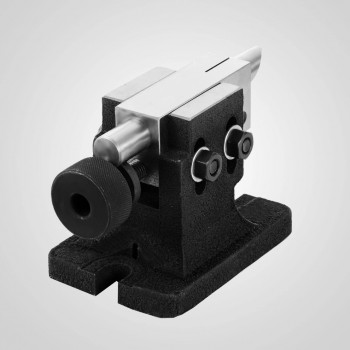

Tailstock Support: Includes an MT2 tailstock.

Spindle Lock: With a locking mechanism for the spindle.

Application:

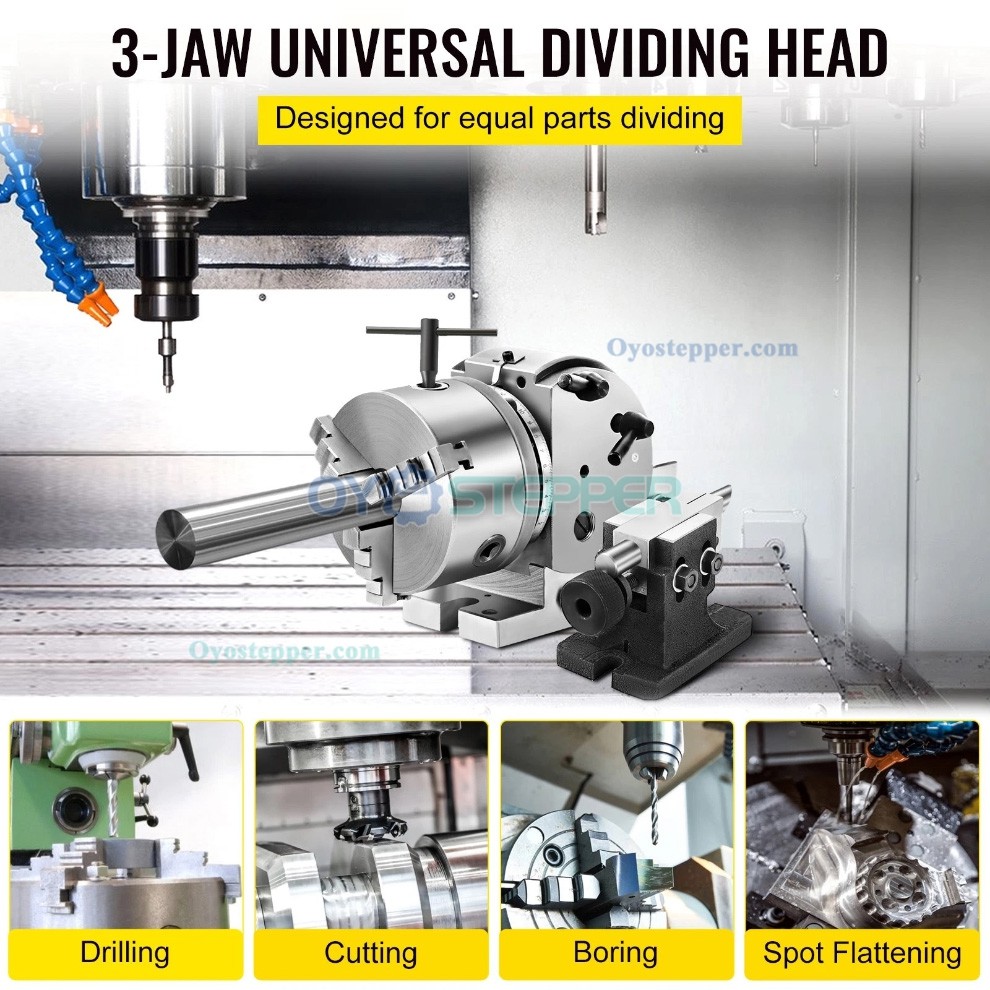

It is designed for use on milling machines and other compatible machine tool tables.


Specifications:

Model: BS-0

Construction: Cast Iron

Swing: 165 mm (6.5")

Center Height: 100 mm (3.94")

Headstock Taper: MT2

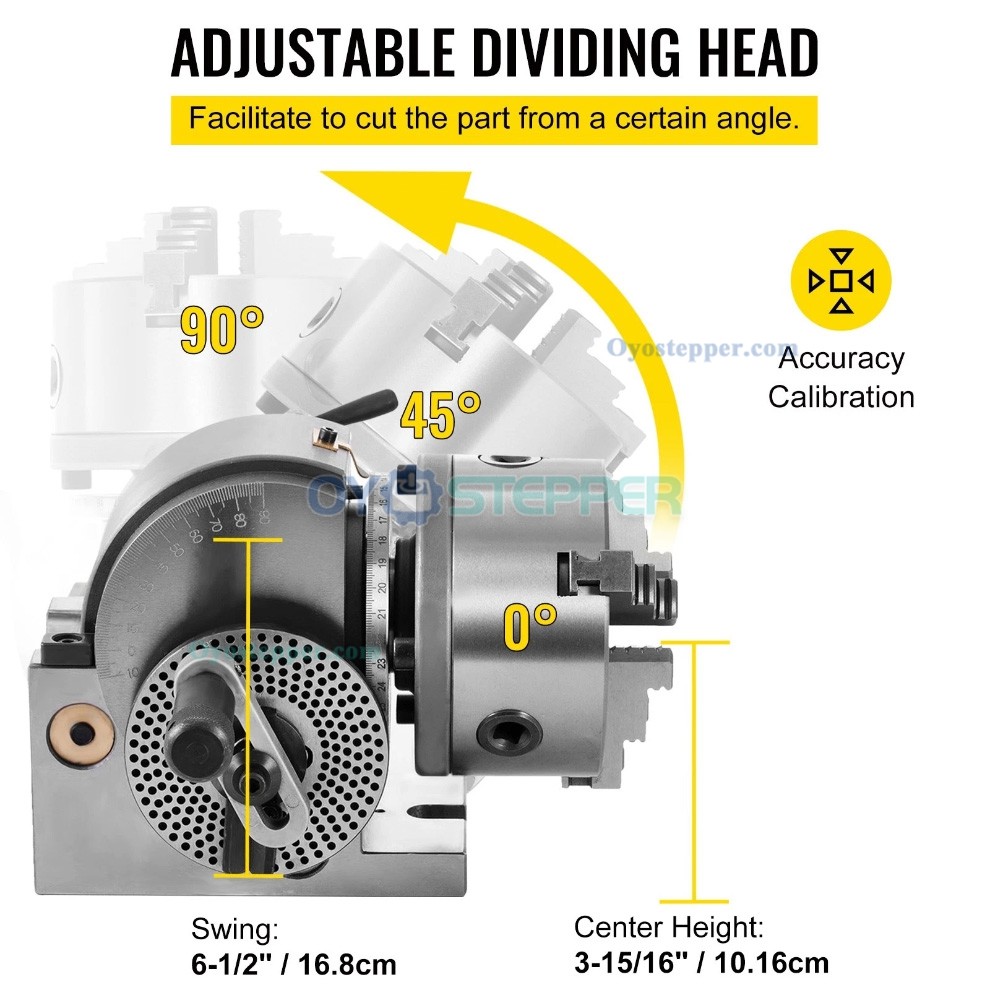

Headstock Tilt Range: -10° to +90° (from horizontal to vertical);

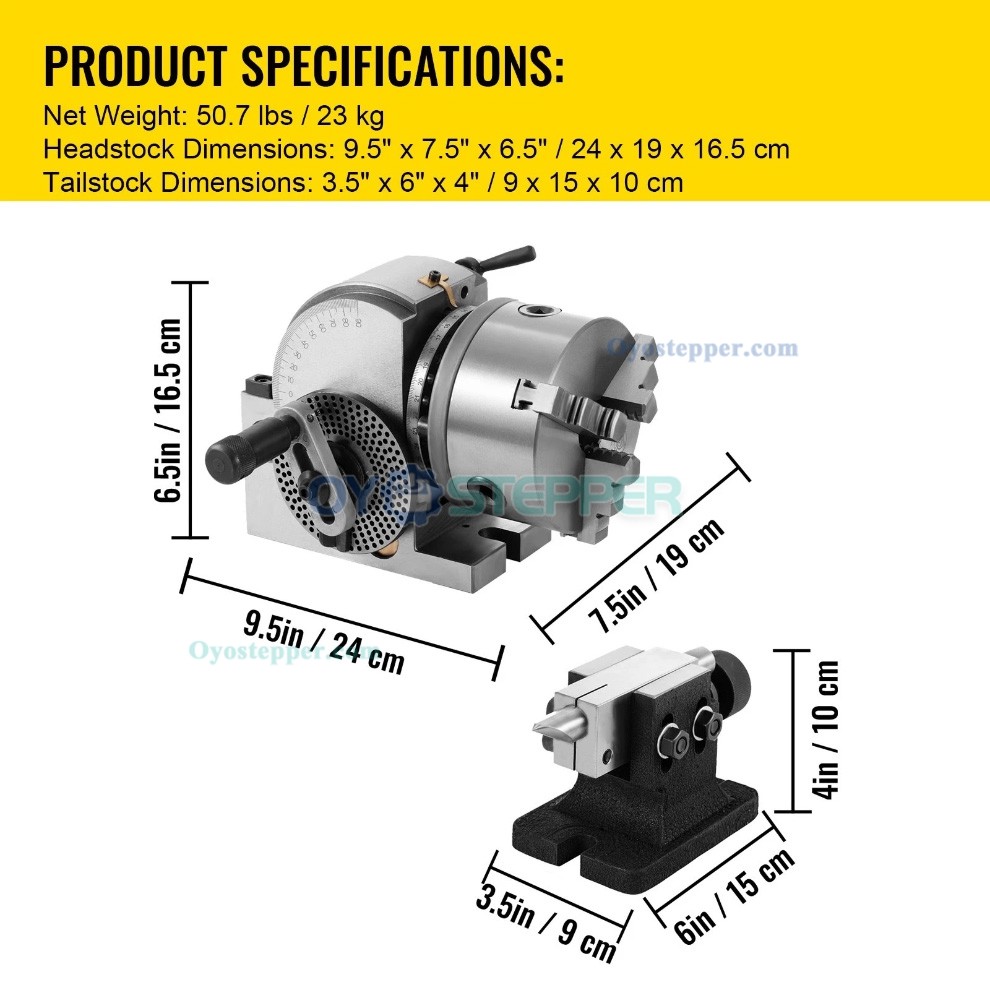

Net Weight: 23 kg (50.7 lbs);

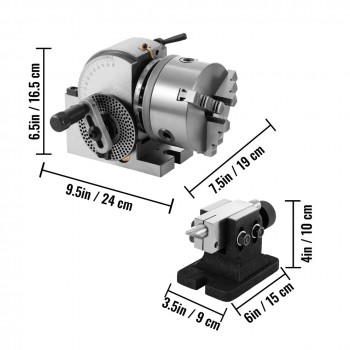

Headstock Dimensions: 240 x 190 x 165 mm (9.5" x 7.5" x 6.5");

Tailstock Dimensions: 90 x 150 x 100 mm (3.5" x 6" x 4");

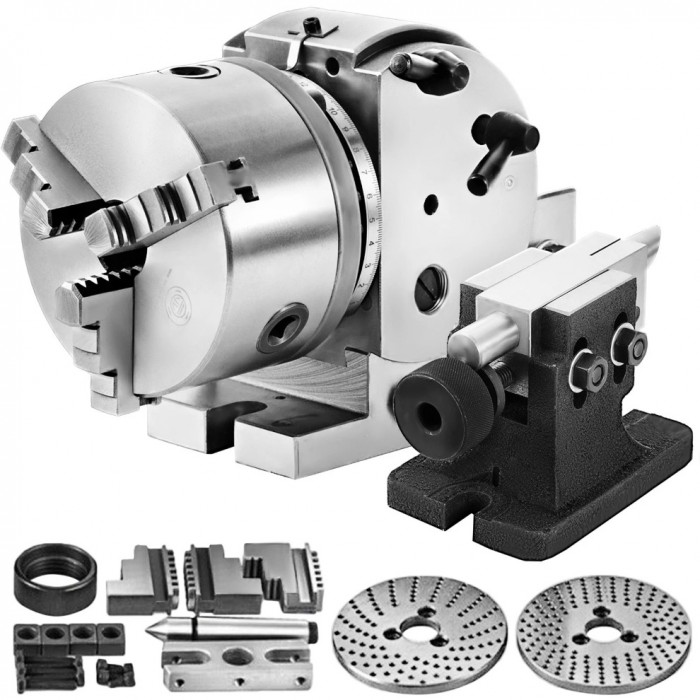

Package Contents

1 x Dividing Head

1 x MT2 Tailstock

3 x Interchangeable Indexing Plates (A, B, C)

1 x 125 mm 3-Jaw Chuck
