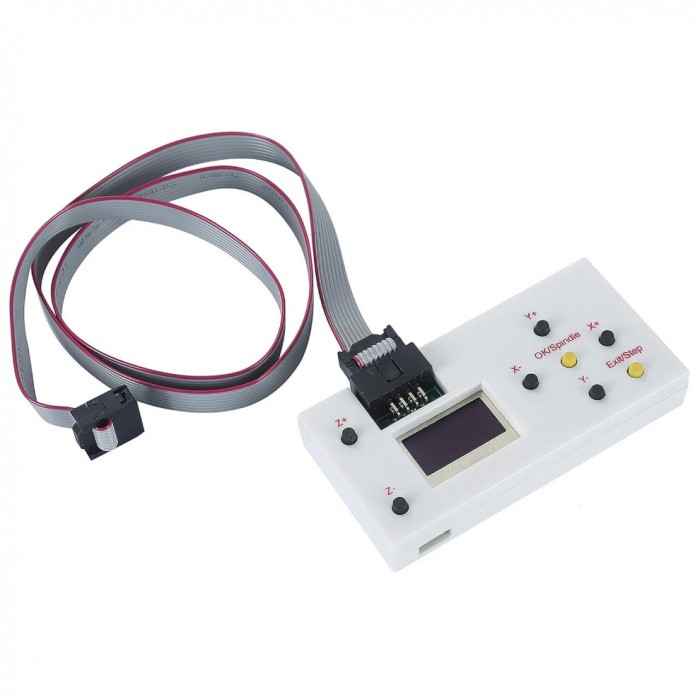

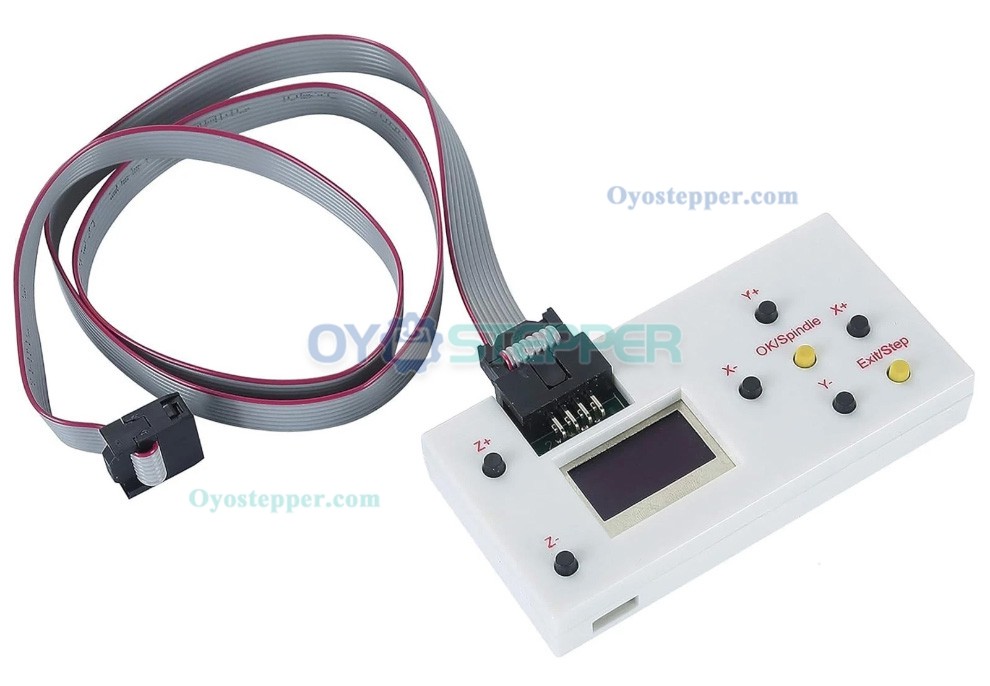

3 Axis GRBL Offline Controller for 1610 3018 4540 3020 Series CNC Router Machine
3 Axis GRBL Offline Controller for 1610 3018 4540 3020 Series CNC Router Machine
Description
3-axis offline controller compatible with GRBL-based CNC machines (e.g., 1610, 3018 series).

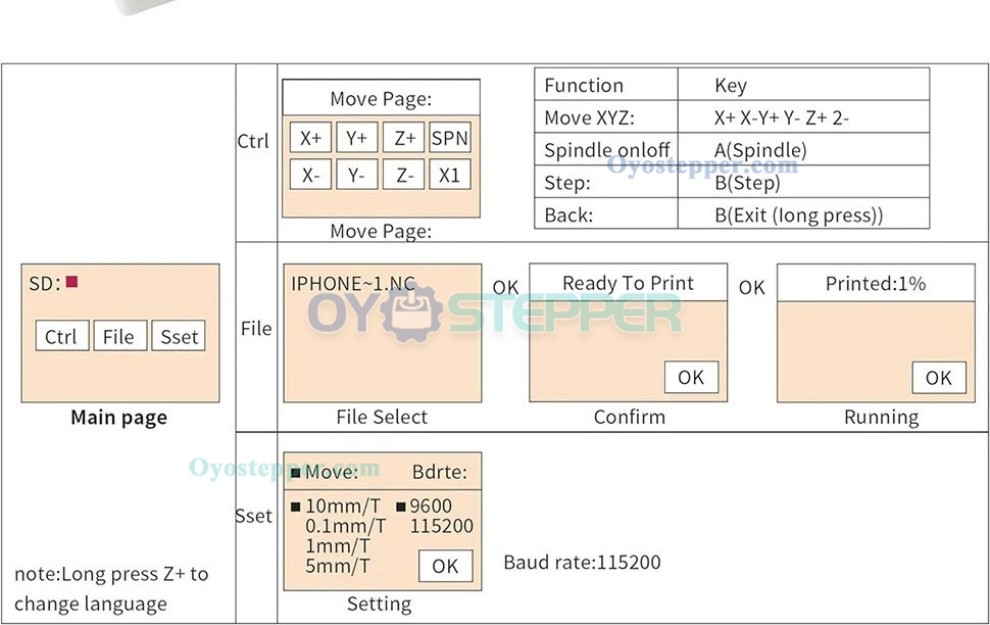

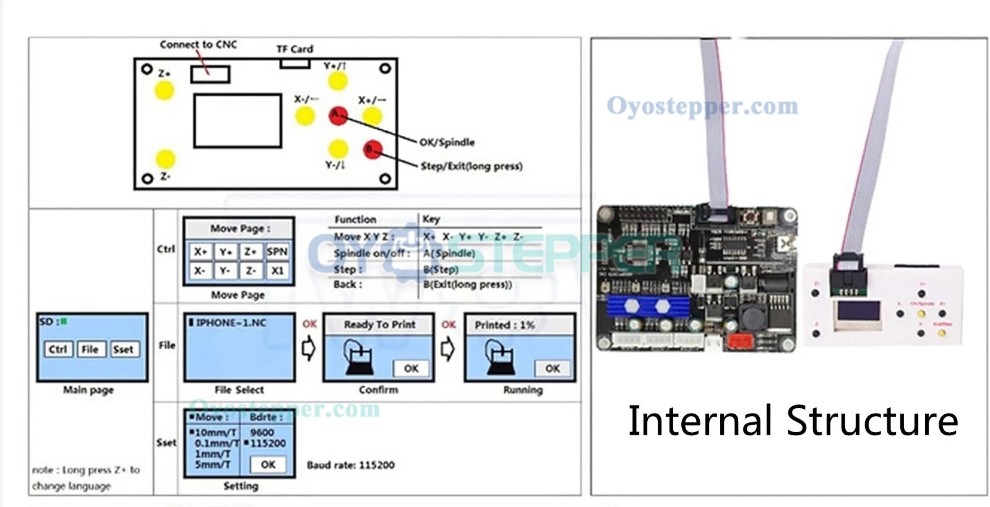

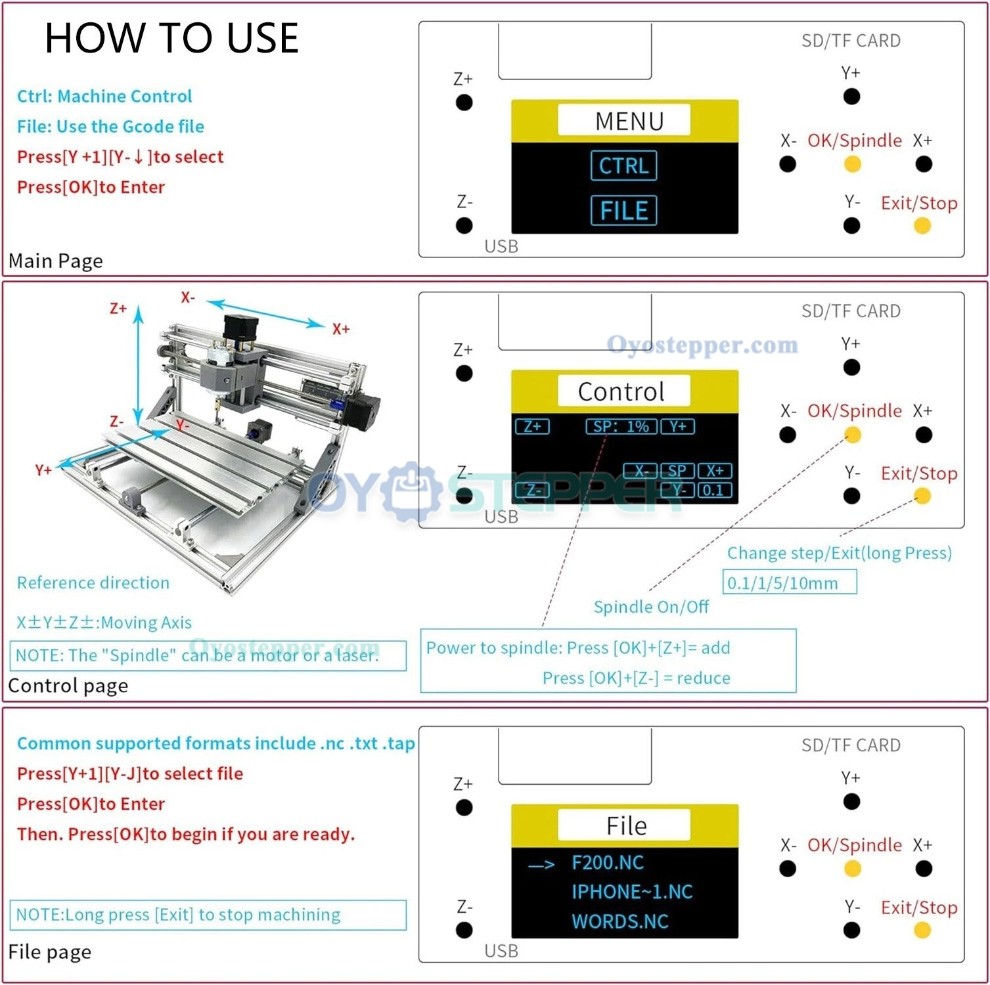

Functions:
Controls movement on X, Y, and Z axes.
Controls spindle power on/off.
Adjusts spindle speed.
Controls laser module on/off (for compatible models).
Compatibility:

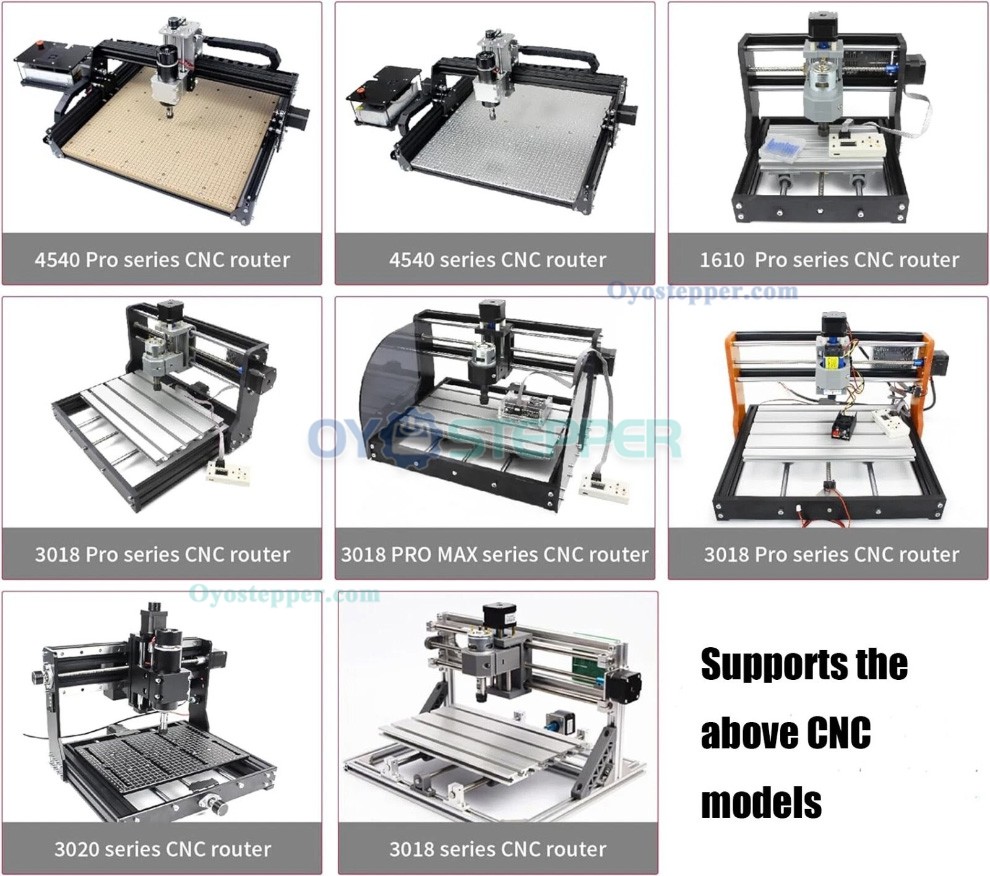

Designed for GRBL-controlled CNC routers, including models such as 1310, 1610, 3018, and 3018-Pro.
Specifications
Interface: USB (via CH340 chip)
Compatible Software: GRBL controller, Universal Gcode Sender
Main Control Chip: ATmega328P
Stepper Driver: A4988
Spindle Drive: MOSFET (max. 60V, 10A)
Stepper Motor Support: 12V, max. current 2A (sustained use below 1.5A )
Laser Support: Yes (for models with laser module)
Working Voltage: 12-24VDC

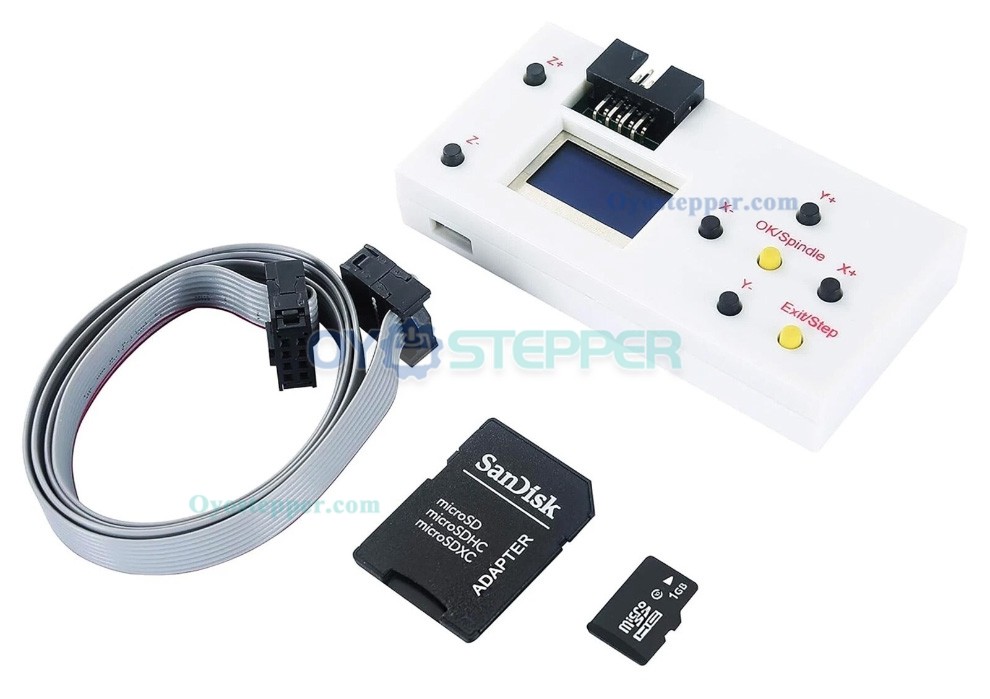

Package Contents

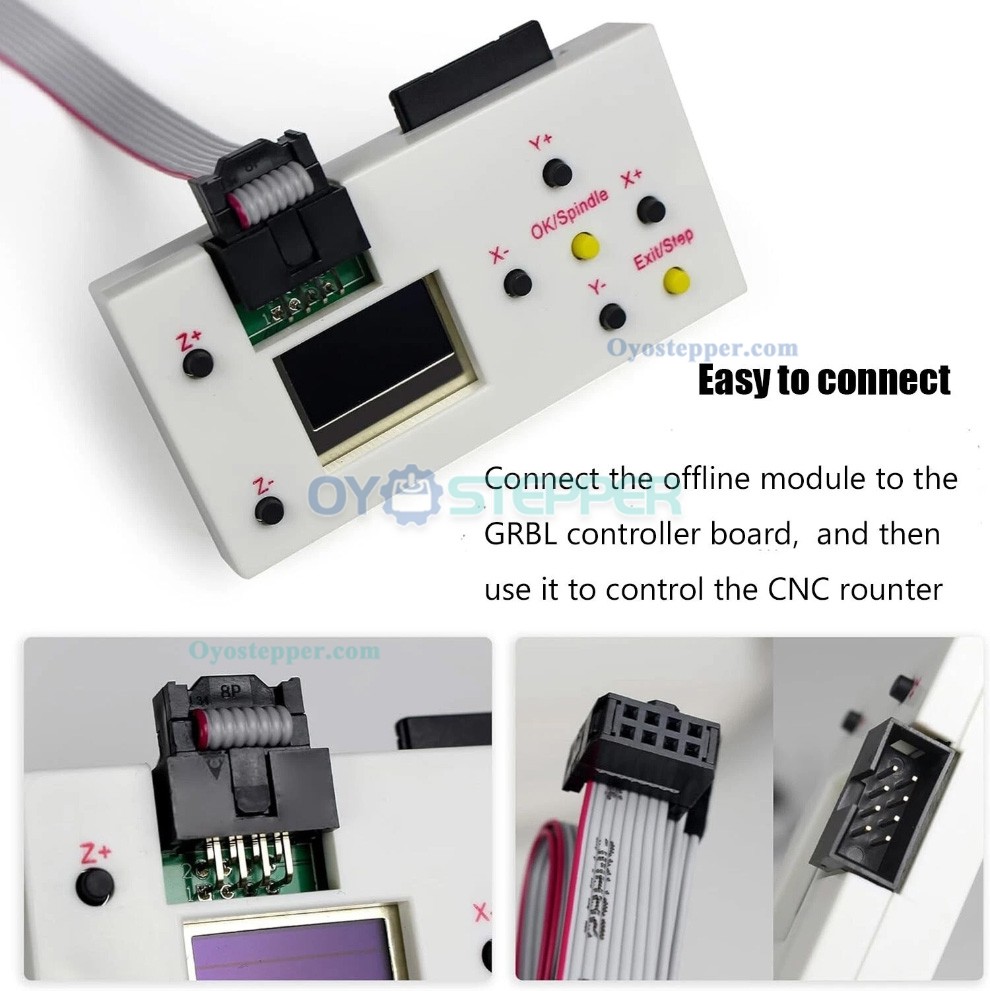

1 × GRBL offline controller
1 × Set of cables

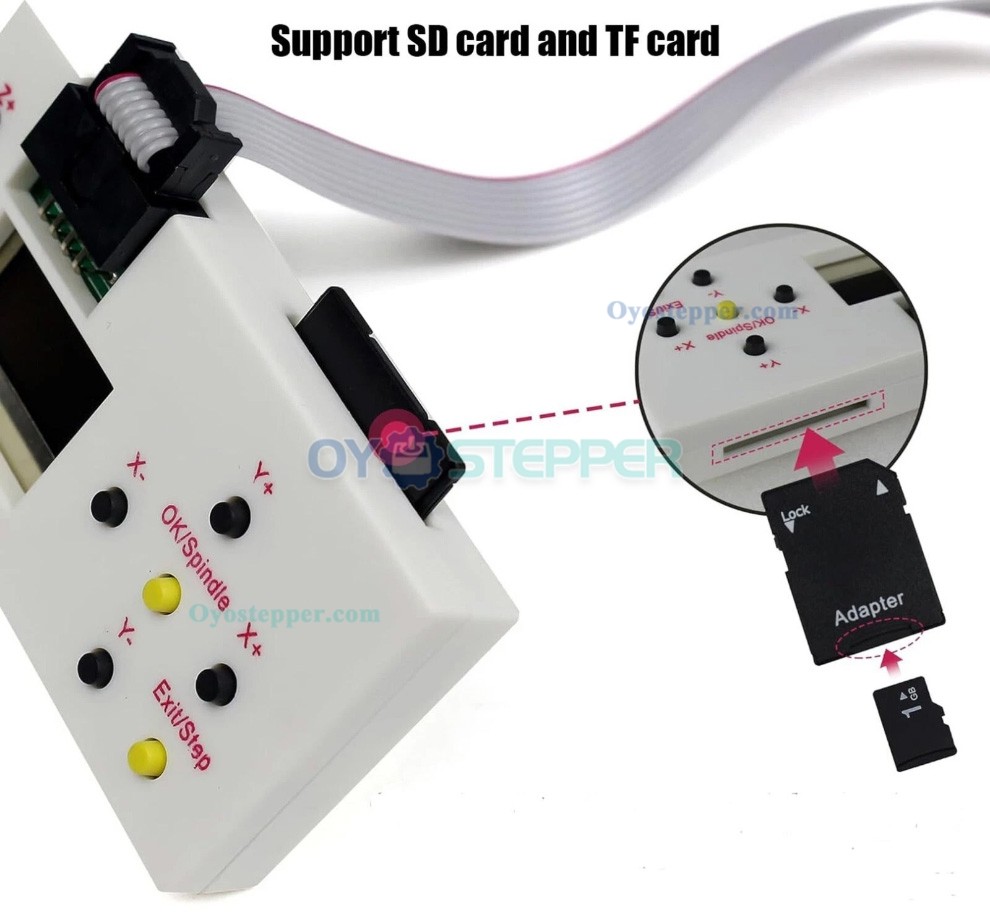

1 × SD card
Application:
