NEMA 14 External Acme Linear Stepper Motor Actuator 1.8 Deg 0.2Nm 1.5A 47mm Stack Lead Revolution 6.35mm(0.25") Lead Screw 150mm

NEMA 14 External Acme Linear Stepper Motor Actuator 1.8 Deg 0.2Nm 1.5A 47mm Stack Lead Revolution 6.35mm(0.25") Lead Screw 150mm
NO.:14E19S1504RF5-150RS
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$42.95
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $40.80 5%
10 $39.94 7%
50 $38.66 10%
100 $37.37 13%
Add To Cart

NEMA 14 External Acme Linear Stepper Motor 1.5A 47mm Stack Screw Lead 6.35mm(0.25") Lead Length 150mm

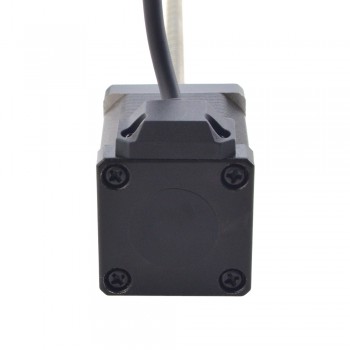

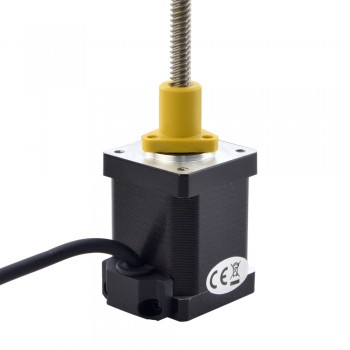

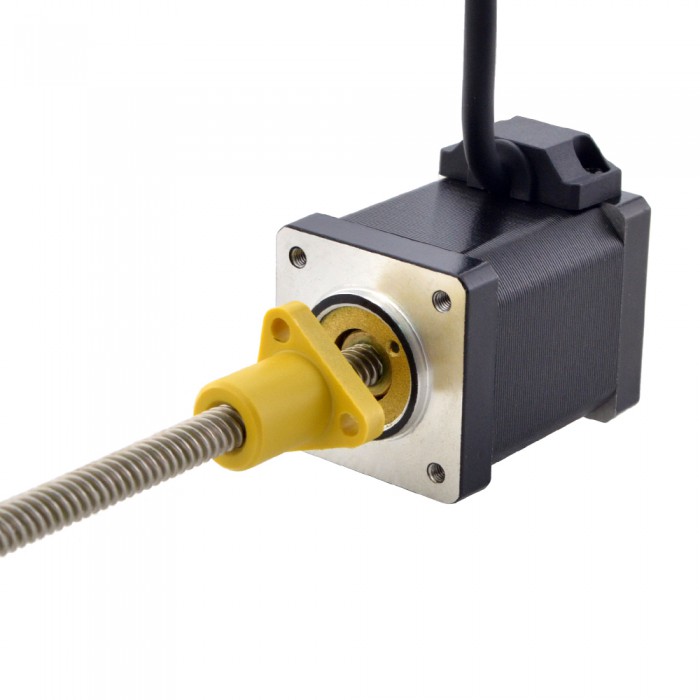

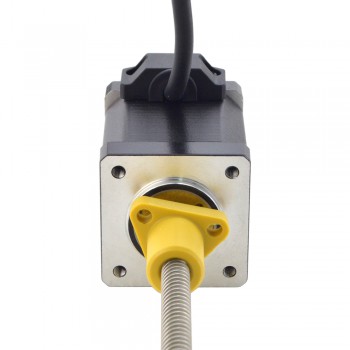

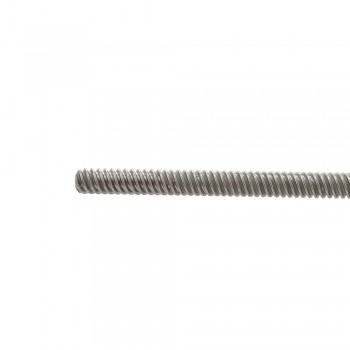

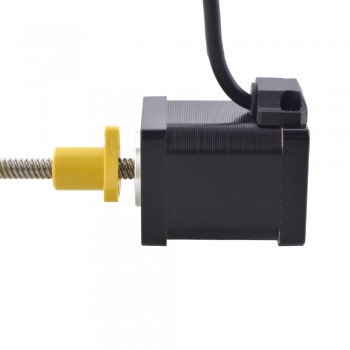

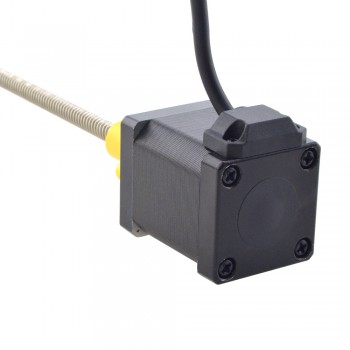

This model is a Nema 14 ACME screw linear stepper motor with a 47mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 6.35mm(0.25") per revolution.



Electrical Specification

Manufacturer Part Number: 14E19S1504RF5-150RS

Motor Type: External(ACME)

Step Angle: 1.8°

Holding Torque: 0.2Nm(28.32oz.in)

Rated Current/phase: 1.5A

Phase Resistance: 1.6ohms

Inductance: 2.3mH±20%(1KHz)



Physical Specification

Frame Size: 35 x 35mm

Body Length: 47mm

Lead Screw Length: 150mm(5.9055")

Lead Screw Diameter: Φ6.35mm(0.25")

Lead/Step: 0.03175mm(0.00125")

Lead Travel/Revolution: 6.35mm(0.25")

Number of Leads: 4

Number of Thread Starts: 4

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources

14E19S1504RF5-150RS_Full_Datasheet.pdf

14E19S1504RF5-150RS.STEP



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 14 External Acme Linear Stepper Motor Actuator 1.8 Deg 0.2Nm 1.5A 47mm Stack Lead Revolution 2.54mm(0.1") Lead Screw 150mm
Next: NEMA 14 External Ball Screw Linear Stepper Motor 1.8 Deg 0.2Nm 1.5A 47mm Stack Lead Revolution 2mm(0.07874") Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 2.3
Phase Resistance(ohm) 1.6
Rated Current (A) 1.5
Step Angle(deg.) 1.8
Linear Motor Type External(Acme)
Physical Specification
Body Length(mm) 34
Frame Size(mm) Nema 11 (28 x 28)
Lead Length(mm) 500
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 150
No. of Lead 4
Lead Travel/Revolution(mm) 6.35
Lead Travel/Step(mm) 0.03175
IP Rating 40
