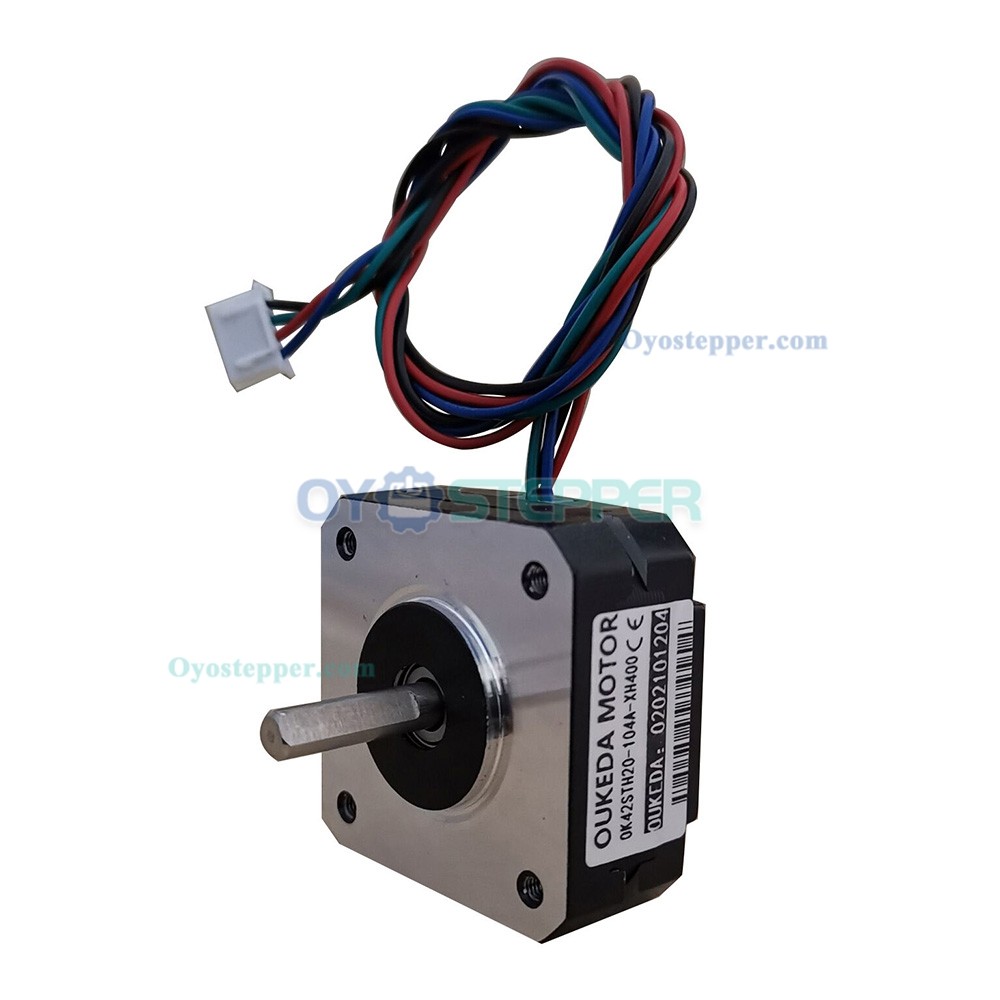

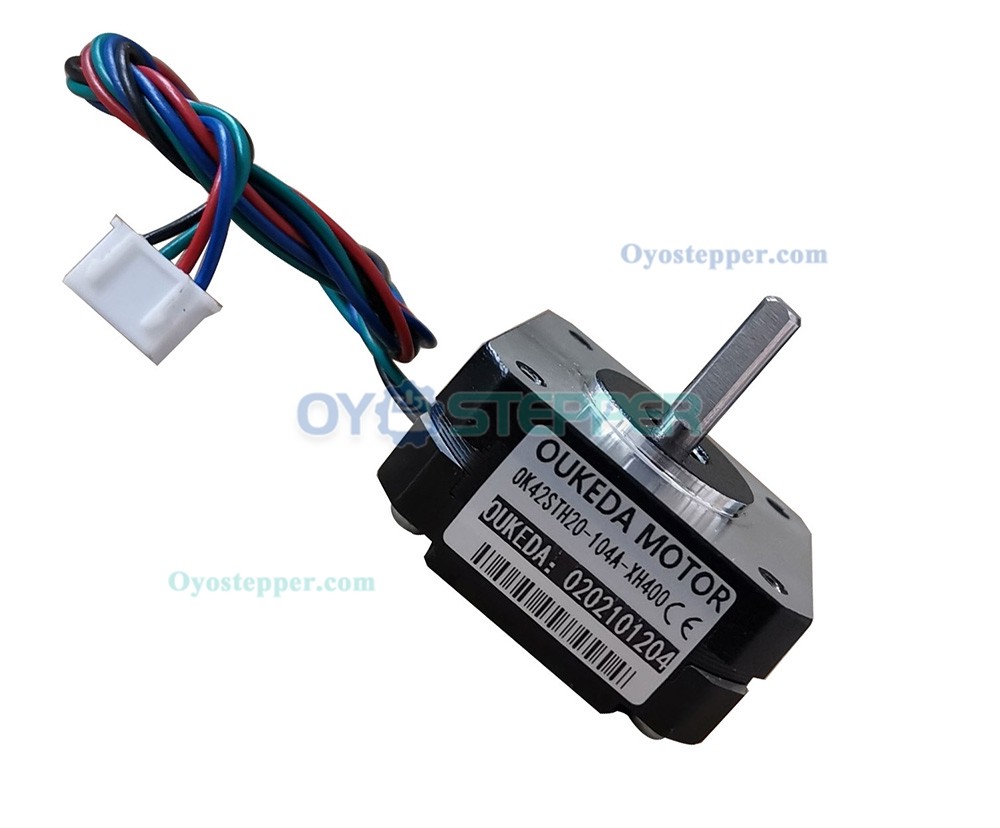

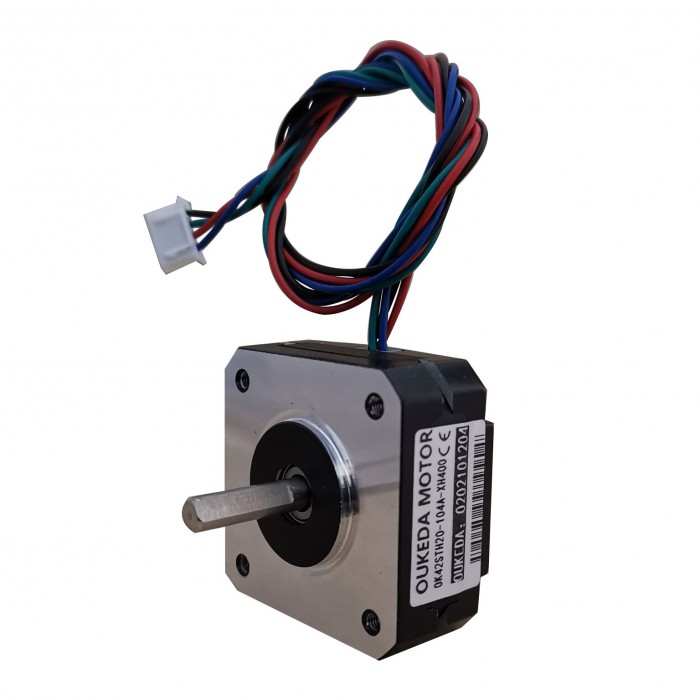

OUKEDA NEMA 17 Thin Stepper Motor 13Ncm 3.5V 1.0A 2 Phase 42 x 42 mm 4 Wires
OUKEDA NEMA 17 Thin Stepper Motor 13Ncm 3.5V 1.0A 2 Phase 42 x 42 mm 4 Wires
Electrical Parameters
Step Angle:1.8°
Phases: 2
Phase Voltage:3.5VDC
Phase Current:1.0A
Static Torque: 0.13 N·m
Use Voltage: 12–36 VDC
Phase Inductance: 4.5 mH ±20%
Phase Resistance: 3.5 Ω ±10% (At 20°C)
Insulation Resistance: 100 MΩ min. (500V DC)
Insulation Class: Class B

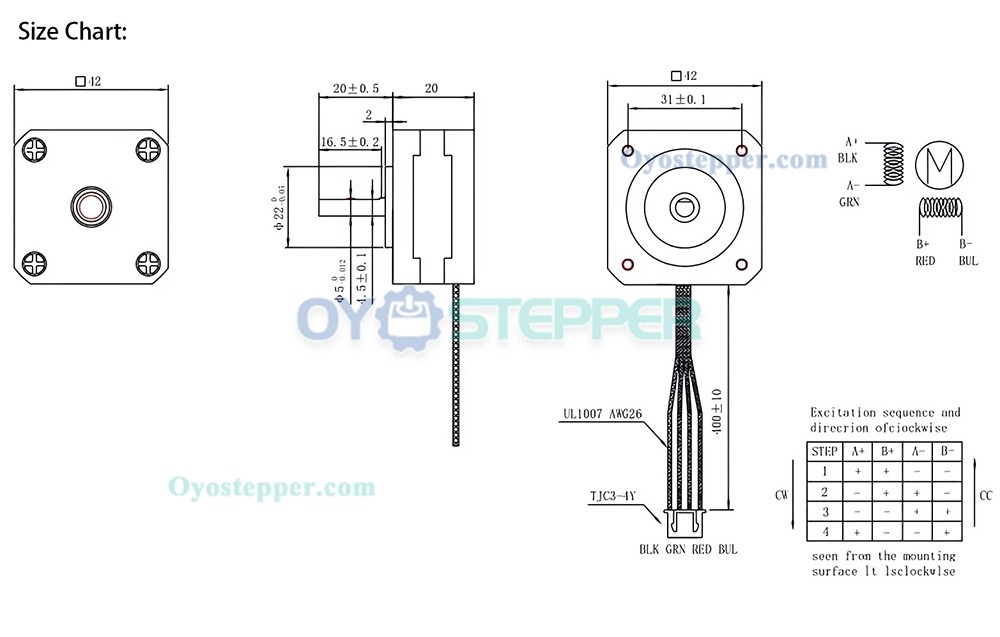

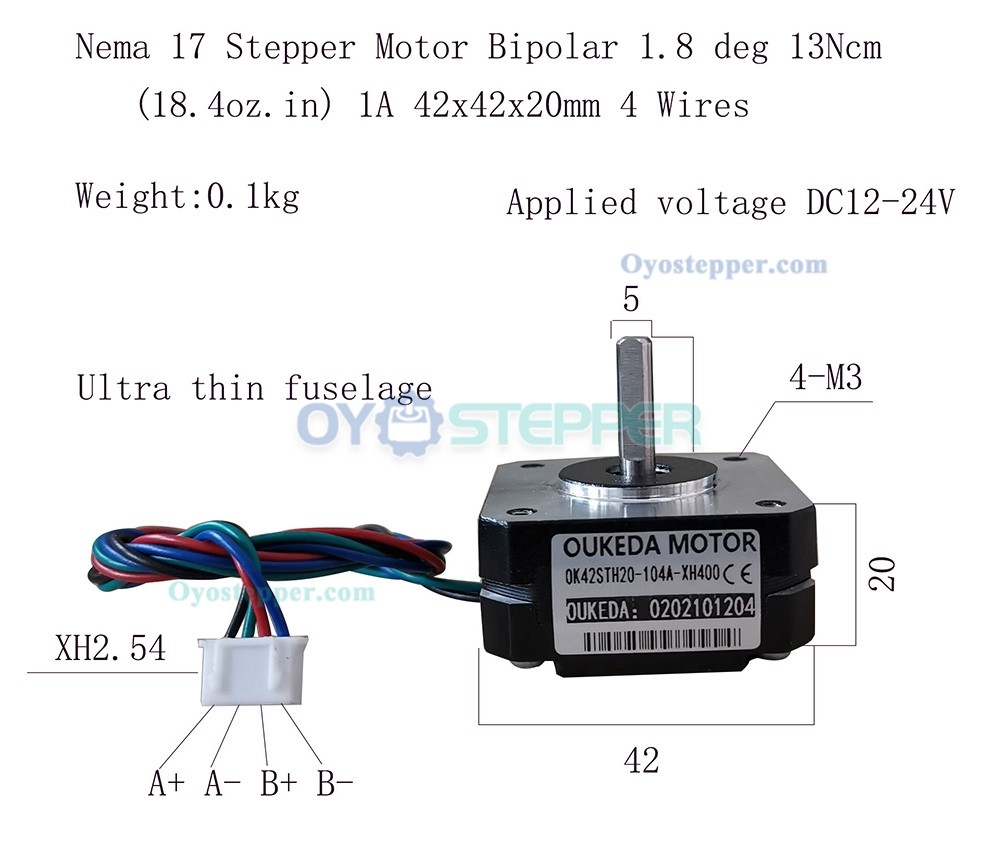

Physical Specification:
Frame Size: 42 x 42 mm
Body Length: 20 mm
Shaft Diameter:Φ5 mm
Shaft Length:16.5 mm
D-cut Length:16.5
Number of Leads: 4
Lead Length: 300 mm
Weight: 100g
.jpg "OUKEDA NEMA 17 Thin Stepper Motor 13Ncm 3.5V 1.0A 2 Phase 42 x 42 mm 4 Wires")
.jpg "OUKEDA NEMA 17 Thin Stepper Motor 13Ncm 3.5V 1.0A 2 Phase 42 x 42 mm 4 Wires")
.jpg "OUKEDA NEMA 17 Thin Stepper Motor 13Ncm 3.5V 1.0A 2 Phase 42 x 42 mm 4 Wires")
.jpg "OUKEDA NEMA 17 Thin Stepper Motor 13Ncm 3.5V 1.0A 2 Phase 42 x 42 mm 4 Wires")
| Physical Specification | |
|---|---|
| D-cut Length | 16.5 |
| Body Length(mm) | 20 |
| Frame Size(mm) | 42 x 42 |
| Matching Motor | Nema 17 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 16.5 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaf |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 13 |
| Rated Current (A) | 1 |
| Step Angle(°) | 1.8 |
| Motor Type | Nema 17 |
| Rated Voltage(V) | 3.5 |
