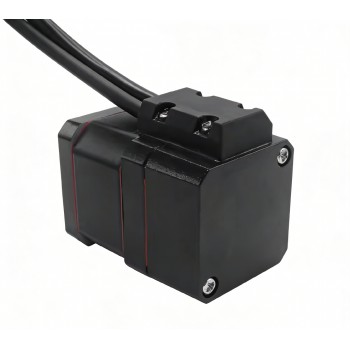

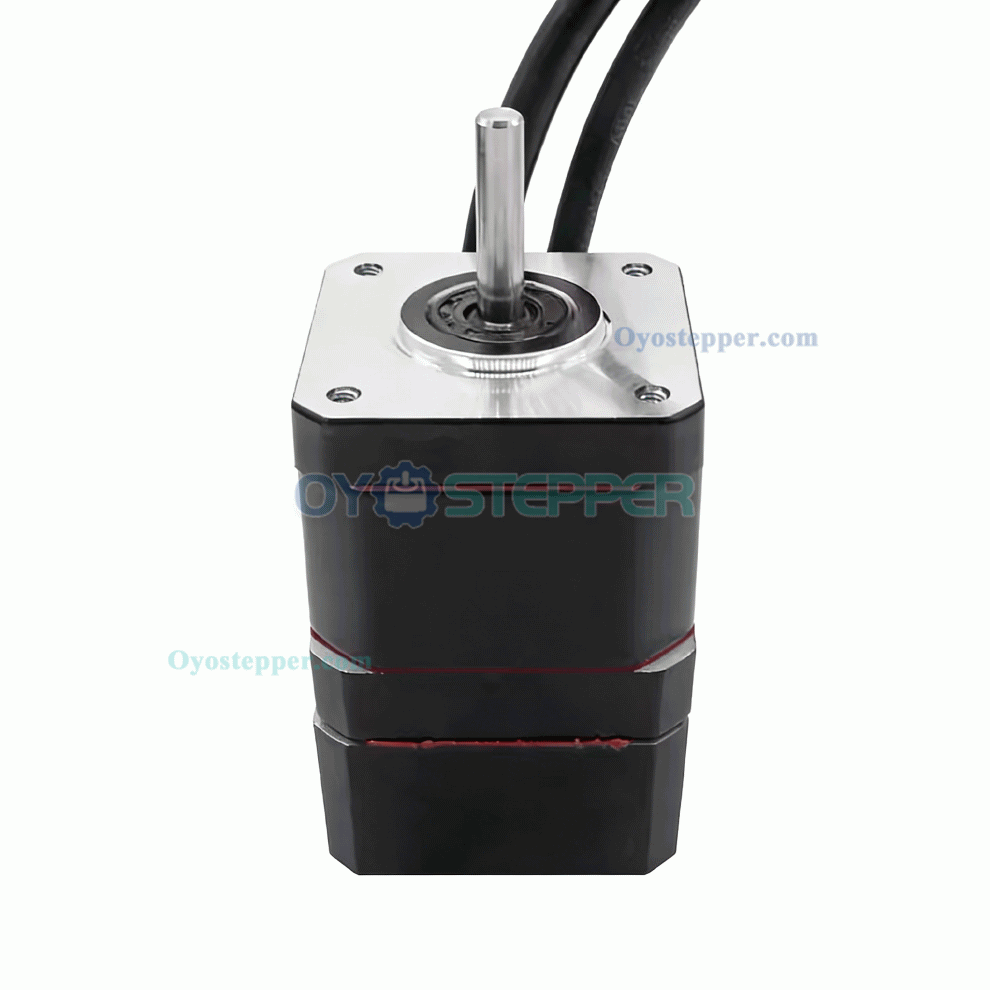

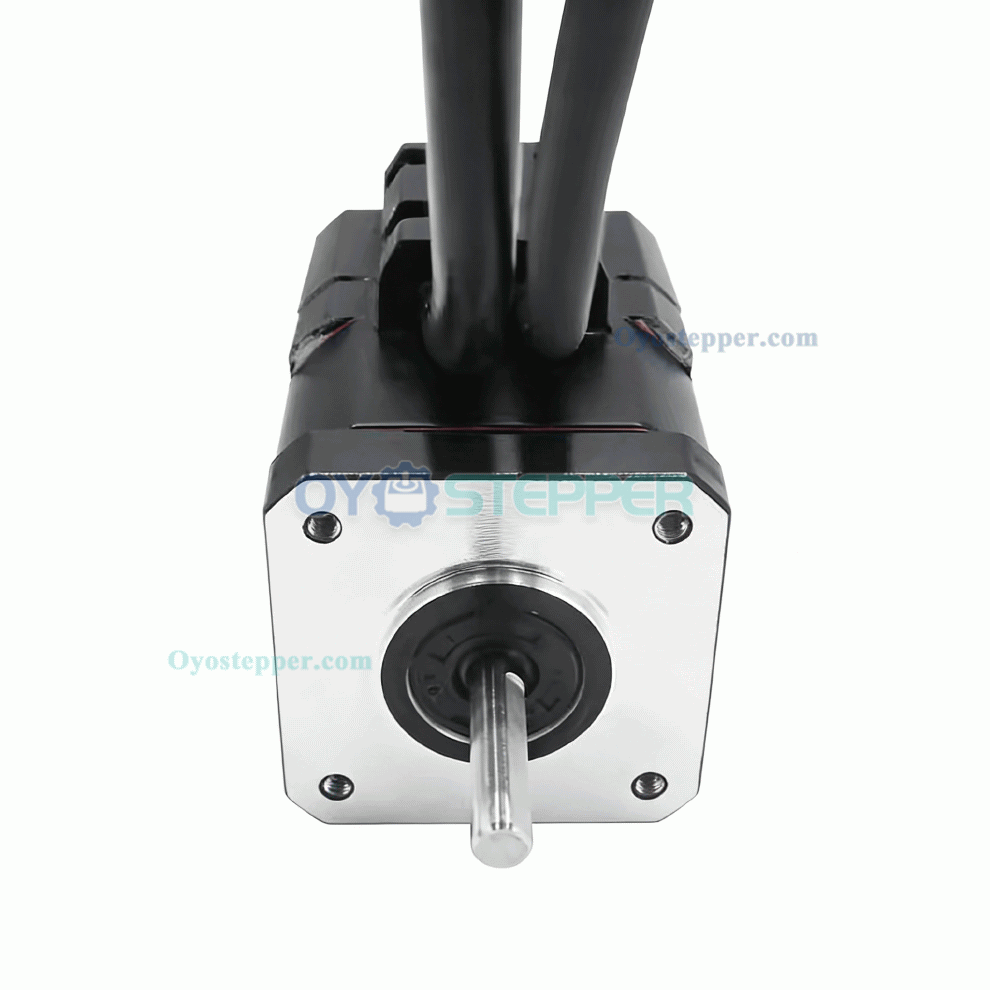

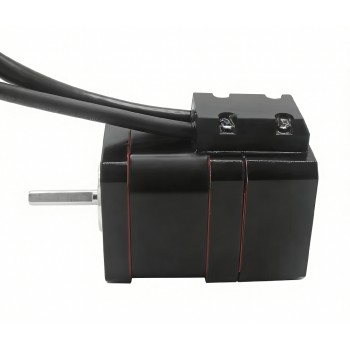

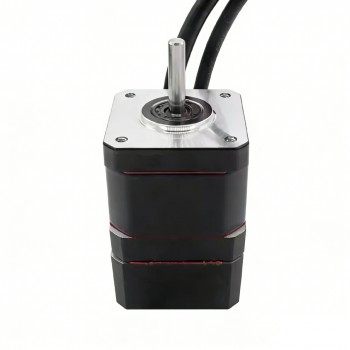

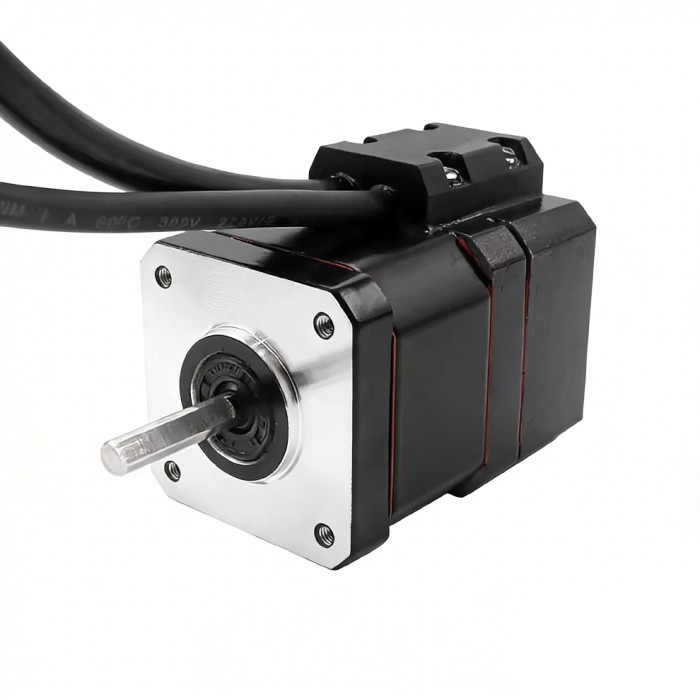

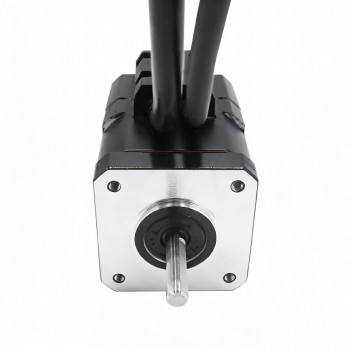

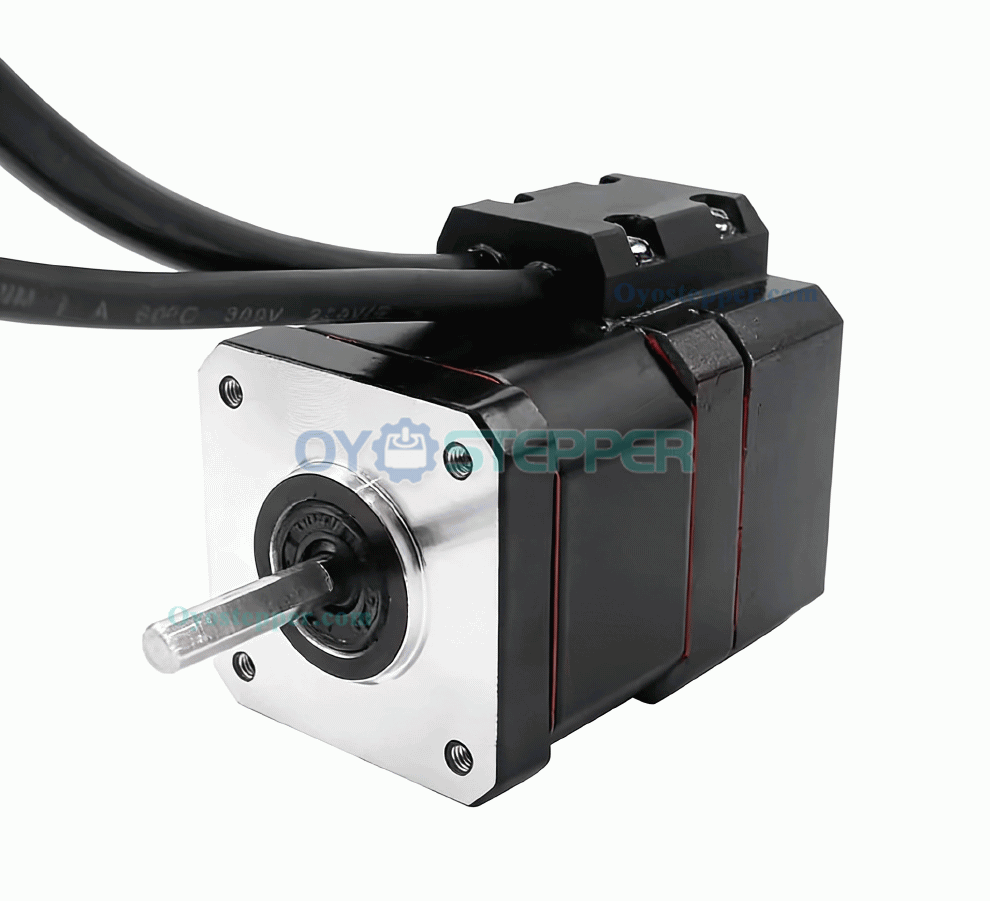

CASUN IP67 Waterproof Nema 17 Stepper Motor 1.8° 1.68A 400mN.m 12V 2 Phase Coaxial Stacked Stepper Motor
CASUN IP67 Waterproof Nema 17 Stepper Motor 1.8° 1.68A 400mN.m 12V 2 Phase Coaxial Stacked Stepper Motor
Specification:
Model:F42SHD4229-24BQH
Step Angle: 1.8 Deg
Rated Voltage:12V
Number of Phase: 2
Rated Current:1.68A
Resistance per Phase: 6.5Ω ±10%
Inductance per Phase: 3.2mH ±20%
Holding Torque: 400 mN.m
Detent Torque: 15 mN.m
Rotor Inertia: 9.5 g.cm²
Insulation Resistance: 100 MΩ min. (500V DC)
Insulation Class: Class B (130°C);

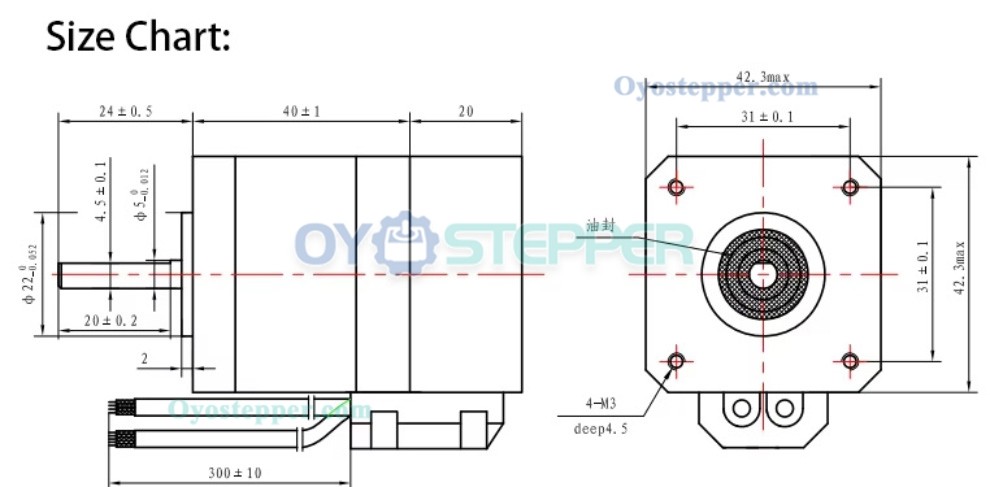

Physical Specification
Frame Size:42 x 42 mm
Body Length:40mm
Shaft Diameter:5mm
Shaft Length: 24mm
D-Cut Shaft Length:20mm
Number of leads:4
Weight:0.4kg
.png "CASUN IP67 Waterproof Nema 17 Stepper Motor 1.8° 1.68A 400mN.m 12V 2 Phase Coaxial Stacked Stepper Motor")
.png "CASUN IP67 Waterproof Nema 17 Stepper Motor 1.8° 1.68A 400mN.m 12V 2 Phase Coaxial Stacked Stepper Motor")
.png "CASUN IP67 Waterproof Nema 17 Stepper Motor 1.8° 1.68A 400mN.m 12V 2 Phase Coaxial Stacked Stepper Motor")
.jpg "CASUN IP67 Waterproof Nema 17 Stepper Motor 1.8° 1.68A 400mN.m 12V 2 Phase Coaxial Stacked Stepper Motor")
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Body Length(mm) | 40 |
| Holding Torque (Ncm) | 40 |
| Motor Length(mm) | 40 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 6.5 |
| Rated Current (A) | 1.68 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Waterproof Level | IP67 |
