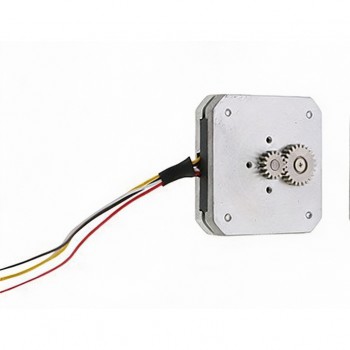

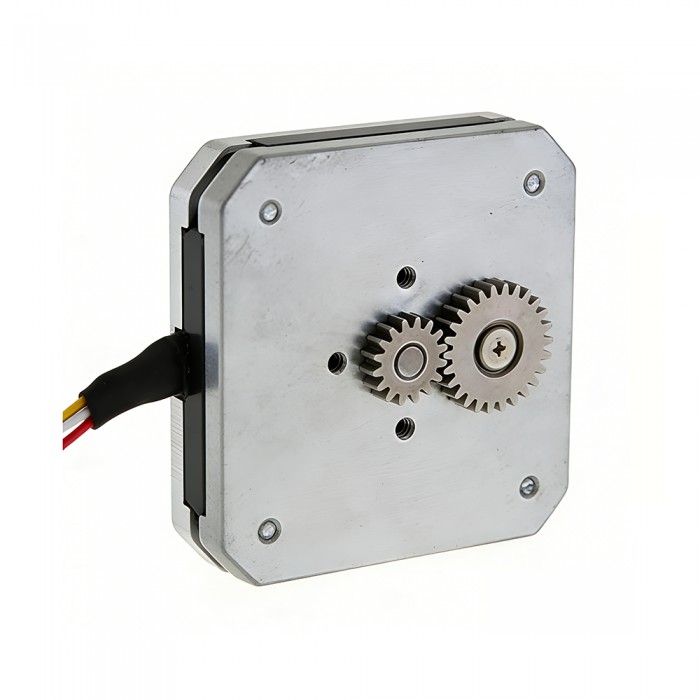

OUKEDA Nema 17 Thin Stepper Motor 1.8° 3.2V 40 mN·m Gear Reducer Pancake Motor for Placement Machine
OUKEDA Mini Nema 17 Thin Stepper Motor 1.8° 3.2V 40Ncm Gear Reducer Motor for Placement Machine
Electrical Parameters
Step Angle: 1.8° ±5%
Number of Phases: 2
Phase Voltage: 3.2VDC
Phase Current: 0.5 A
Phase Resistance: 6.4 Ω ±10% (At 20°C)
Phase Inductance: 2.7 mH ±20%
Static Torque: 40 mN·m
Insulation Class: Class B
Insulation Resistance: 100 MΩ min. (500V DC)
Operating Voltage: 12–24 VDC;

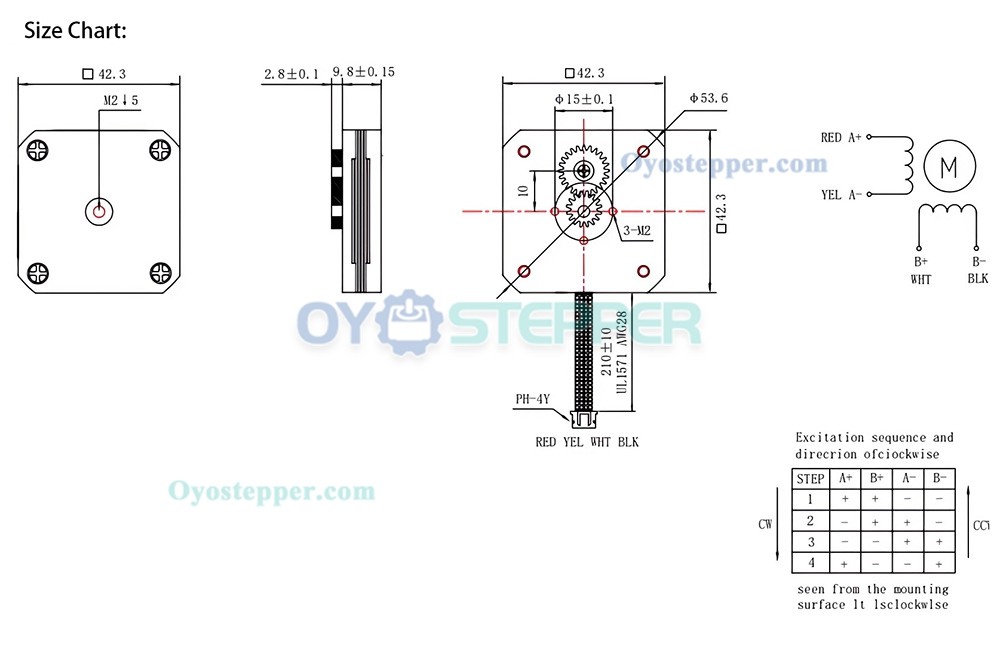

Physical Specification:

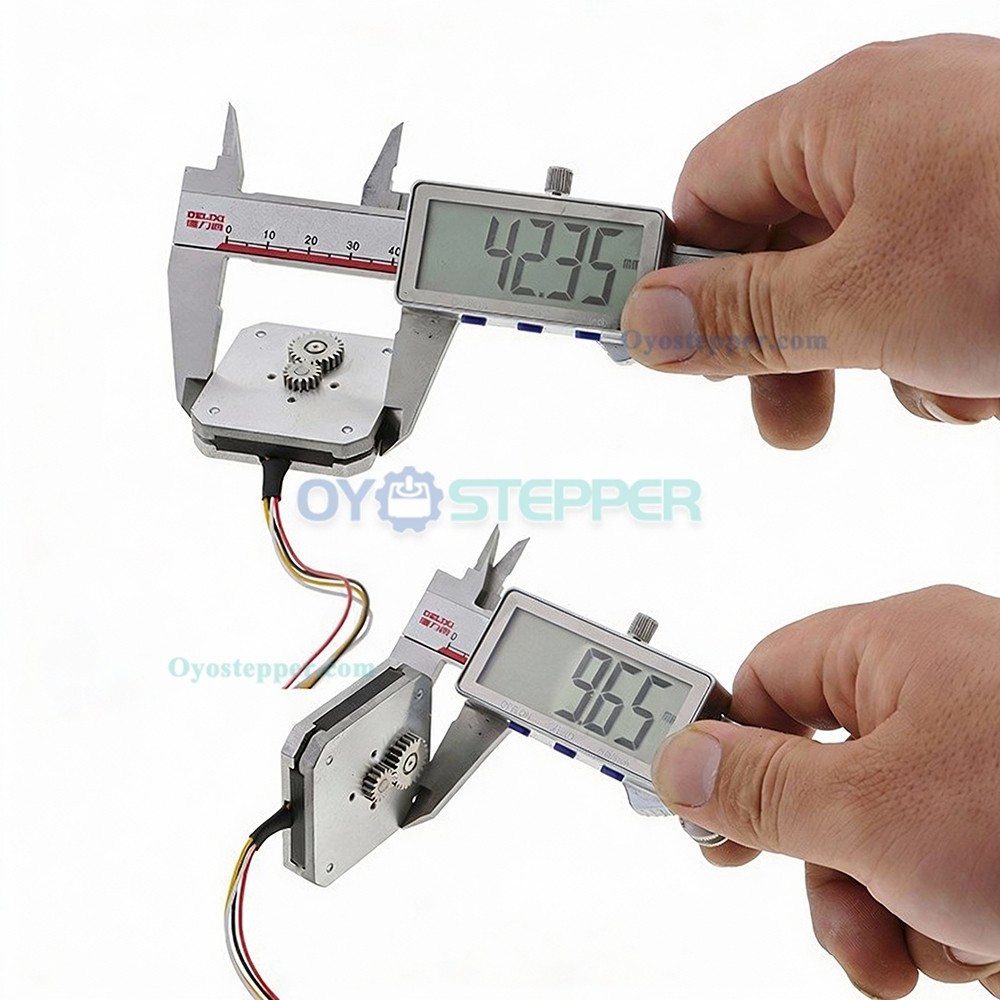

Frame Size: 42 x 42 mm
Shaft Diameter:Φ15 mm
Number of Leads: 4
Lead Length:300 mm
Weight:60g

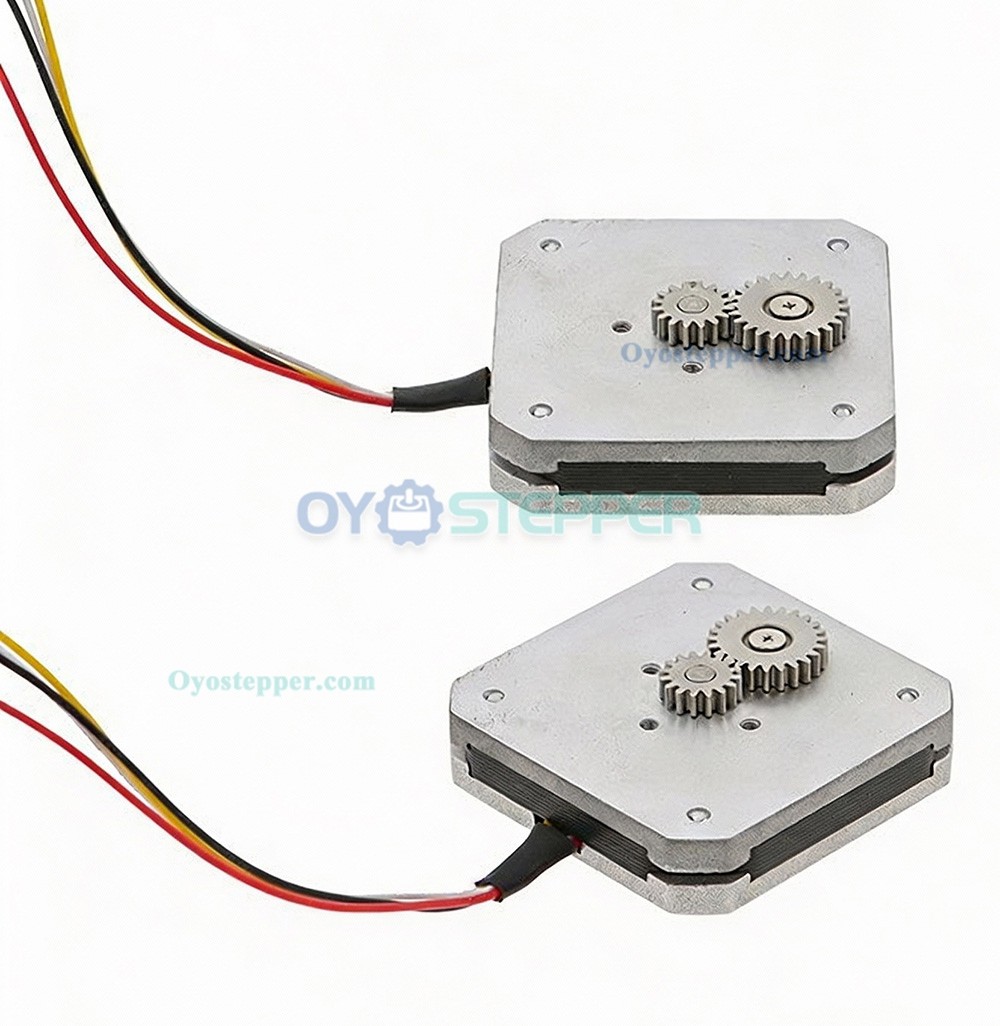

.jpg "OUKEDA Mini Nema 17 Thin Stepper Motor 1.8° 3.2V 40 mN·m Gear Reducer Pancake Motor for Placement Machine")
.jpg "OUKEDA Mini Nema 17 Thin Stepper Motor 1.8° 3.2V 40 mN·m Gear Reducer Pancake Motor for Placement Machine")

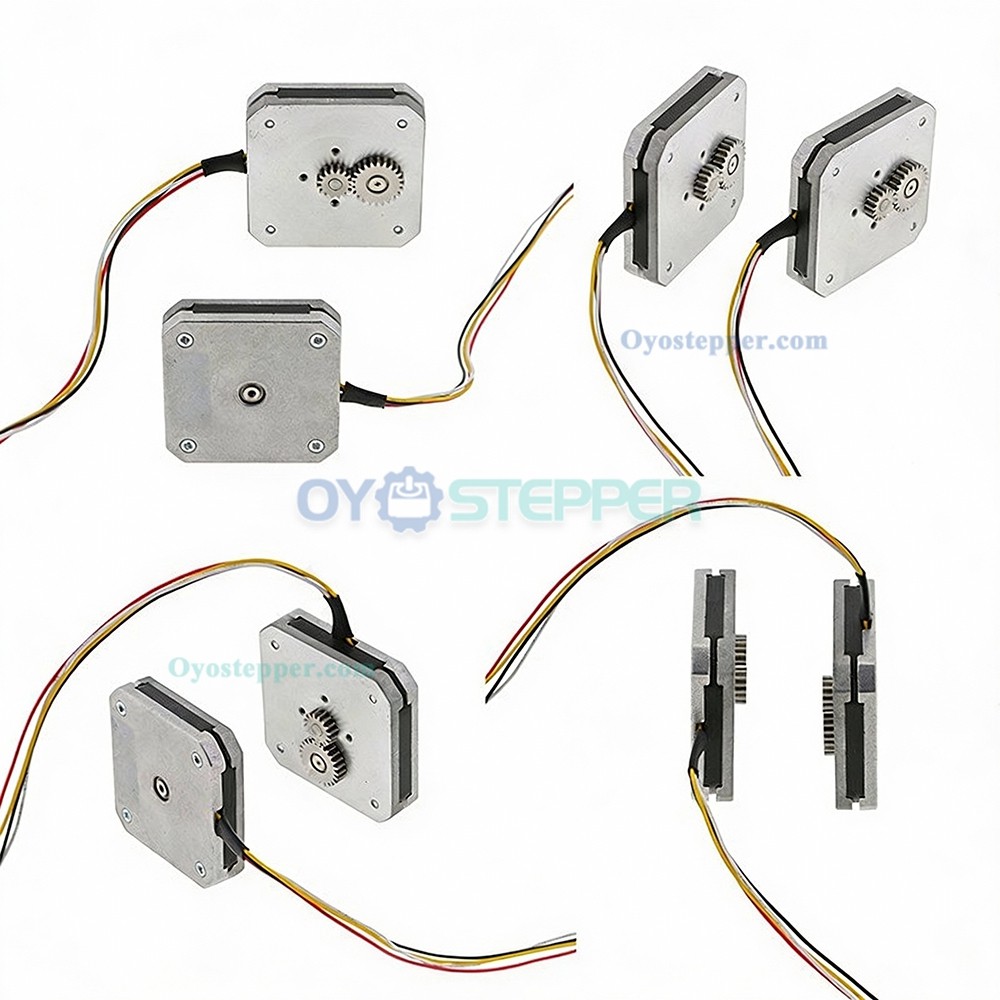

.jpg "OUKEDA Mini Nema 17 Thin Stepper Motor 1.8° 3.2V 40 mN·m Gear Reducer Pancake Motor for Placement Machine")
.jpg "OUKEDA Mini Nema 17 Thin Stepper Motor 1.8° 3.2V 40 mN·m Gear Reducer Pancake Motor for Placement Machine")
| Physical Specification | |
|---|---|
| Frame Size(mm) | 42 x 42 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 15 |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 60 |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 4 |
| Rated Current (A) | 0.5 |
| Step Angle(deg.) | 1.8 |
| Phase Current(A) | 0.5 |
