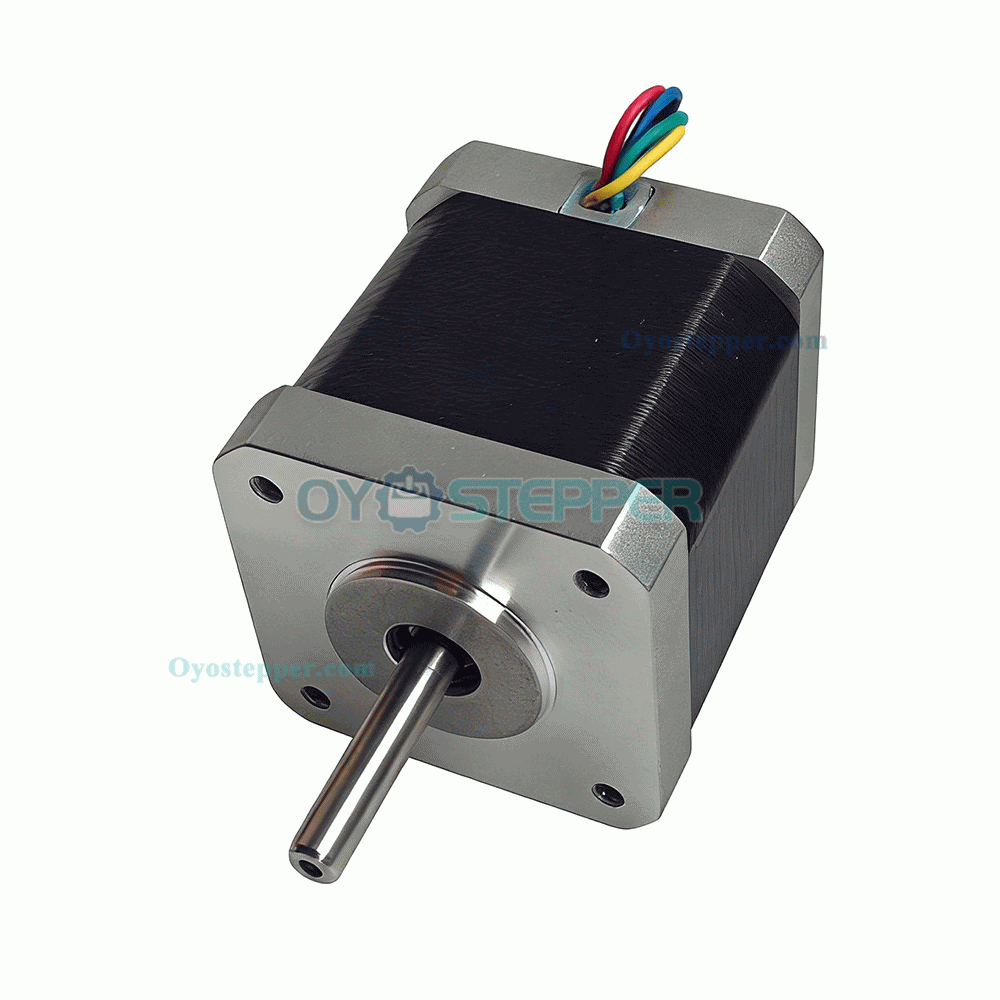

OUKEDA Nema 17 42BYGHW811 Stepper Motor 1.8° 3.12V 2.5A 0.5N·m 42 x 42 mm for 3D Printer
Nema 17 42BYGHW811 Stepper Motor 1.8° 3.12V 2.5A 0.4N·m 42 x 42 mm for 3D Printer
Electrical Parameters
Model:42BYGHW811
Step Angle: 1.8° ±5%
Number of Phases: 2
Phase Voltage: 3.12VDC
Phase Current: 2.5A
Rated Voltage:5-36V
Rated Torque:0.4Nm
Rated Speed:0-1000rpm
Phase Resistance: 1.25 Ω
Phase Inductance: 1.8 mH
Static Torque: 0.5N·m
Insulation Class: Class B

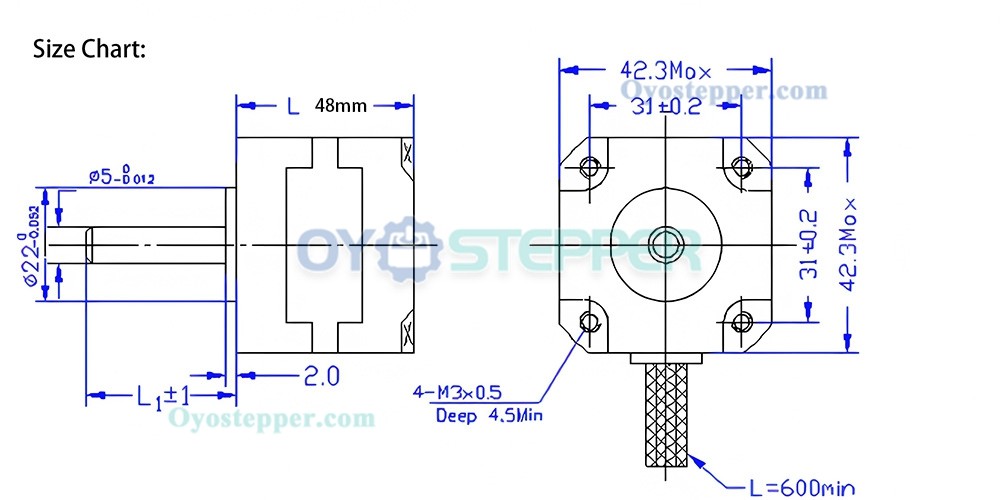

Physical Specification:
Frame Size: 42 x 42 mm
Body length:48mm
Shaft Diameter:5 mm
Number of Leads: 4
Lead Length: 300 mm
Weight:340g
.jpg "OUKEDA Nema 17 42BYGHW811 Stepper Motor 1.8° 3.12V 2.5A 0.5N·m 42 x 42 mm for 3D Printer")
| Physical Specification | |
|---|---|
| Frame Size(mm) | 42 x 42 |
| No. of Lead | 4 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | O |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| No. of Phase | 2 |
| Phase Current(A) | 2.5 |
| Phase Voltage(V) | 3.12 |
