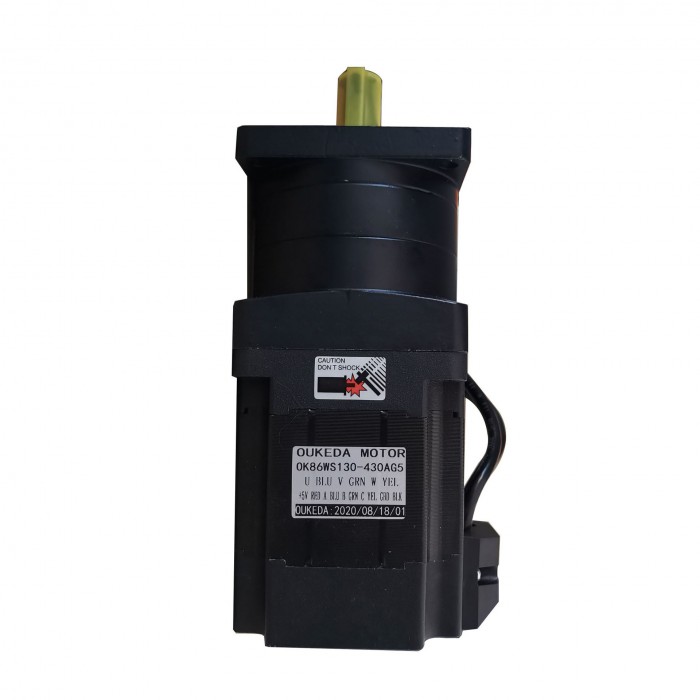

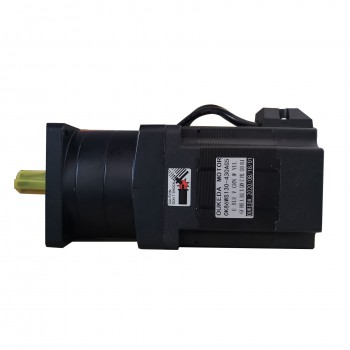

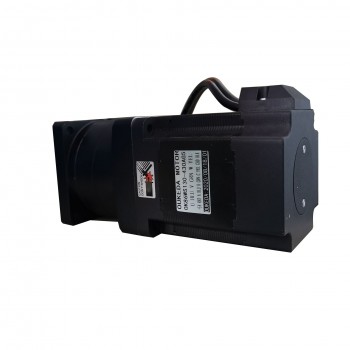

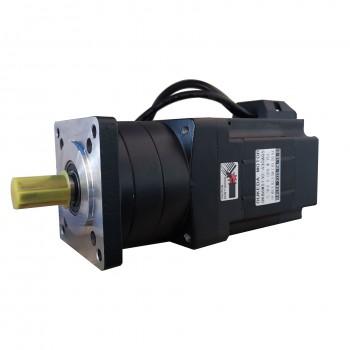

OUKEDA Brushless DC Motor with Planetary Gearbox 3:1-216:1 48V 2.5Nm 3500RPM 86mm

NO.:OK86BLS130-430-AG10
Post a review

Halloween Special Offer 2026:

All Treats No Tricks
6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till November 4th, 2026
Note:No coupon code needed, please place order directly!

Our Price:$175.99

Model:

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$167.19	5%
10	$165.43	6%
50	$163.67	7%
100	$161.91	8%

Add To My Favorites

Description Specification Custom Options Review

OUKEDA Brushless DC Motor with Planetary Gearbox 3:1-216:1 48V 2.5Nm 3500RPM 86mm

Electrical Specification

Manufacturer Part Number: OK86BLS130-430-AG10

Phase: 3

Poles: 8

Rated Voltage: 48VDC

Rated Speed: 3500±10%RPM

Rated Torque: 2.5Nm(354.03oz.in)

Rated Current: 21A

Rated Power: 785W

Insulation Resistance: 100MΩ Min.(500VDC)

Physical Specification:

Frame Size: 86 x 86mm

Body Length: 130mm

Shaft Diameter: 16mm

Shaft Length: 35mm

Shaft Type: Keyway

Keyway Length: 25mm

Number of Leads: 8

Lead Length: 500mm

Weight: Approx.4.3kg

Gearbox Specification
Parameter	Grade 1	Grade 2	Grade 3
Reduction Ratio	3/4/5/6/8	10/13/16/20/24/30/36	52/64/96/100/120/144/150/180/216
Gearbox Length	81mm	95mm	109mm
Rated Load	30	50	60
Maximum Load	50	80	100
Efficiency	95%	90%	85%
Backlash	<18arcmin	<25arcmin	<35arcmin
Noise Level	<60dB	<60dB	<60dB
Gearbox Weight	1.8kg	2.4kg	3.0kg
