Nema 17 External Stepper Motor Linear Bipolar 1.8 Deg 1.3A 5V Lead Screw 250mm
- Manuals and Documentation: Full Datasheet:
Our Price:$85.40

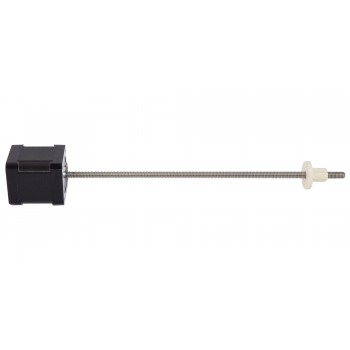

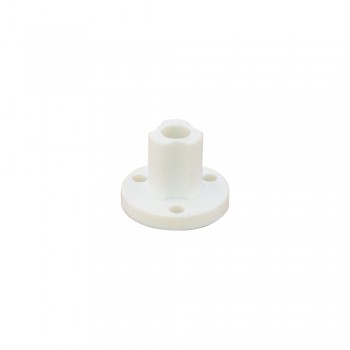

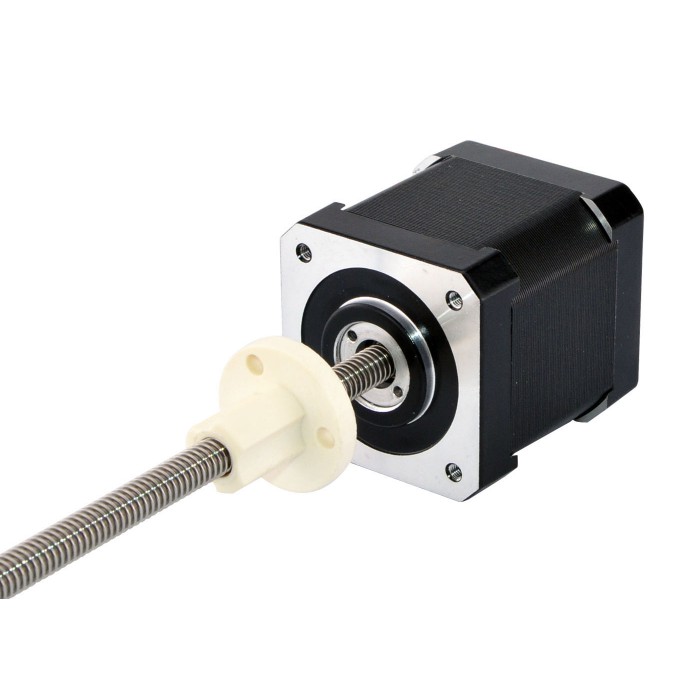

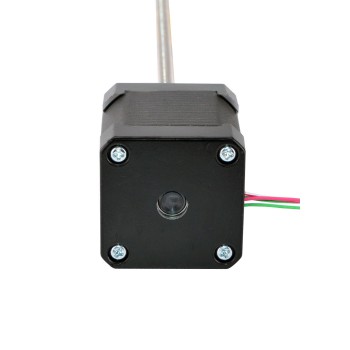

The motor is a Nema 17 stepper motor with 48 mm body, 1.8° step angle, and 1.3 A, integrated with a 5.54 mm (0.2181") × 250 mm (9.8425") lead screw and POM nut, 4.877 mm (0.192") linear travel per revolution.
Electrical Specification
Manufacturer Part Number: 17LS19-1304Q-250E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 133N (300pps)
Rated Current/phase: 1.3A
Phase Resistance: 3.96ohms
Voltage: 5V
Inductance: 6.66mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 250mm(9.8425")

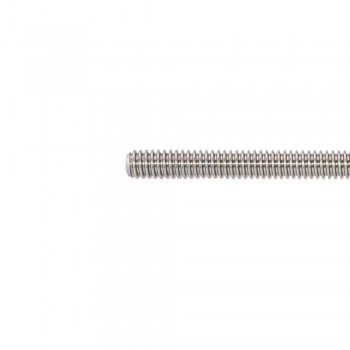

Lead Screw Diameter: Φ5.54mm(0.2181")
Lead/Step: 0.024384mm(0.00096")
Lead Travel/Revolution: 4.877mm(0.192")
Number of Leads: 4
Lead Length: 300mm
Weight: 352g
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green/White | Green |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 6.66 |
| Minimal Thrust(N) | 133 |
| Motor Type | External |
| Phase Resistance(ohm) | 3.96 |
| Rated Current (A) | 1.3 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 47.75 |
| Lead Screw Diameter(mm) | 5.54 |
| Lead Screw Length(mm) | 250 |
| Lead Revolution(mm) | 4.8768 |
| Linear Travel / Step(mm) | 0.024384 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 17 (42 x 42) |
