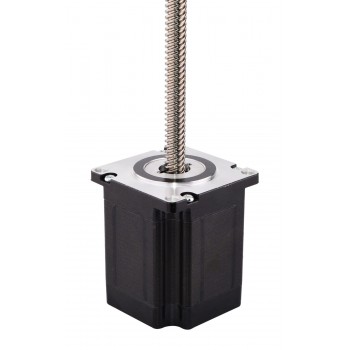

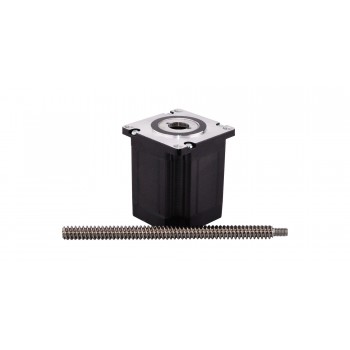

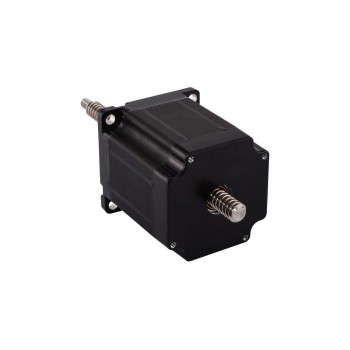

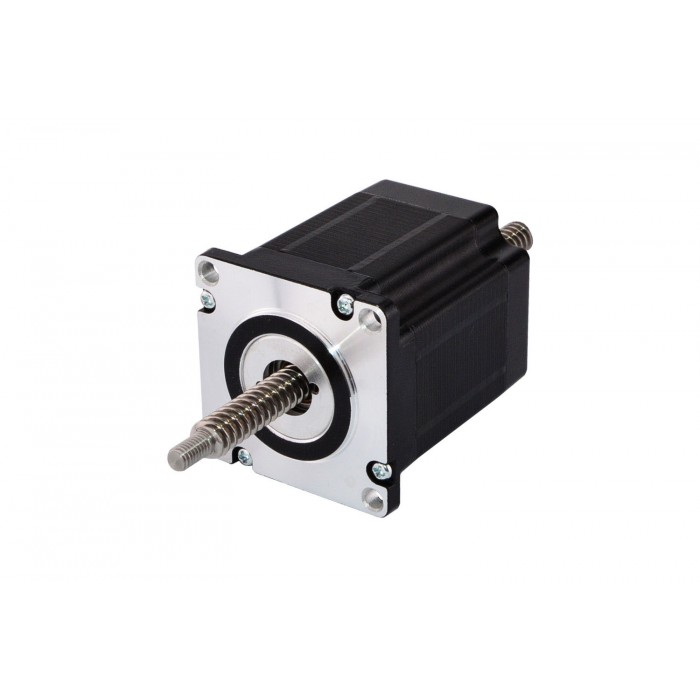

Nema 23 Non-captive Linear Actuator Bipolar 1.8° 2.5A 5V 4 Wires Lead Screw 150mm
Special Offer in April 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$131.17
This model is almost exactly same as Haydon Kerk 57000 series size 23 double stack non-captive stepper motor linear actuator. The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it works with a 9.53mm (0.3752") diameter 150mm (5.9055") length lead screw, the linear travel is 1.5875mm (0.0625") per revolution.
Electrical Specification
- Manufacturer Part Number: 23LS26-2504A-150N
- Motor Type: Non-captive Linear Stepper
- Step Angle: 1.8°
- Minimal Thrust: 750N (300pps)
- Rated Current/phase: 2.5A
- Phase Resistance: 2ohms
- Voltage: 5V
- Inductance: 7.6mH±20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 66mm
- Lead Screw Length: 150mm(5.9055")

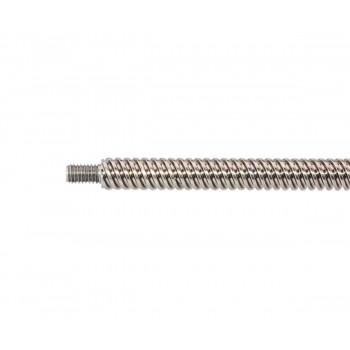

- Lead Screw Diameter: Φ9.53mm(0.3752")
- Lead/Step: 0.0079375mm(0.0003125" )
- Lead Travel/Revolution: 1.5875mm(0.0625")
- Number of Leads: 4
- Lead Length: 300mm
- Weight : 958g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
- Full Datasheet: 23LS26-2504A-150N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 8.2 |
| Minimal Thrust(N) | 750 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 2.1 |
| Rated Current (A) | 2.5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 66 |
| Lead Screw Diameter(mm) | 9.53 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 1.5875 |
| Linear Travel / Step(mm) | 0.0079375 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 23 (57 x 57) |
