Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 2.5A 5V Bipolar 1.8 Deg 150mm Lead Screw

Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 2.5A 5V Bipolar 1.8 Deg 150mm Lead Screw
NO.:23LS26-25041-150N
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$131.17
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $124.61 5%
5 $121.99 7%
10 $118.05 10%
50 $114.12 13%
Add To Cart

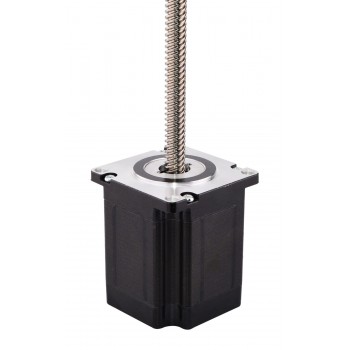

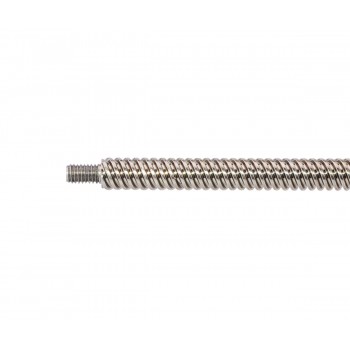

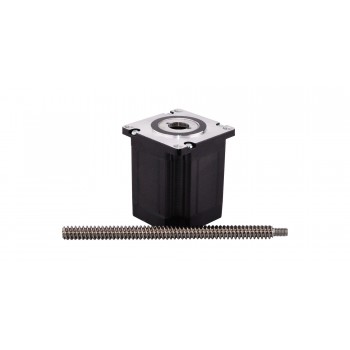

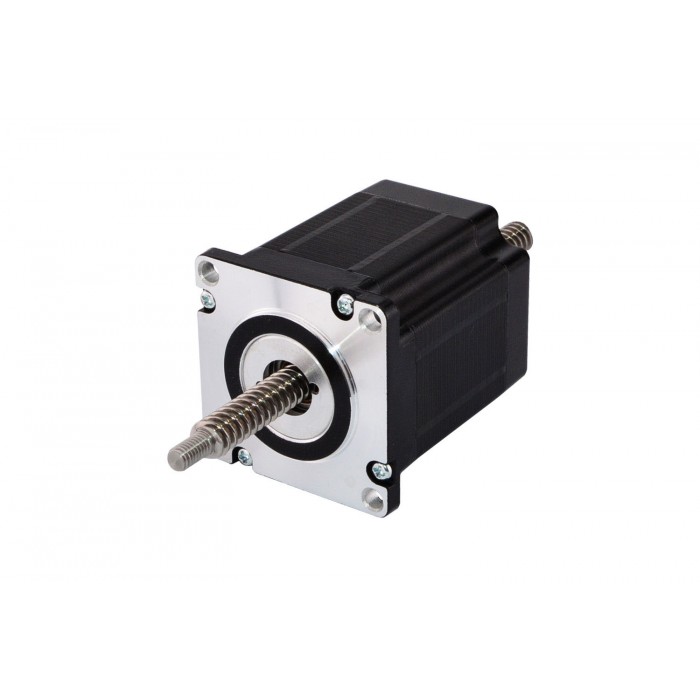

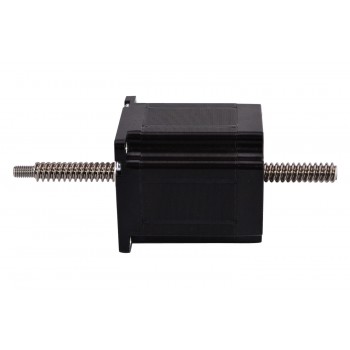

This model is almost exactly same as Haydon Kerk 57000 series size 23 double stack non-captive stepper motor linear actuator. The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it works with a 9.53mm (0.3752") diameter 150mm (5.9055") length lead screw, the linear travel is 5.08mm (0.2") per revolution.

Electrical Specification

Manufacturer Part Number: 23LS26-25041-150N

Motor Type: Non-captive Linear Stepper

Step Angle: 1.8°

Minimal Thrust: 300N (300pps)

Rated Current/phase: 2.5A

Phase Resistance: 2ohms

Voltage: 5V

Inductance: 7.6mH±20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 66mm

Lead Screw Length: 150mm(5.9055")

Lead Screw Diameter: Φ9.53mm(0.3752")

Lead/Step: 0.0254mm(0.001" )

Lead Travel/Revolution: 5.08mm(0.2")

Number of Leads: 4

Lead Length: 300mm

Weight : 958g



Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Full Datasheet: 23LS26-25041-150N.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Non-captive Linear Motor Actuator Bipolar 1.8 Deg 2.5A 5V 4 Wires Lead Screw 150mm
Next: Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 2.5A 5V Lead Revolution 10.16mm/0.4" Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 8.2
Minimal Thrust(N) 300
Motor Type Non-Captive
Phase Resistance(ohm) 2.1
Rated Current (A) 2.5
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 66
Lead Screw Diameter(mm) 9.53
Lead Screw Length(mm) 150
Lead Revolution(mm) 5.08
Linear Travel / Step(mm) 0.0254
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 23 (57 x 57)
