Nema 34 Stepper Motor External Linear Actuator Bipolar 1.8 Deg 3.12A 5V Lead Screw 150mm 79mm Stack Lead Revolution 2.54mm(0.1")
Special Offer in December 2023:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$223.26

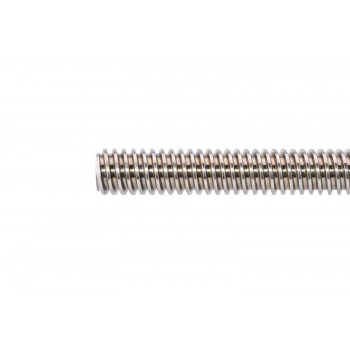

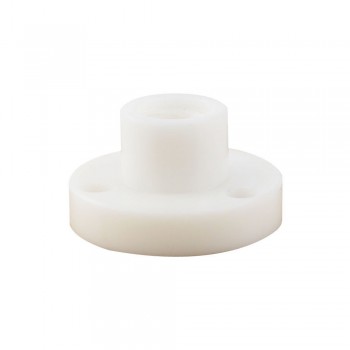

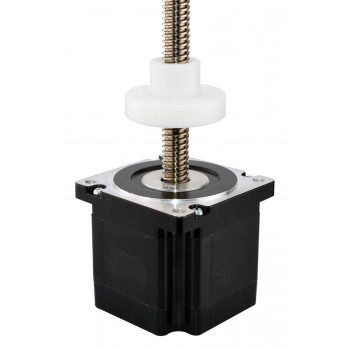

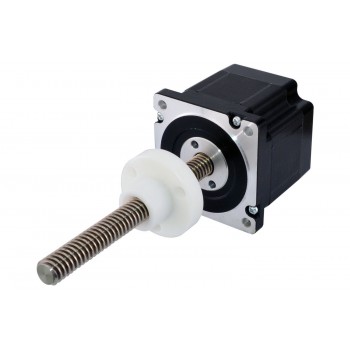

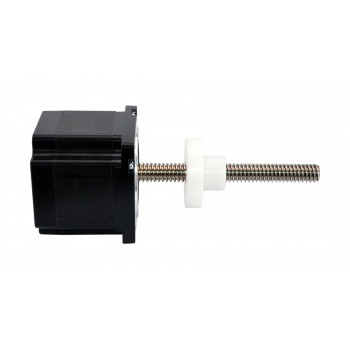

This model is almost exactly same as Haydon Kerk 86000 series size 34 external stepper motor linear actuator. The motor part is 79mm body 1.8 degree 3.12A Nema 34 stepper motor, and it has integrated with a 15.88mm (0.625") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 2.54mm (0.1") per revolution.
Electrical Specification
- Manufacturer Part Number: 34LS31-31243-150E
- Motor Type: External Linear Stepper
- Step Angle: 1.8°
- Minimal Thrust: 1000N (300pps)
- Rated Current/phase: 3.12A
- Phase Resistance: 1.6ohms
- Voltage: 5V
- Inductance: 8.8mH±20%(1KHz)
Physical Specification
- Frame Size: 86x 86mm
- Body Length: 79mm
- Lead Screw Length: 150mm(5.9055")
- Lead Screw Diameter: Φ15.88mm(0.625")
- Lead/Step: 0.0127mm(0.0005" )
- Lead Travel/Revolution: 2.54mm(0.1")
- Number of Leads: 4
- Lead Length: 300mm
- Weight : 2300g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
- Full Datasheet: 34LS31-31243-150E.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 8.8 |
| Minimal Thrust(N) | 1000 |
| Motor Type | External |
| Phase Resistance(ohm) | 1.6 |
| Rated Current (A) | 3.12 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 78.56 |
| Lead Screw Diameter(mm) | 15.88 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 2.54 |
| Linear Travel / Step(mm) | 0.0127 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 34 (86 x 86) |
