Nema 34 Stepper Motor External Linear Actuator Bipolar 1.8 Deg 3.12A 5V Lead Screw 150mm Lead Revolution 6.35mm(0.25")

Nema 34 Stepper Motor External Linear Actuator Bipolar 1.8 Deg 3.12A 5V Lead Screw 150mm Lead Revolution 6.35mm(0.25")
NO.:34LS31-3124C-150E
Post a review
Our Price:$223.26
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $212.10 5%
5 $207.63 7%
10 $200.93 10%
50 $194.24 13%
Add To Cart

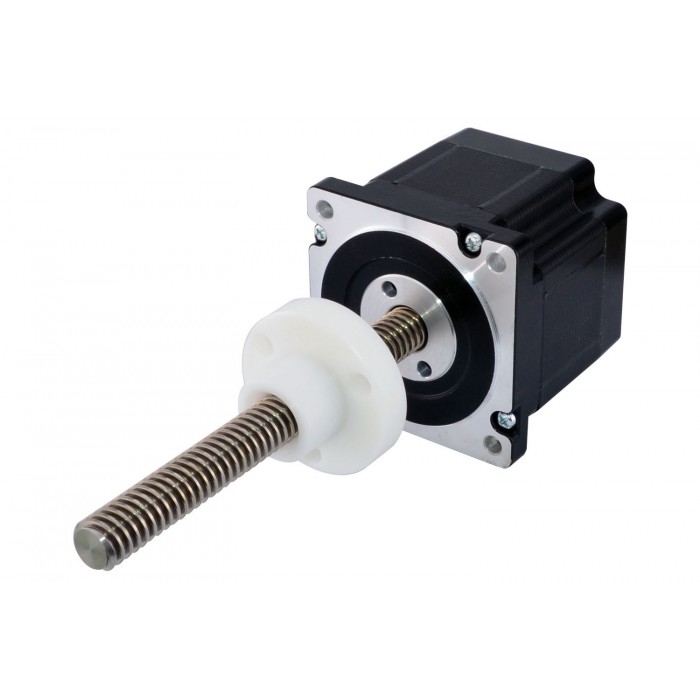

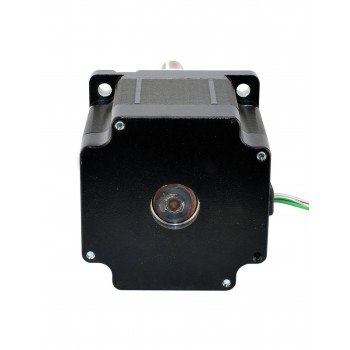

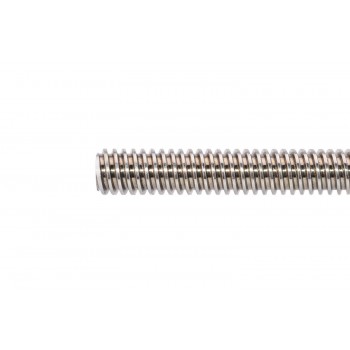

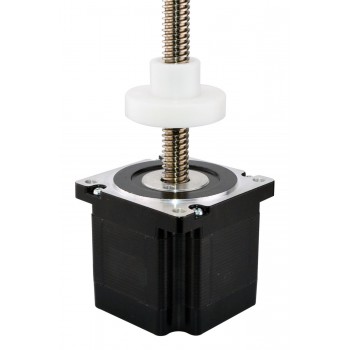

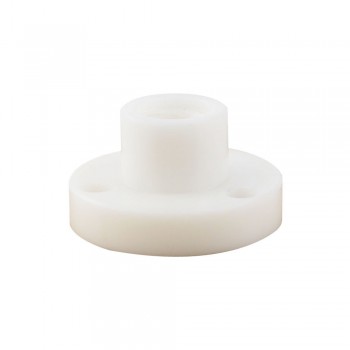

This model is almost exactly same as Haydon Kerk 86000 series size 34 external stepper motor linear actuator. The motor part is 79mm body 1.8 degree 3.12A Nema 34 stepper motor, and it has integrated with a 15.88mm (0.625") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 6.35mm (0.25") per revolution.

Electrical Specification

  • Manufacturer Part Number: 34LS31-3124C-150E
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 800N (300pps)
  • Rated Current/phase: 3.12A
  • Phase Resistance: 1.6ohms
  • Voltage: 5V
  • Inductance: 8.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 86x 86mm
  • Body Length: 79mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ15.88mm(0.625")
  • Lead/Step: 0.03175mm(0.00125" )
  • Lead Travel/Revolution: 6.35mm(0.25")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 2300g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 34 Stepper Motor External Linear Actuator Bipolar 1.8 Deg 3.12A 5V Lead Screw 150mm 79mm Stack Lead Revolution 2.54mm(0.1")
Next: Nema 34 Stepper Motor External Linear Actuator Bipolar 1.8 Deg 5V 3.12A Lead Revolution 2.54mm(0.1") Lead Screw 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 8.8
Minimal Thrust(N) 800
Motor Type External
Phase Resistance(ohm) 1.6
Rated Current (A) 3.12
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 78.56
Lead Screw Diameter(mm) 15.88
Lead Screw Length(mm) 150
Lead Revolution(mm) 6.35
Linear Travel / Step(mm) 0.03175
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 34 (86 x 86)
