Nema 34 Linear Stepper Motor External Bipolar 1.8 Deg 5V 3.12A 79mm Stack Lead Revolution 6.35mm/0.25" Lead Screw 250mm

Nema 34 Linear Stepper Motor External Bipolar 1.8 Deg 5V 3.12A 79mm Stack Lead Revolution 6.35mm/0.25" Lead Screw 250mm
NO.:34LS31-3124C-250E
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$251.17
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $238.61 5%
5 $233.59 7%
10 $226.05 10%
50 $218.52 13%
Add To Cart

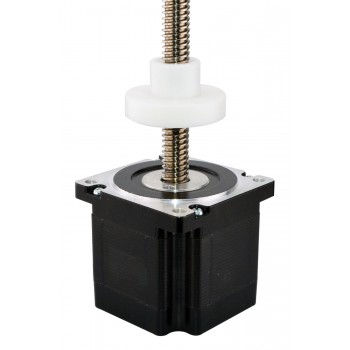

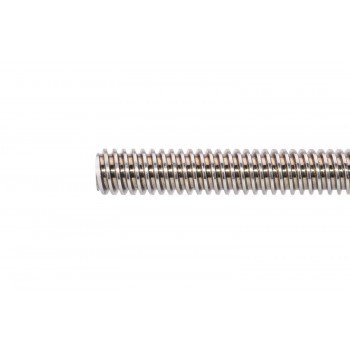

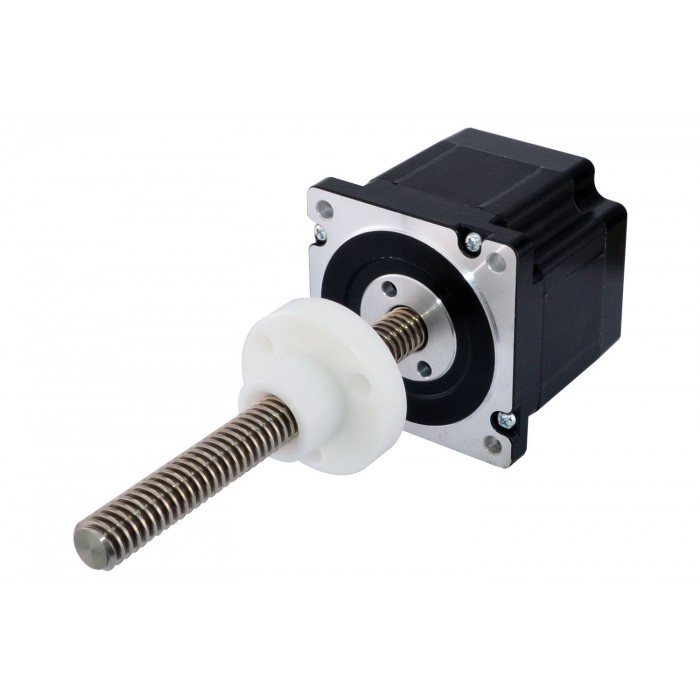

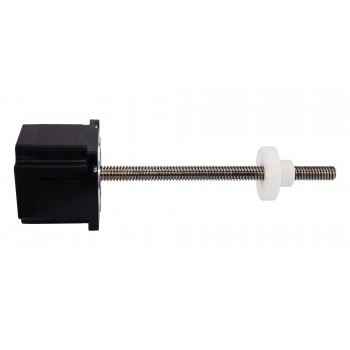

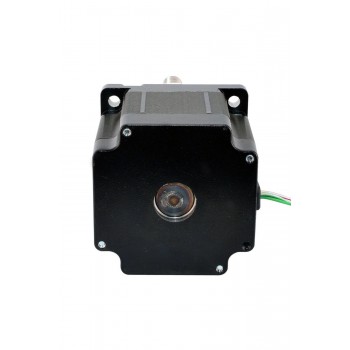

This model is almost exactly same as Haydon Kerk 86000 series size 34 external stepper motor linear actuator. The motor part is 79mm body 1.8 degree 3.12A Nema 34 stepper motor, and it has integrated with a 15.88mm (0.625") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 6.35mm (0.25") per revolution.

Electrical Specification

  • Manufacturer Part Number: 34LS31-3124C-250E
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 800N (300pps)
  • Rated Current/phase: 3.12A
  • Phase Resistance: 1.6ohms
  • Voltage: 5V
  • Inductance: 8.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 86x 86mm
  • Body Length: 79mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ15.88mm(0.625")
  • Lead/Step: 0.03175mm(0.00125" )
  • Lead Travel/Revolution: 6.35mm(0.25")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 2300g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 34 Stepper Motor External Linear Actuator Bipolar 1.8 Deg 5V 3.12A Lead Revolution 2.54mm(0.1") Lead Screw 250mm
Next: 200mm 11mm Diameter 2mm Pitch Trapezoidal Lead Screw for Linear Stepper Motor Actuator
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 8.8
Minimal Thrust(N) 800
Motor Type External
Phase Resistance(ohm) 1.6
Rated Current (A) 3.12
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 78.56
Lead Screw Diameter(mm) 15.88
Lead Screw Length(mm) 250
Lead Revolution(mm) 6.35
Linear Travel / Step(mm) 0.03175
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 34 (86 x 86)
