Nema 34 Stepper Motor External 79mm Stack 3.12A Lead 2.54mm/0.1" Length 250mm

Nema 34 Stepper Motor External 79mm Stack 3.12A Lead 2.54mm/0.1" Length 250mm
NO.:34LS31-31243-250E
Review: Post a review
Special Offer in May 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $30 Off Over $500
  • $50 Off Over $800
  • $60 Off Over $1000
  • $80 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$251.17
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $238.61 5%
5 $233.59 7%
10 $226.05 10%
50 $213.49 15%
Add To Cart

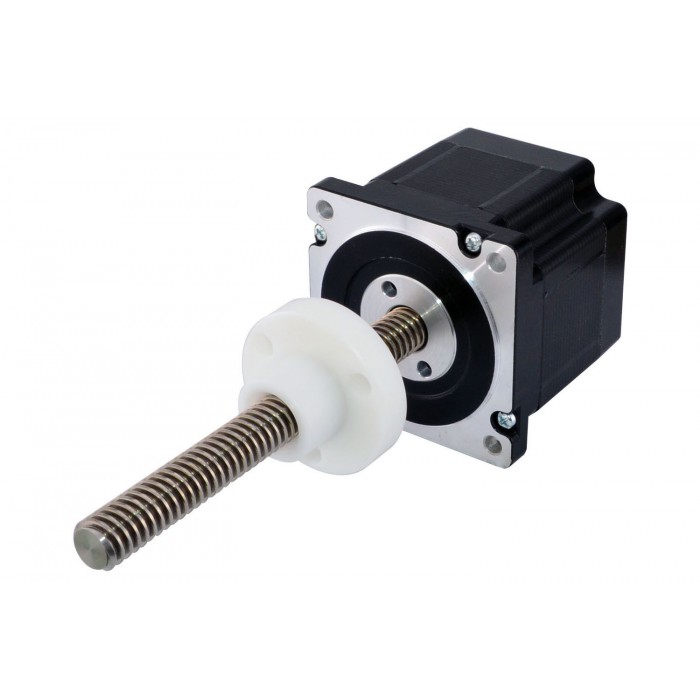

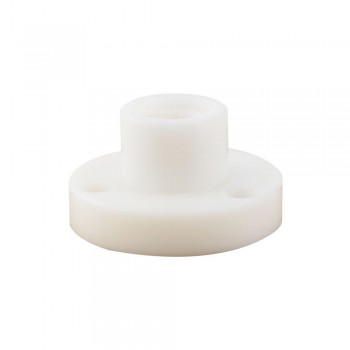

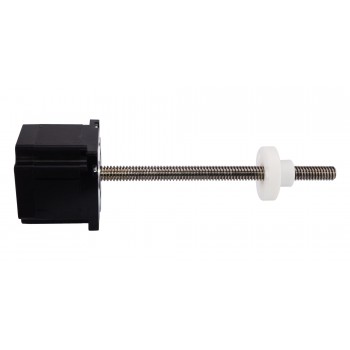

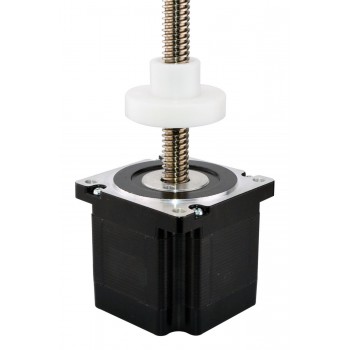

This model is almost exactly same as Haydon Kerk 86000 series size 34 external stepper motor linear actuator. The motor part is 79mm body 1.8 degree 3.12A Nema 34 stepper motor, and it has integrated with a 15.88mm (0.625") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 2.54mm (0.1") per revolution.

Electrical Specification

  • Manufacturer Part Number: 34LS31-31243-250E
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 1000N (300pps)
  • Rated Current/phase: 3.12A
  • Phase Resistance: 1.6ohms
  • Voltage: 5V
  • Inductance: 8.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 86x 86mm
  • Body Length: 79mm
  • Lead Screw Length: 250mm(9.8425")

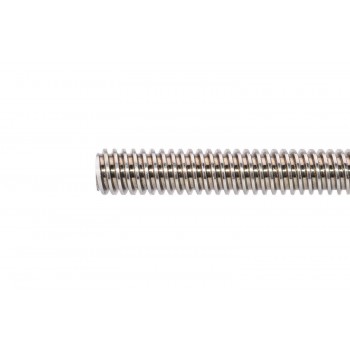

  • Lead Screw Diameter: Φ15.88mm(0.625")
  • Lead/Step: 0.0127mm(0.0005" )
  • Lead Travel/Revolution: 2.54mm(0.1")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 2300g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 34 Stepper Motor External 79mm Stack 3.12A Lead 6.35mm/0.25" Length 150mm
Next: Nema 34 Stepper Motor External 79mm Stack 3.12A Lead 6.35mm/0.25" Length 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 8.8
Minimal Thrust(N) 1000
Motor Type External
Phase Resistance(ohm) 1.6
Rated Current (A) 3.12
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 78.56
Frame Size(mm) 86x86
Lead Screw Diameter(mm) 15.88
Lead Screw Length(mm) 250
Lead Revolution(mm) 2.54
Linear Travel / Step(mm) 0.0127
No. of Lead 4
Lead Length(mm) 300
