Nema 17 External Linear Actuator Bipolar 12V 0.4A 26Ncm(36.8oz.in) 1.8 Deg Lead Screw 150mm

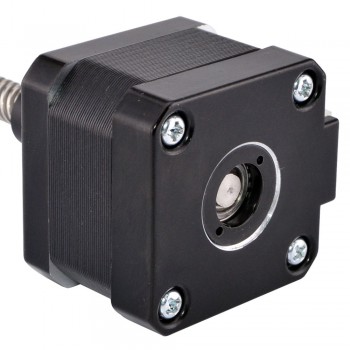

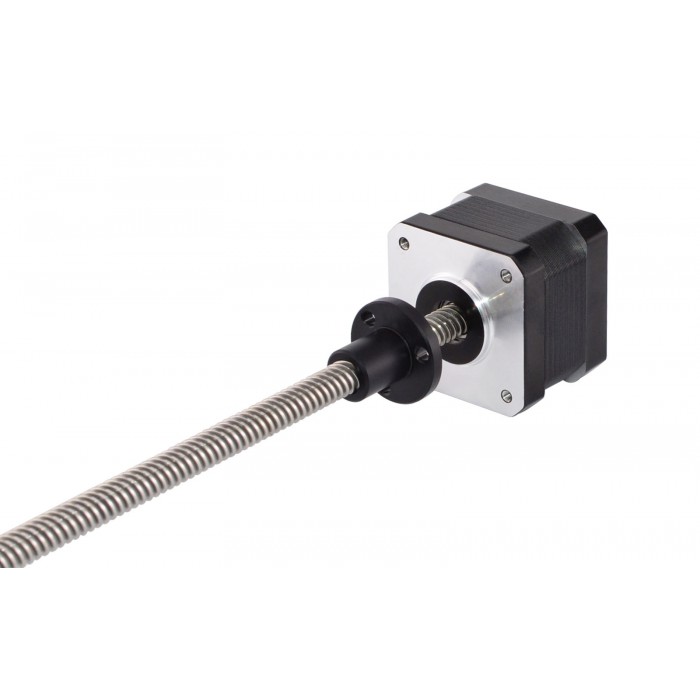

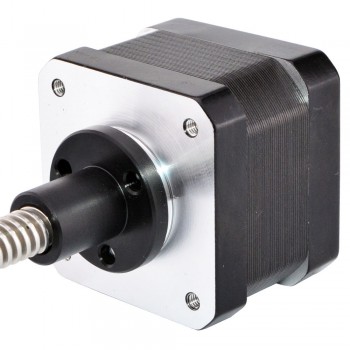

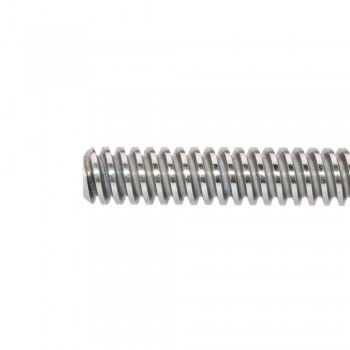

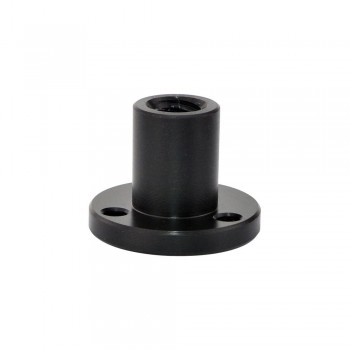

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 34mm 1.8 degree 0.4A Nema 17 stepper motor. It was integrated with 150mm Tr8x8 threaded rod and a POM screw nut move along the threaded rod.
Electrical Specification
Manufacturer Part Number: 17LS13-0404E-150G
Motor Type: External Linear Stepper
Step Angle: 1.8 deg
Holding Torque: 26Ncm(36.8oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Voltage: 12V
Inductance: 37mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm（5.9055"）
Lead Screw Diameter: Φ8mm（0.315"）
Lead /Step: 0.04mm(0.0015748" )
Lead/Revolution: 8mm（0.315"）
Number of Leads: 4
Lead Length: 400mm
Weight : 400g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Brown
|
Yellow
|
Green
|
Resources
Full Datasheet: 17LS13-0404E-150G.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 26 |
| Holding Torque (oz.in) | 36.8 |
| Inductance(mH) | 37 |
| Motor Type | External |
| Phase Resistance(ohm) | 30 |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Lead Screw Diameter(mm) | 8 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 8 |
| Linear Travel / Step(mm) | 0.04 |
| No. of Lead | 4 |
| Lead Length(mm) | 400 |
| Frame Size(mm) | Nema 17 (42 x 42) |
