Nema 8 Stepper Motor Bipolar L=38mm 4Ncm 0.38 deg 0.6A 6.0V with 5:1 Planetary Gearbox

Nema 8 Stepper Motor Bipolar L=38mm 4Ncm 0.38 deg 0.6A 6.0V with 5:1 Planetary Gearbox
NO.:8HS15-0604S-PG5
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$57.56
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $54.68 5%
10 $53.53 7%
50 $51.80 10%
100 $50.08 13%
Add To Cart

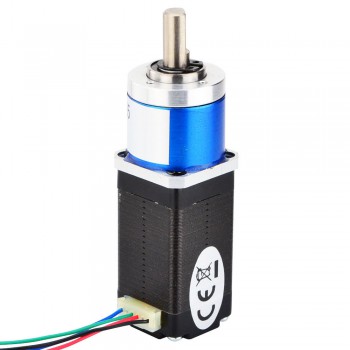

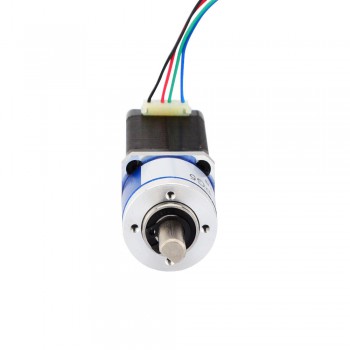

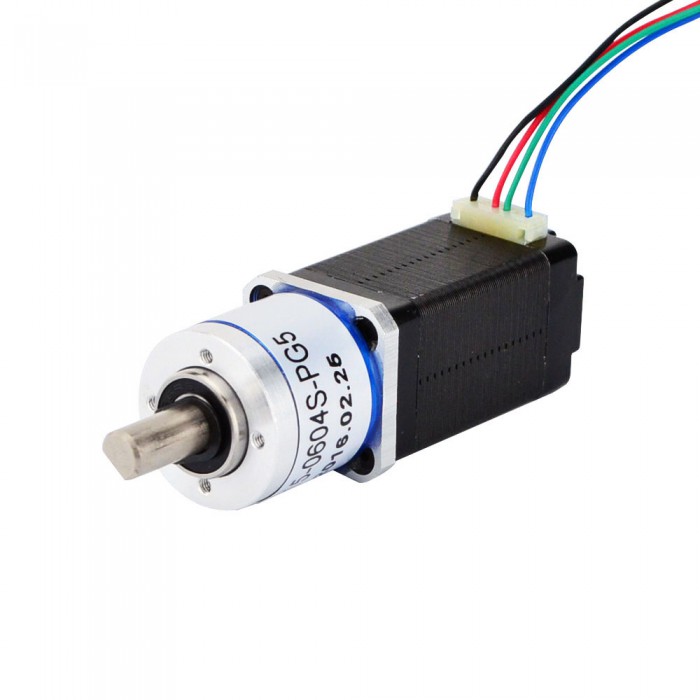

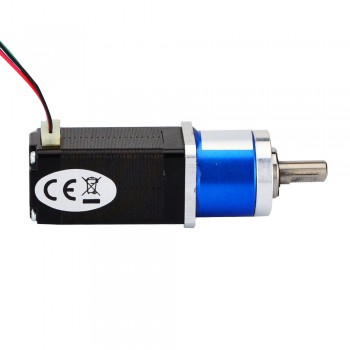

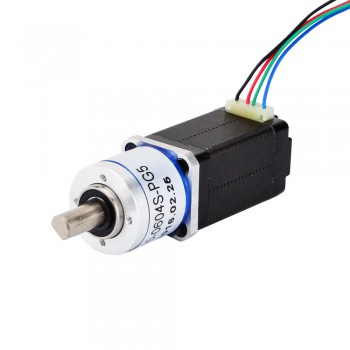

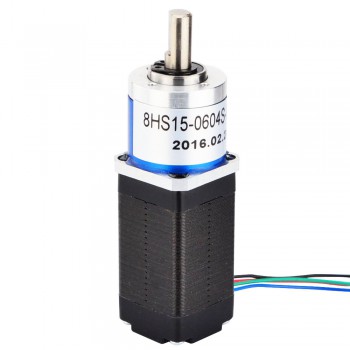

This Nema 8 stepper motor with 38mm body and 0.6A rated current, integrated a planetary gearbox of 4.75:1 gear ratio.



Electrical Specification

  • Manufacturer Part Number: 8HS15-0604S-PG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.38 deg
  • Holding Torque without Gearbox: 4Ncm(5.66oz.in)
  • Rated Current/phase: 0.6A
  • Phase Resistance: 10ohms
  • Voltage: 6.0V
  • Inductance: 5.5mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 4.75: 1
  • Efficiency: 90%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 0.5Nm(70.8oz.in)
  • Moment Permissible Torque: 1Nm(141.6oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Physical Specifications

  • Frame Size: 22 x 22mm
  • Motor Length: 38mm
  • Gearbox Length: 20.5mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 15mm
  • D-cut Length: 9mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 120g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 8 Stepper Motor Unipolar L=30mm 2Ncm 0.02 deg 0.5A 5.75V with 90:1 Planetary Gearbox
Next: Nema 8 Stepper Motor Bipolar L=38mm 4Ncm 0.095 deg 0.6A 6.0V with 19:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 90%
Gear Ratio 4.75:1
Gearbox Length(mm) 20.5
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 50
Max. Permissible Torque(oz.in) 70.8
Moment Permissible Torque(Ncm) 141.6
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Inductance(mH) 5.5
Lead Length(mm) 300
Motor Nema Size Nema 8
No. of Lead 4
Phase Resistance(ohm) 10
Rated Current (A) 0.6
Shaft Diameter(mm) 6
Shaft Length(mm) 15
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 4
Holding Torque w/o Gearbox(oz.in) 5.7
Motor Length(mm) 38
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 120
