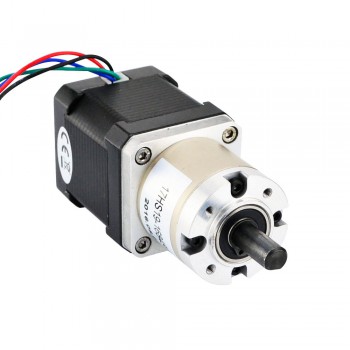

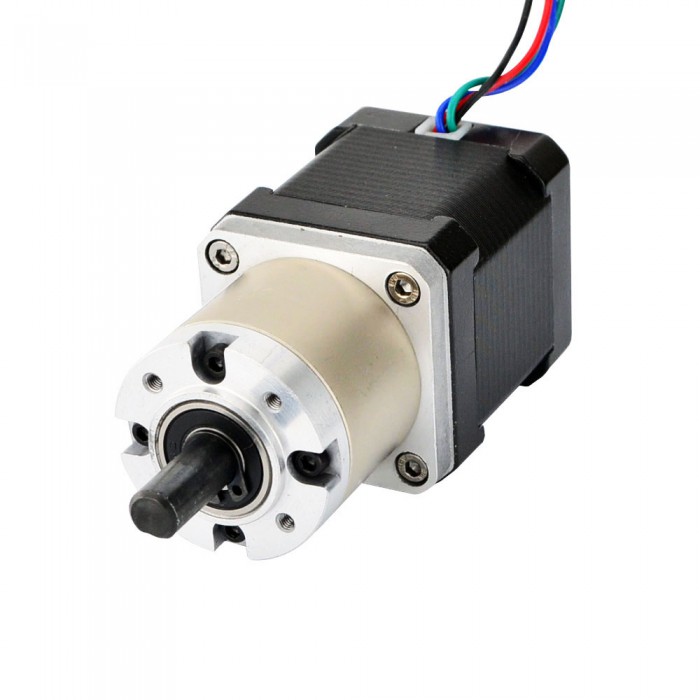

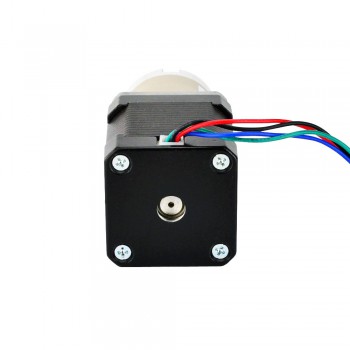

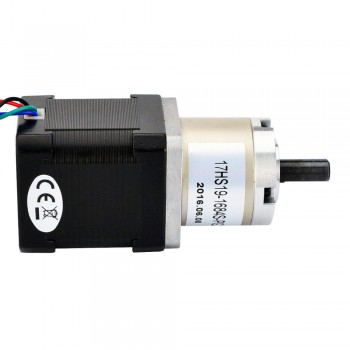

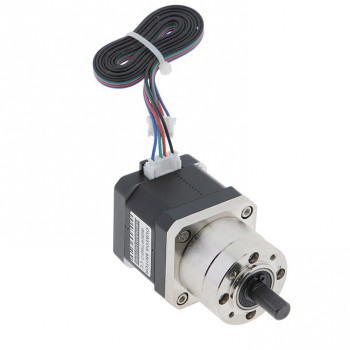

Nema 17 Stepper Motor Bipolar 44Ncm L=48mm 0.067 deg 1.68A 2.8V with 27:1 Planetary Gearbox

Nema 17 Stepper Motor Bipolar 44Ncm L=48mm 0.067 deg 1.68A 2.8V with 27:1 Planetary Gearbox
NO.:17HS19-1684S-PG27
Review: Post a review
Our Price:$33.72
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $32.03 5%
10 $31.36 7%
50 $30.35 10%
100 $29.34 13%
Add To Cart

This Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated a planetary gearbox of 26.85:1 gear ratio. It's suitable for  applications that with limited space but need low speed and high torque.



Electrical Specification

Manufacturer Part Number: 17HS19-1684S-PG27

Motor Type: Bipolar Stepper

Step Angle: 0.067 deg

Holding Torque without Gearbox: 44Ncm(62.31oz.in)

Rated Current/phase: 1.68A

Phase Resistance: 1.65ohms

Voltage: 2.8V

Inductance: 2.8mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 26.85: 1

Efficiency: 81%

Backlash at No-load: <=1 deg

Max.Permissible Torque: 3Nm(425oz.in)

Moment Permissible Torque: 5Nm(708oz.in)

Shaft Maximum Axial Load: 50N

Shaft Maximum Radial Load: 100N



Physical Specifications

Frame Size: 42 x 42mm

Motor Length: 48mm

Gearbox Length: 35mm

Shaft Diameter: Φ8mm

Shaft Length: 20mm

D-cut Length: 15mm

Number of Leads: 4

Lead Length: 500mm

Weight: 570g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 17HS19-1684S-PG27.pdf

Torque Curve: 17HS19-1684S-PG27_Torque_Curve.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.094 deg 1.68A 2.8V with 19:1 Planetary Gearbox
Next: Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.035 deg 1.68A 2.8V with 51:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 26.85:1
Gearbox Length(mm) 35
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 500 / 708.1
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 3.2
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.8
Rated Current (A) 1.68
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 52
Holding Torque w/o Gearbox(oz.in) 73.6
Motor Length(mm) 48
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 600

creadent3 – 21 Sep 2018

Great reliable serious reliable seller !!!

chris bordeleau – 27 Jul 2016

this motor worked great... plenty of torque and average noise for these motors... I'd buy another if I needed one

Alex – 05 Dec 2015

Seems solid, disassembled to inspect, planet gears are nylon, I hope it lasts long.
As expected, stepper is gear drive.
Includes data sheet, VERY useful.
Works great though, real ratio is 26 103/121 : 1
