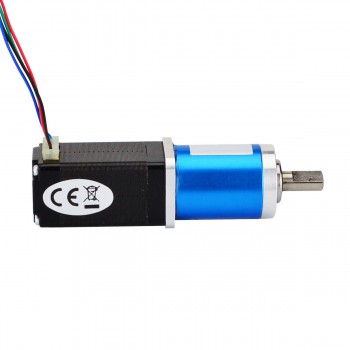

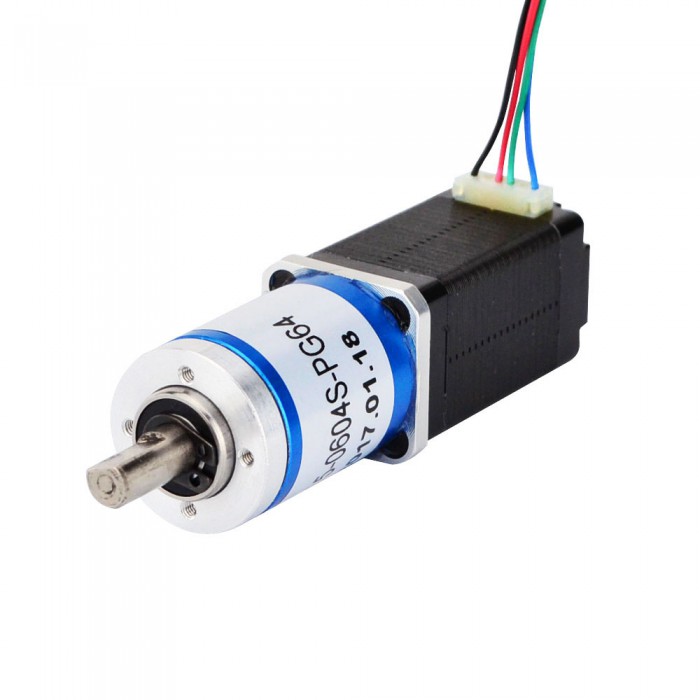

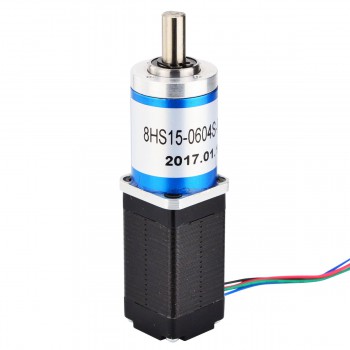

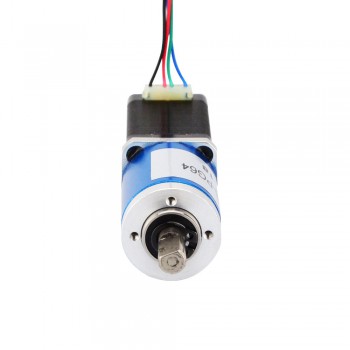

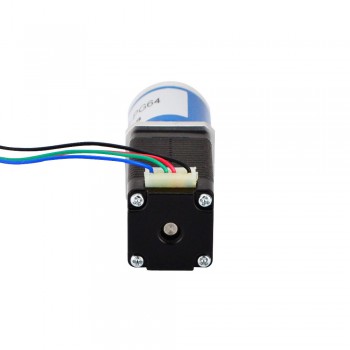

Nema 8 Stepper Motor Bipolar L=38mm w/ Gear Ratio 64:1 Planetary Gearbox

NO.:SKU:8HS15-0604S-PG64
Review: Post a review
Latest price:$56.12
Buy It Now:$43.17
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$41.37 $39.57 $37.77 $37.07
Add To Cart

This Nema 8 stepper motor with 38mm body and 0.6A rated current, integrated a planetary gearbox of 64:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

  • Manufacturer Part Number: 8HS15-0604S-PG64
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.028 deg
  • Holding Torque without Gearbox: 4Ncm(5.66oz.in)
  • Rated Current/phase: 0.6A
  • Phase Resistance: 10ohms
  • Voltage: 6V
  • Inductance: 5.5mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 64: 1
  • Efficiency: 73%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 0.9Nm(127.5oz.in)
  • Moment Permissible Torque: 2Nm(283oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Physical Specifications

  • Frame Size: 22 x 22mm
  • Motor Length: 38mm
  • Gearbox Length: 30.95mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 15mm
  • D-cut Length: 9mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 130g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 8 Stepper Motor Bipolar L=38mm w/ Gear Ratio 19:1 Planetary Gearbox
Next: Nema 8 Stepper Motor Bipolar L=38mm w/ Gear Ratio 90:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 73%
Gear Ratio 64:1
Gearbox Length(mm) 30.95
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 90
Max. Permissible Torque(oz.in) 127.5
Moment Permissible Torque(Ncm) 283.2
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Inductance(mH) 5.5
Lead Length(mm) 300
Motor Nema Size Nema 8
No. of Lead 4
Phase Resistance(ohm) 10
Rated Current (A) 0.6
Shaft Diameter(mm) 6
Shaft Length(mm) 15
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 4
Holding Torque w/o Gearbox(oz.in) 5.7
Motor Length(mm) 38
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 400
