Nema 11 Gearbox Stepper Motor Bipolar L=51mm 12Ncm 0.35 Deg 0.67A 6.2V with 5:1 Planetary Gearbox

Nema 11 Gearbox Stepper Motor Bipolar L=51mm 12Ncm 0.35 Deg 0.67A 6.2V with 5:1 Planetary Gearbox
NO.:11HS20-0674S-PG5
Review: Post a review
Our Price:$39.44
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $37.47 5%
10 $36.68 7%
50 $35.50 10%
100 $34.31 13%
Add To Cart

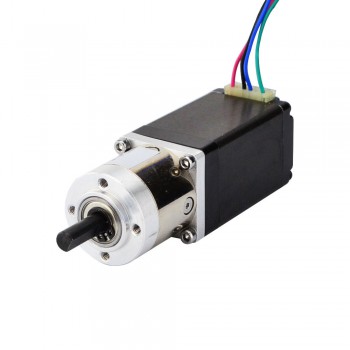

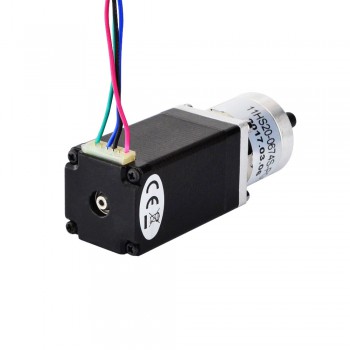

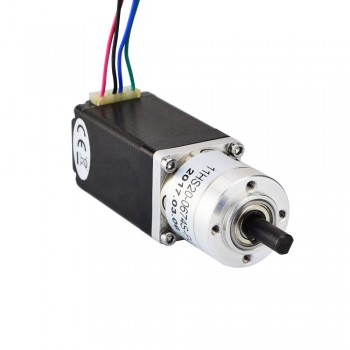

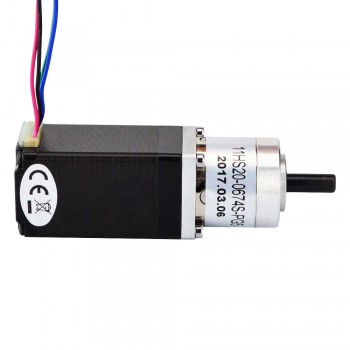

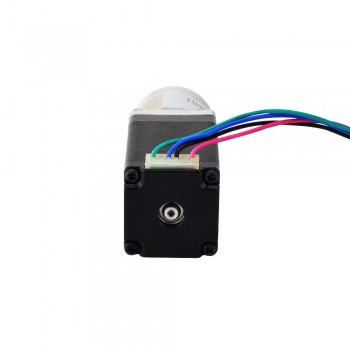

This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 5.18:1 gear ratio.



Electrical Specification

  • Manufacturer Part Number: 11HS20-0674S-PG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.35 deg
  • Holding Torque without Gearbox: 12Ncm(16.99oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 9.2ohms
  • Voltage: 6.2V
  • Inductance: 5.7mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 5.18: 1
  • Efficiency: 90%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 2Nm(283oz.in)
  • Moment Permissible Torque: 4Nm(566oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Physical Specifications

  • Frame Size: 30 x 30mm
  • Motor Length: 50.5mm
  • Gearbox Length: 27.2mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 290g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Gearbox Stepper Motor Bipolar L=51mm 12Ncm 0.131 Deg 0.67A 6.2V with 14:1 Planetary Gearbox
Next: Nema 11 Gearbox Stepper Motor Bipolar L=51mm 12Ncm 0.067 Deg 0.67A 6.2V with 27:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 90%
Gear Ratio 5.18:1
Gearbox Length(mm) 27.2
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 200
Max. Permissible Torque(oz.in) 283.2
Moment Permissible Torque(Ncm) 566.4
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Inductance(mH) 6.5
Lead Length(mm) 500
Motor Nema Size Nema 11
No. of Lead 4
Phase Resistance(ohm) 12
Rated Current (A) 0.67
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 14
Holding Torque w/o Gearbox(oz.in) 19.8
Motor Length(mm) 51
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 400
