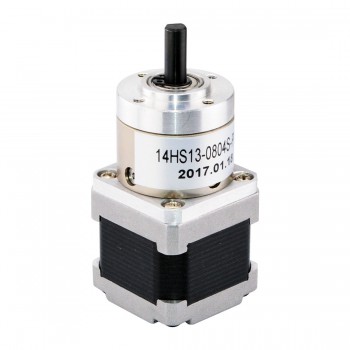

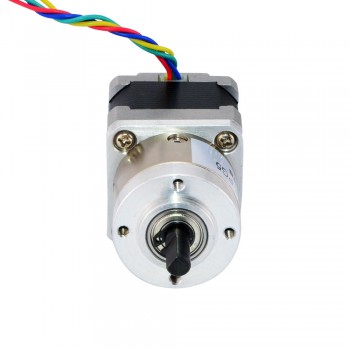

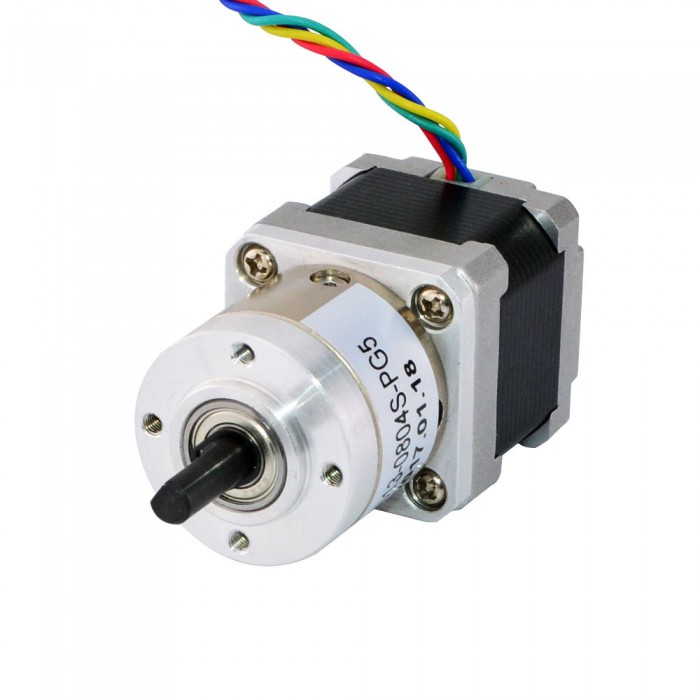

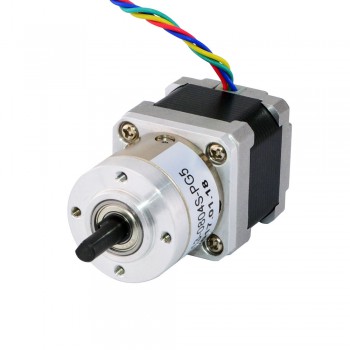

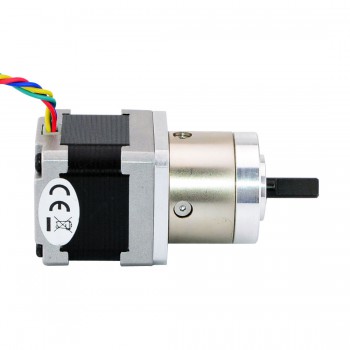

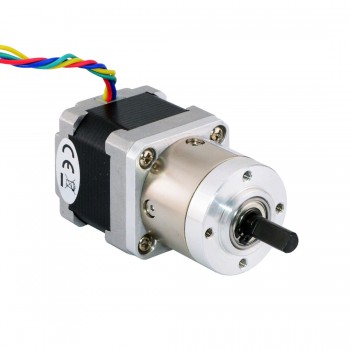

Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.35 Deg 0.8A 5.4V with 5:1 Planetary Gearbox

Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.35 Deg 0.8A 5.4V with 5:1 Planetary Gearbox
NO.:14HS13-0804S-PG5
Post a review
China National Day Special Offer:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till October 7th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$36.77
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $34.93 5%
10 $34.20 7%
50 $33.09 10%
100 $31.99 13%
Add To Cart

This Nema 14 stepper motor with 33mm body and 0.8A rated current, integrated a planetary gearbox of 5.18:1 gear ratio.



Electrical Specification

Manufacturer Part Number: 14HS13-0804S-PG5

Motor Type: Bipolar Stepper

Step Angle: 0.35 deg

Holding Torque without Gearbox: 18Ncm(25.49oz.in)

Rated Current/phase: 0.8A

Phase Resistance: 6.8ohms

Voltage: 5.4V

Inductance: 10mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 5.18: 1

Efficiency: 90%

Backlash at No-load: <=1 deg

Max.Permissible Torque: 2Nm(283oz.in)

Moment Permissible Torque: 4Nm(566oz.in)

Shaft Maximum Axial Load: 50N

Shaft Maximum Radial Load: 100N



Physical Specifications

Frame Size: 35 x 35mm

Motor Length: 34mm

Gearbox Length: 28.2mm

Shaft Diameter: Φ6mm

Shaft Length: 18mm

D-cut Length: 12mm

Number of Leads: 4

Lead Length: 300mm

Weight: 290g



Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue



Resources

Full Datasheet: 14HS13-0804S-PG5.pdf

Torque Curve: 14HS13-0804S-PG5_Torque_Curve.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Geared Stepper Motor Bipolar L=51mm 12Ncm 0.018 Deg 0.67A 6.2V with 100:1 Planetary Gearbox
Next: Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.094 Deg 0.8A 5.4V with 19:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 90%
Gear Ratio 5.18:1
Gearbox Length(mm) 28.2
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 200
Max. Permissible Torque(oz.in) 283.2
Moment Permissible Torque(Ncm) 566.4
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 4.5
Lead Length(mm) 500
Motor Nema Size Nema 14
No. of Lead 4
Phase Resistance(ohm) 3.2
Rated Current (A) 1
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 18
Holding Torque w/o Gearbox(oz.in) 19.8
Motor Length(mm) 34
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 400
