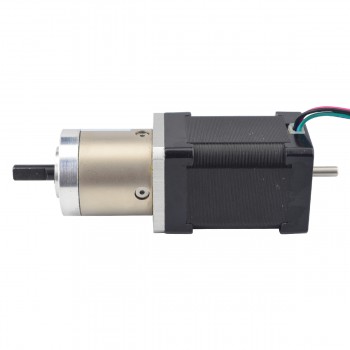

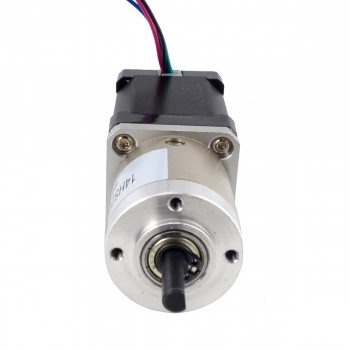

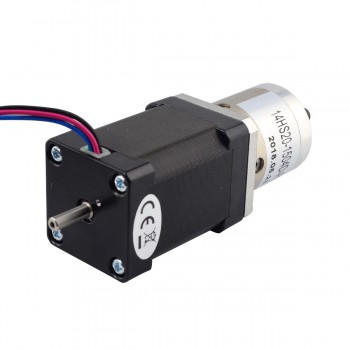

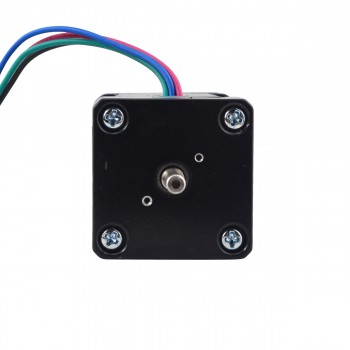

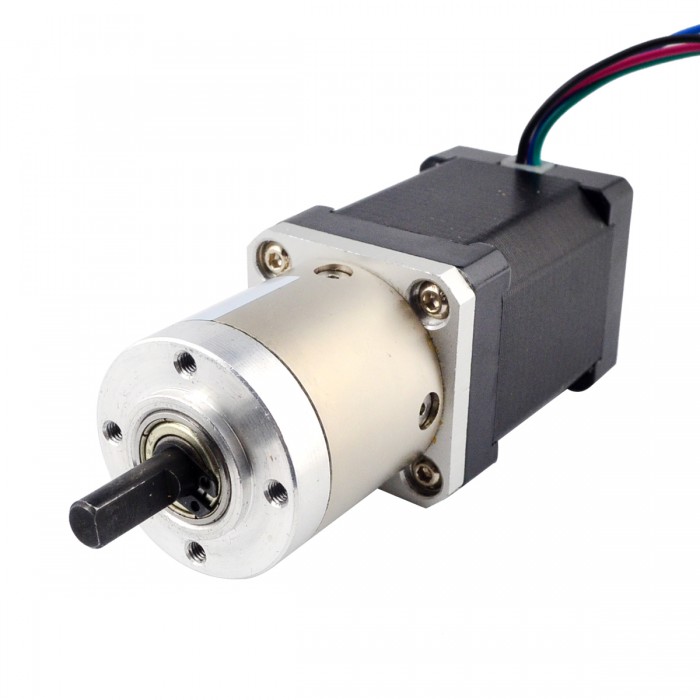

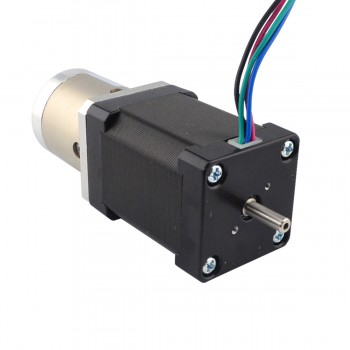

Nema 14 Geared Stepper Motor L=52mm w/ Rear Shaft & Screw Hole & Gear Ratio 14:1 Gearbox

NO.:14HS20-1504D-PG14
Review: Post a review
Latest price:$55.93
Buy It Now:$43.02
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$41.99 $40.97 $39.95 $38.92
Add To Cart

This Nema 14 stepper motor with 52mm body and 1.50A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

  • Manufacturer Part Number: 14HS20-1504D-PG14
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 40Ncm(56.8oz.in)
  • Rated Current/phase: 1.50A
  • Voltage: 4.20V
  • Phase Resistance: 2.8ohms
  • Inductance: 3.8mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type:Planetary
  • Gear Ratio:13.73:1
  • Efficiency:80%
  • Backlash at No-load:<=1deg
  • Max.Permissible Torque:4N.m(566oz.in)
  • Moment Permissible Torque:8N.m(1133oz.in)
  • Shaft Maximum Axial Load:50N
  • Shaft Maximum Radial Load:100N

Physical Specification

  • Frame Size:35x35mm
  • Motor Length:52mm
  • Gearbox Length:36.8mm
  • Front Shaft Diameter: Φ6mm
  • Front Shaft Length: 18mm
  • Front D-cut Length: 12mm
  • Rear Shaft Diameter: Φ4mm
  • Rear Shaft Length:12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 450g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Geared Stepper Motor L=34mm w/ Rear Shaft & Screw Hole & Gear Ratio 5:1 Gearbox
Next: Nema 17 Geared Stepper Motor Bipolar L=39mm w/ Gear Ratio 19:1 Planetary Gearbox
Gearbox Specification
Efficiency 80%
Gear Ratio 13.73:1
Gearbox Length(mm) 36.8
Gearbox Type Planetary
Backlash at No-load(Max.°) 1
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566.56
Moment Permissible Torque(Ncm) 800
Moment Permissible Torque(oz.in) 1133.12
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 40
Holding Torque w/o Gearbox(oz.in) 56.66
Inductance(mH) 3.8
Lead Length(mm) 500
Motor Nema Size Nema 14
No. of Lead 4
Phase Resistance(ohm) 2.8
Rated Current (A) 1.5
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Shaft Type D-Cut
Single Shaft/Dual Shaft Dual Shaft
Physical Specification
Weight(g) 450
