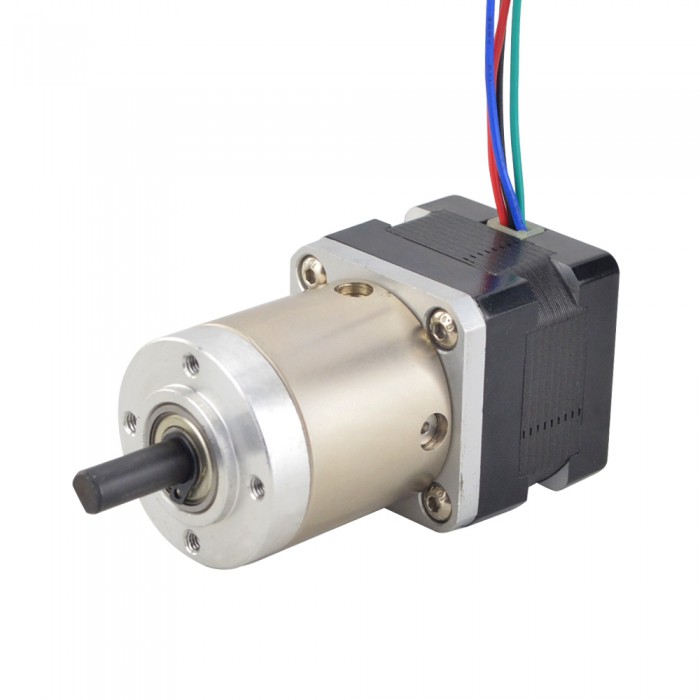

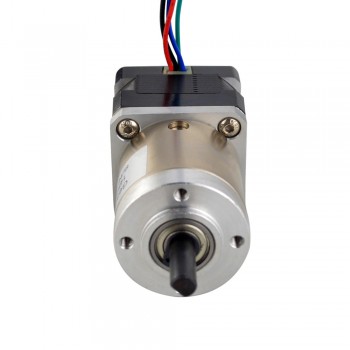

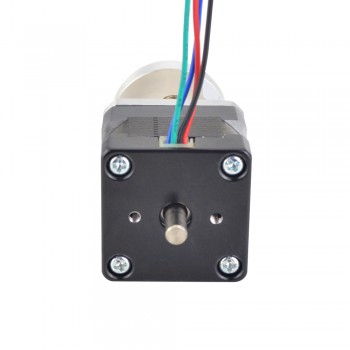

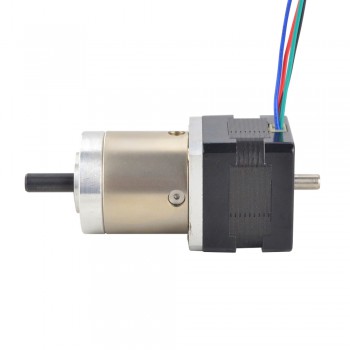

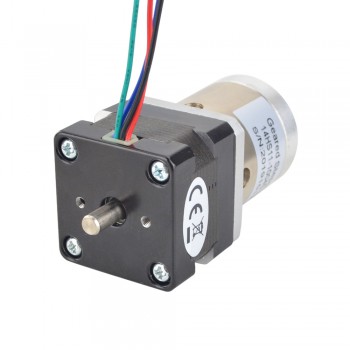

Dual Shaft Nema 14 Gear Stepper Motor Bipolar L=28mm with Gear Ratio 19:1 Planetary Gearbox 9.5mm Rear Shaft Length

NO.:14HS11-1004D-PG19-AR3
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$38.61

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$36.68	5%
10	$35.91	7%
50	$34.75	10%
100	$33.59	13%

Affiliate Link

Description Specification Custom Options Review

Electrical Specification

Manufacturer Part Number: 14HS11-1004D-PG19-AR3
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque without Gearbox: 0.125 Ncm(17.7 oz.in)
Rated Current/phase: 1.0 A
Phase Resistance: 3.5 ohms
Inductance: 3.5 mH ± 20%(1KHz)

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 19: 1
Efficiency: 81%
Backlash at No-load: <=1 deg
Max.Permissible Torque: 3 Nm(424.92 oz.in)
Moment Permissible Torque: 5 Nm(708.2 oz.in)
Shaft Maximum Axial Load: 50 N
Shaft Maximum Radial Load: 100 N

Physical Specifications

Gearbox Type: Planetary
Frame Size: 35 x 35 mm
Motor Length: 28 mm
Gearbox Length: 35.8 mm
Front Shaft Diameter: Φ5 mm
Front Shaft Length: 18 mm
D-cut Length: 12 mm
Rear Shaft Length: 9.5 mm
Rear Shaft Diameter: Φ5 mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 0.28kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Resources

Motor Datasheet: 14HS11-1004D-PG19-AR3.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Step Motor Bipolar L=34mm 1.8 Deg 1A 3.20V with Rear Shaft & 19:1 Gearbox Dual Shaft
Next: Nema 14 Geared Stepper Motor Bipolar L=34mm 1.8 Deg 14Ncm 3.20V 1A with 51:1 Gearbox D-Cut Dual Shaft

Electrical Specification
Bipolar/Unipolar	Bipolar
Inductance(mH)	3.5
Phase Resistance(ohm)	3.5
Rated Current (A)	1.0
Gearbox Specification
Efficiency	81%
Gear Ratio	19: 1
Gearbox Length(mm)	35.8
Gearbox Type	Planetary
Backlash at No-load(Max.°)	<=1
Max. Permissible Torque(Ncm)	300
Max. Permissible Torque(oz.in)	424.92
Moment Permissible Torque(Ncm)	500
Moment Permissible Torque(oz.in)	708.2
Shaft Maximum Axial Load(N)	50
Shaft Maximum Radial Load(N)	100
Motor Specification
Holding Torque w/o Gearbox(Ncm)	0.125
Holding Torque w/o Gearbox(oz.in)	17.7
Motor Length(mm)	28
Motor Nema Size	nema 14
Physical Specification
Lead Length(mm)	500
No. of Lead	4
Shaft Diameter(mm)	5
Shaft Type	D-Cut
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	280
