Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.018 Deg 0.8A 5.4V with 100:1 Planetary Gearbox

Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.018 Deg 0.8A 5.4V with 100:1 Planetary Gearbox
NO.:14HS13-0804S-PG100
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$37.93
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $36.03 5%
10 $35.27 7%
50 $34.14 10%
100 $33.00 13%
Add To Cart

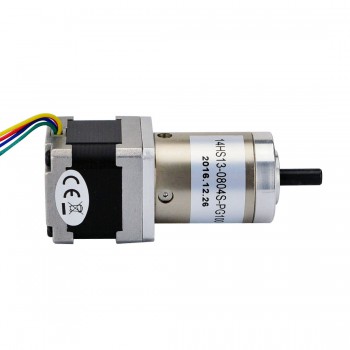

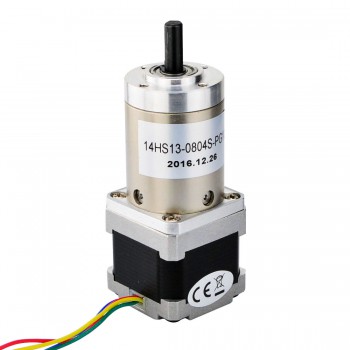

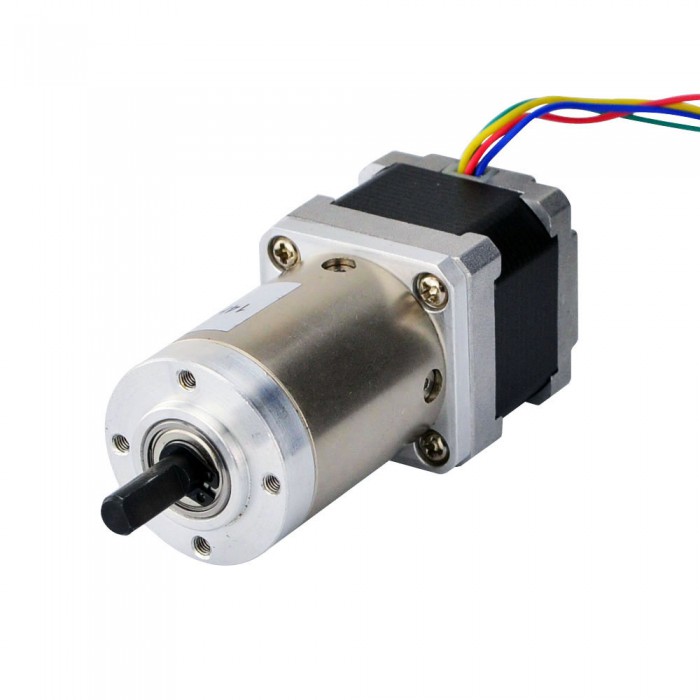

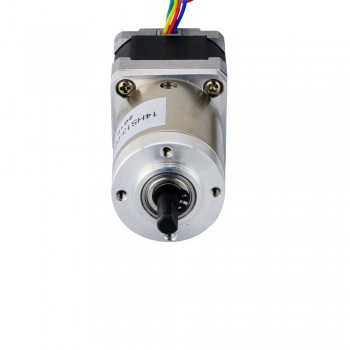

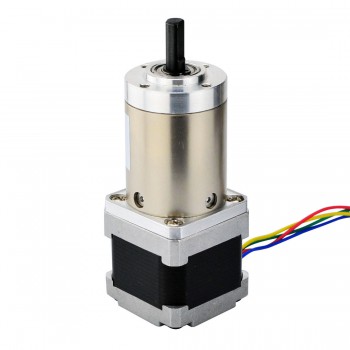

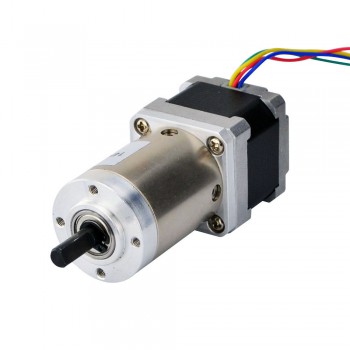

This Nema 14 stepper motor with 33mm body and 0.8A rated current, integrated a planetary gearbox of 99.05:1 gear ratio.



Electrical Specification

  • Manufacturer Part Number: 14HS13-0804S-PG100
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.018 deg
  • Holding Torque without Gearbox: 18Ncm(25.49oz.in)
  • Rated Current/phase: 0.8A
  • Phase Resistance: 6.8ohms
  • Voltage: 5.4V
  • Inductance: 10mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 99.05: 1
  • Gear Efficiency: 73%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 4Nm(566oz.in)
  • Moment Permissible Torque: 6Nm(850oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 35 x 35mm
  • Motor Length: 34mm
  • Gearbox Length: 43.6mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 360g

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.067 Deg 0.8A 5.4V with 27:1 Planetary Gearbox
Next: Nema 14 Stepper Motor Bipolar L=51mm 40Ncm 0.35 Deg 1.5A 4.2V with 5:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 73%
Gear Ratio 99.05:1
Gearbox Length(mm) 43.6
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566.4
Moment Permissible Torque(Ncm) 849.7
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 4.5
Lead Length(mm) 500
Motor Nema Size Nema 14
No. of Lead 4
Phase Resistance(ohm) 3.2
Rated Current (A) 1
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 18
Holding Torque w/o Gearbox(oz.in) 19.8
Motor Length(mm) 34
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 400
