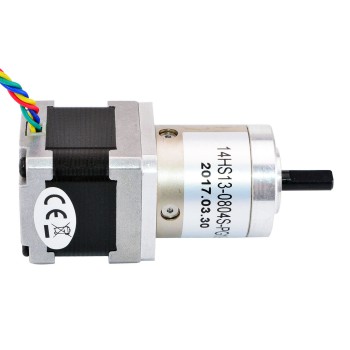

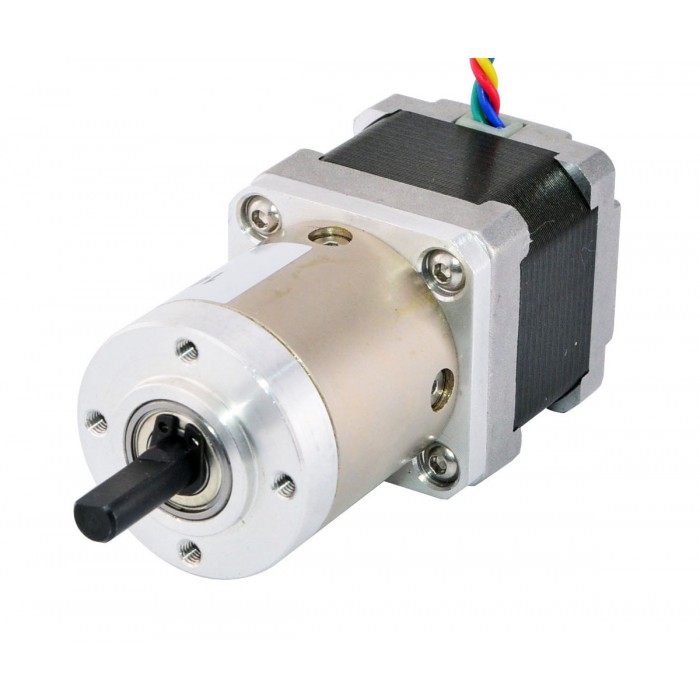

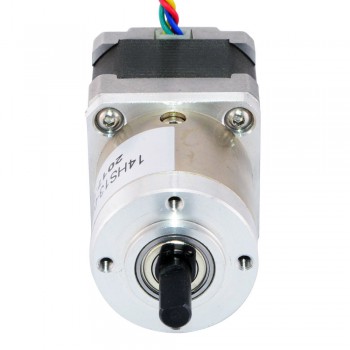

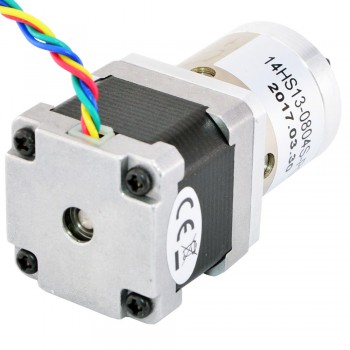

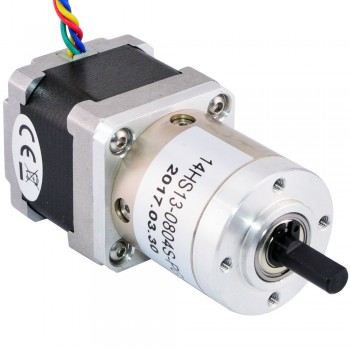

Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.094 Deg 0.8A 5.4V with 19:1 Planetary Gearbox

NO.:14HS13-0804S-PG19
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$36.77

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$34.93	5%
10	$34.20	7%
50	$33.09	10%
100	$31.99	13%

Affiliate Link

Description Specification Custom Options Review

This Nema 14 stepper motor with 33mm body and 0.8A rated current, integrated a planetary gearbox of 19.19:1 gear ratio.

Electrical Specification

Manufacturer Part Number: 14HS13-0804S-PG19
Motor Type: Bipolar Stepper
Step Angle: 0.094 deg
Holding Torque without Gearbox: 18Ncm(25.49oz.in)
Rated Current/phase: 0.8A
Phase Resistance: 6.8ohms
Voltage: 5.4V
Inductance: 10mH ± 20%(1KHz)

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 19.19: 1
Gear Efficiency: 81%
Backlash at No-load: <=1 deg
Max.Permissible Torque: 3Nm(425oz.in)
Moment Permissible Torque: 5Nm(708oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Physical Specifications

Frame Size: 35 x 35mm
Motor Length: 34mm
Gearbox Length: 35.8mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 320g

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Resources

Full Datasheet: 14HS13-0804S-PG19.pdf
Torque Curve: 14HS13-0804S-PG19_Torque_Curve.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.35 Deg 0.8A 5.4V with 5:1 Planetary Gearbox
Next: Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.094 Deg 0.8A 5.4V with 51:1 Planetary Gearbox

Gearbox Specification
Backlash at No-load(Max.°)	1
Efficiency	81%
Gear Ratio	19.2:1
Gearbox Length(mm)	35.8
Gearbox Type	Planetary
Max. Permissible Torque(Ncm)	300
Max. Permissible Torque(oz.in)	424.8
Moment Permissible Torque(Ncm)	708.1
Shaft Maximum Axial Load(N)	50
Shaft Maximum Radial Load(N)	100
Motor Specification
Inductance(mH)	4.5
Lead Length(mm)	500
Motor Nema Size	Nema 14
No. of Lead	4
Phase Resistance(ohm)	3.2
Rated Current (A)	1
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Bipolar/Unipolar	Bipolar
Holding Torque w/o Gearbox(Ncm)	18
Holding Torque w/o Gearbox(oz.in)	19.8
Motor Length(mm)	34
Single Shaft/Dual Shaft	Single Shaft
Shaft Type	D-Cut
Physical Specification
Weight(g)	400
