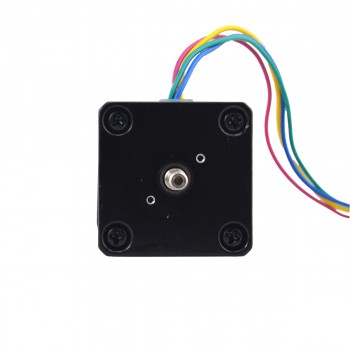

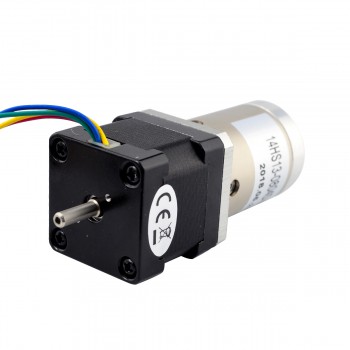

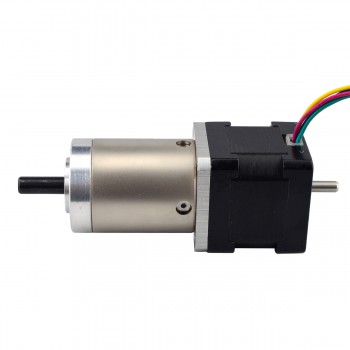

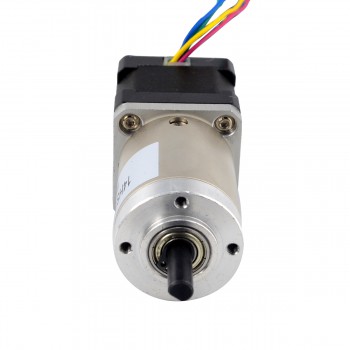

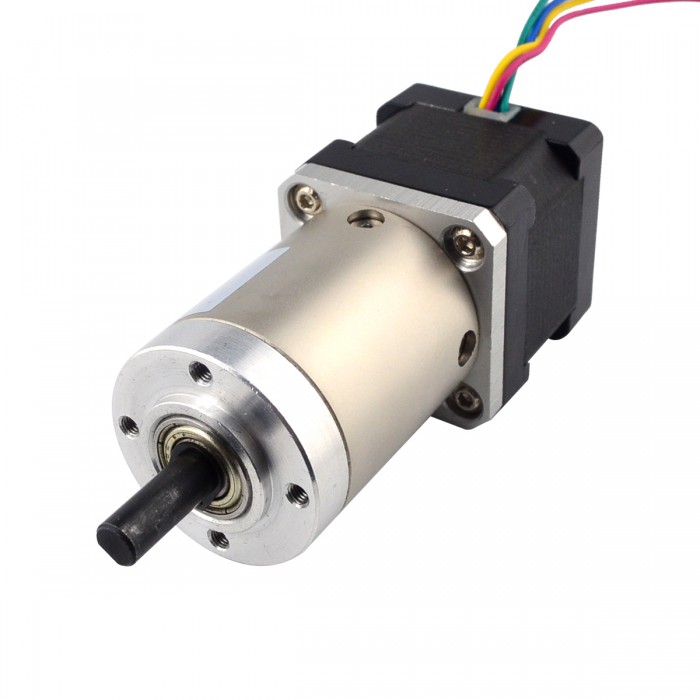

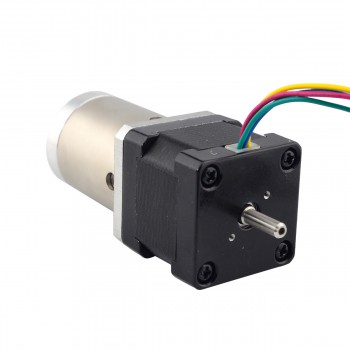

Nema 14 Geared Stepper Motor L=34mm w/ Rear Shaft & Screw Hole & Gear Ratio 51:1 Gearbox

NO.:14HS13-0804D-PG51
Review: Post a review
Latest price:$41.96
Buy It Now:$32.28
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$31.51 $30.74 $29.97 $29.20
Add To Cart

This Nema 14 stepper motor with 34mm body and 1.00A rated current, integrated a planetary gearbox of 51.9:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

  • Manufacturer Part Number: 14HS13-0804D-PG51
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 14Ncm(19.88oz.in)
  • Rated Current/phase: 1.00A
  • Voltage: 3.20V
  • Phase Resistance: 3.2ohms
  • Inductance: 4.5mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type:Planetary
  • Gear Ratio:51.9:1
  • Efficiency:73%
  • Backlash at No-load:<=1deg
  • Max.Permissible Torque:2N.m(283oz.in)
  • Moment Permissible Torque:4N.m(566oz.in)
  • Shaft Maximum Axial Load:50N
  • Shaft Maximum Radial Load:100N

Physical Specification

  • Frame Size:35x35mm
  • Motor Length: 34mm
  • Gearbox Length:43.6mm
  • Front Shaft Diameter: Φ6mm
  • Front Shaft Length: 18mm
  • Front D-cut Length: 12mm
  • Rear Shaft Diameter: Φ4mm
  • Rear Shaft Length:12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 400g

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 14 Gear Stepper Motor Bipolar L=28mm w/ Gear Ratio 19:1 Planetary Gearbox 9.5mm Rear Shaft Length
Next: Nema 14 Geared Stepper Motor L=34mm w/ Rear Shaft & Screw Hole & Gear Ratio 5:1 Gearbox
Gearbox Specification
Efficiency 73%
Gear Ratio 50.9:1
Gearbox Length(mm) 43.6
Gearbox Type Planetary
Backlash at No-load(Max.°) 1
Max. Permissible Torque(Ncm) 200
Max. Permissible Torque(oz.in) 283.28
Moment Permissible Torque(Ncm) 400
Moment Permissible Torque(oz.in) 566.56
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 14
Holding Torque w/o Gearbox(oz.in) 19.83
Inductance(mH) 4.5
Lead Length(mm) 500mm
Motor Nema Size Nema 14
No. of Lead 4
Phase Resistance(ohm) 3.2
Rated Current (A) 1.0
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Shaft Type D-Cut
Single Shaft/Dual Shaft Dual Shaft
Physical Specification
Weight(g) 400
