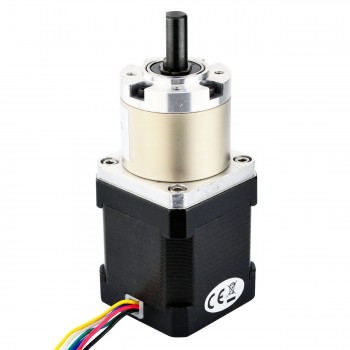

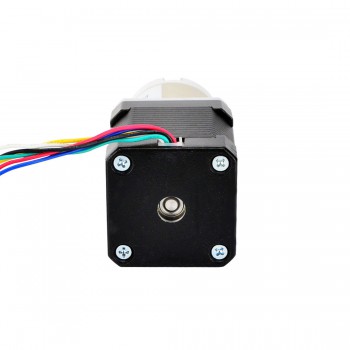

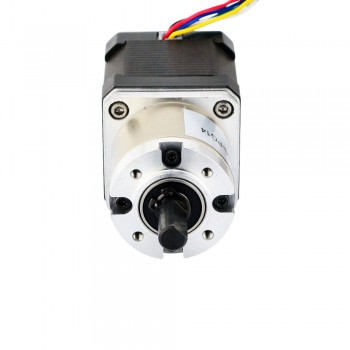

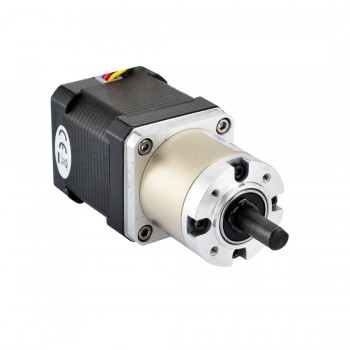

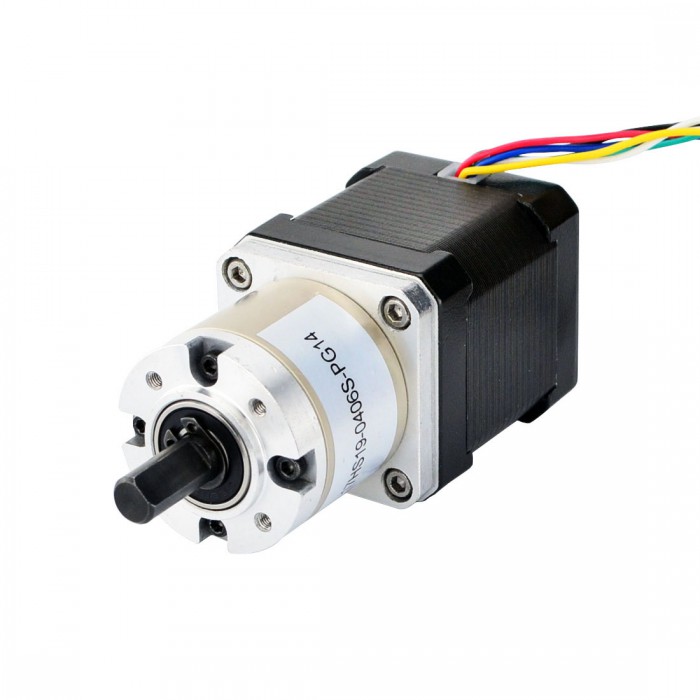

Nema 17 Stepper Motor Unipolar L=48mm 32Ncm 0.131 deg 0.4A 12V with 14:1 Planetary Gearbox

Nema 17 Stepper Motor Unipolar L=48mm 32Ncm 0.131 deg 0.4A 12V with 14:1 Planetary Gearbox
NO.:17HS19-0406S-PG14
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$33.72
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $32.03 5%
10 $31.36 7%
50 $30.35 10%
100 $29.34 13%
Add To Cart

This unipolar Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated a planetary gearbox of 13.73:1 gear ratio.  It's suitable for applications that with limited space but need low speed and high torque.



Electrical Specification

  • Manufacturer Part Number: 17HS19-0406S-PG14
  • Motor Type: Unipolar Stepper
  • Step Angle: 0.131 deg
  • Holding Torque without Gearbox: 32Ncm(45.32oz.in)
  • Rated Current/phase: 0.4A
  • Phase Resistance: 30 ohms
  • Voltage: 12V
  • Inductance: 25 mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 13.73: 1
  • Efficiency: 81%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 3Nm(425oz.in)
  • Moment Permissible Torque: 5Nm(708oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 48mm
  • Gearbox Length: 35mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 6
  • Lead Length: 500mm
  • Weight: 560g

Connection

A+
O+
A-
B+
O-
B-
BLK
YEL
GRN
RED
WHT
BLU



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar L=38mm 36Ncm 0.067 deg 1.68A 2.8V with 27:1 Planetary Gearbox
Next: Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.35 deg 1.68A 2.8V with 5:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 13.73:1
Gearbox Length(mm) 35
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 708.1
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 25
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 6
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Bipolar/Unipolar Unipolar
Holding Torque w/o Gearbox(Ncm) 32
Holding Torque w/o Gearbox(oz.in) 45.3
Motor Length(mm) 48
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 550
