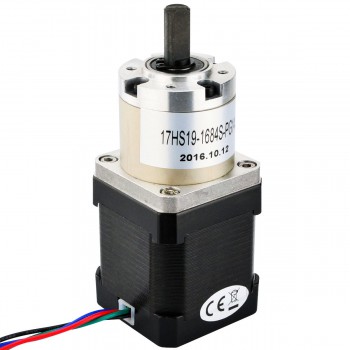

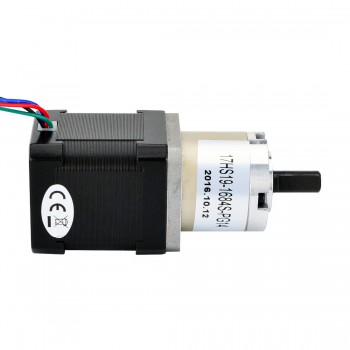

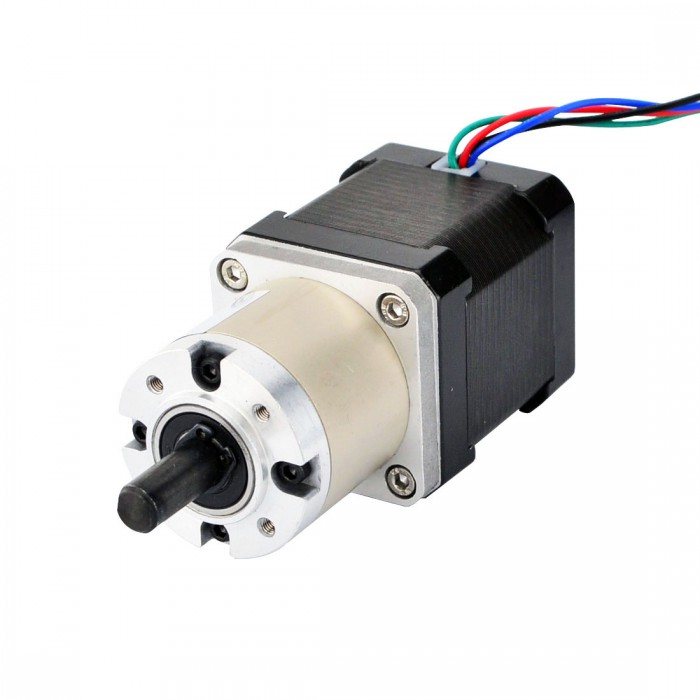

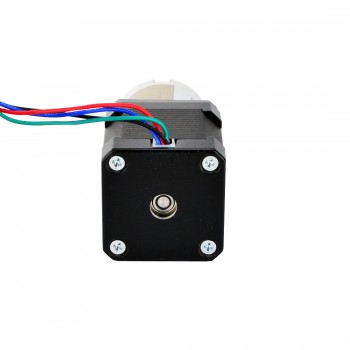

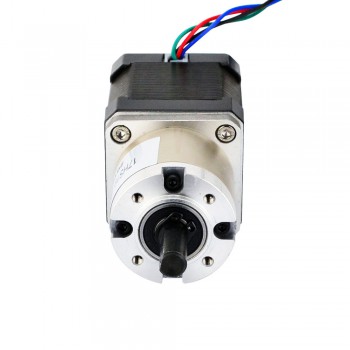

Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.131 deg 1.68A 2.8V with 14:1 Planetary Gearbox

Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.131 deg 1.68A 2.8V with 14:1 Planetary Gearbox
NO.:17HS19-1684S-PG14
Review: Post a review
Our Price:$33.72
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $32.03 5%
10 $31.36 7%
50 $30.35 10%
100 $29.34 13%
Add To Cart

This Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's suitable for applications that with limited space but need low speed and high torque.



Electrical Specification

Manufacturer Part Number: 17HS19-1684S-PG14

Motor Type: Bipolar Stepper

Step Angle: 0.131 deg

Holding Torque without Gearbox: 44Ncm(62.31oz.in)

Rated Current/phase: 1.68A

Phase Resistance: 1.65ohms

Voltage: 2.8V

Inductance: 2.8mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 13.73: 1

Efficiency: 81%

Backlash at No-load: <=1 deg

Max.Permissible Torque: 3Nm(425oz.in)

Moment Permissible Torque: 5Nm(708oz.in)

Shaft Maximum Axial Load: 50N

Shaft Maximum Radial Load: 100N



Physical Specifications

Frame Size: 42 x 42mm

Motor Length: 48mm

Gearbox Length: 35mm

Shaft Diameter: Φ8mm

Shaft Length: 20mm

D-cut Length: 15mm

Number of Leads: 4

Lead Length: 500mm

Weight: 560g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 17HS19-1684S-PG14.pdf

Torque Curve: 17HS19-1684S-PG14_Torque_Curve.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.35 deg 1.68A 2.8V with 5:1 Planetary Gearbox
Next: Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.094 deg 1.68A 2.8V with 19:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 13.73:1
Gearbox Length(mm) 35
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 500 / 708.1
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 3.2
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.8
Rated Current (A) 1.68
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 52
Holding Torque w/o Gearbox(oz.in) 73.6
Motor Length(mm) 48
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 600

Aogust – 29 Jun 2024

It makes little noise, runs fast and smoothly, which is just right for my project.

Rhoda – 06 Aug 2016

These motors are beasts! I was able to get a good driver and get this motor to work at step 1/128. even with such 1/128 step the accuracy is incredible and its quite powerful! been working for 9 months now without stopping!
