Nema 17 Stepper Motor Bipolar L=60mm 65Ncm 0.35 deg 2.1A 3.36V with 5:1 Planetary Gearbox

Nema 17 Stepper Motor Bipolar L=60mm 65Ncm 0.35 deg 2.1A 3.36V with 5:1 Planetary Gearbox
NO.:17HS24-2104S-PG5
Review: Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$36.77
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $34.93 5%
10 $34.20 7%
50 $33.09 10%
100 $31.99 13%
Add To Cart

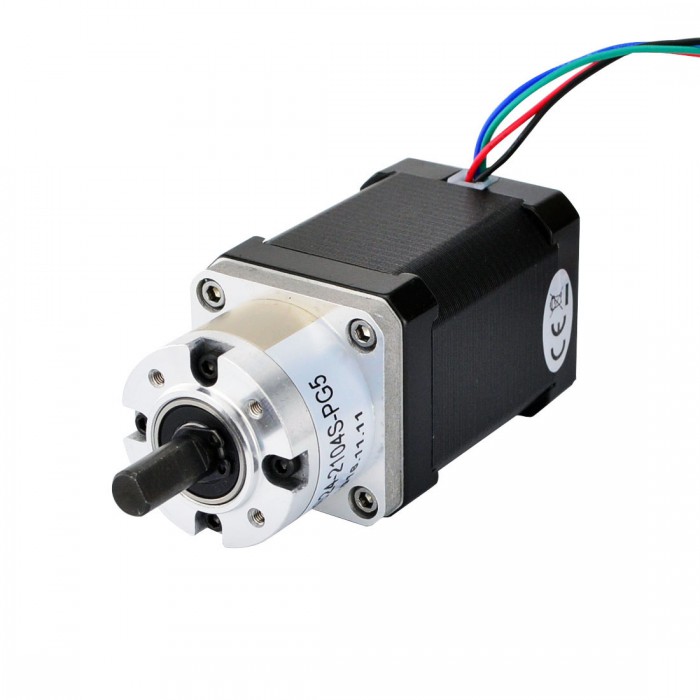

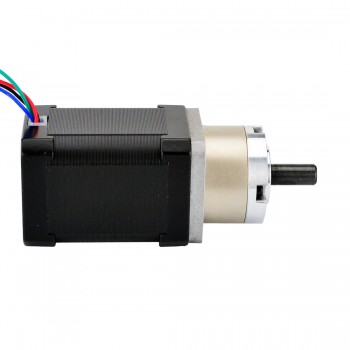

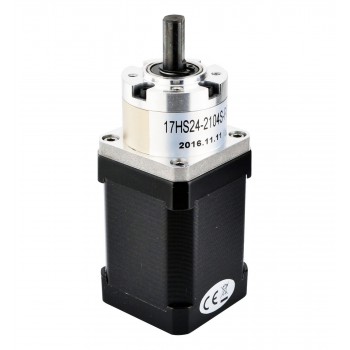

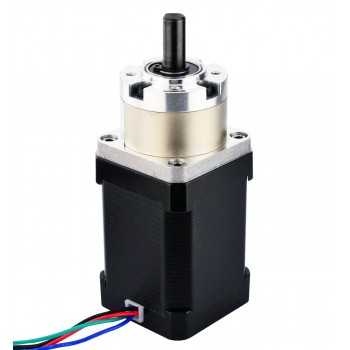

This Nema 17 stepper motor with 60mm body and 2.1A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's suitable for applications that with limited space but need low speed and high torque.



Electrical Specification

  • Manufacturer Part Number: 17HS24-2104S-PG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.35 deg
  • Holding Torque without Gearbox: 65Ncm(92.05oz.in)
  • Rated Current/phase: 2.1A
  • Phase Resistance: 1.6ohms
  • Voltage: 3.36V
  • Inductance: 3.0mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 5.18: 1
  • Efficiency: 90%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 2Nm(283oz.in)
  • Moment Permissible Torque: 4Nm(566oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 60mm
  • Gearbox Length: 27.3mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 750g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.018 deg 1.68A 2.8V with 100:1 Planetary Gearbox
Next: Nema 23 Stepper Motor Bipolar L=56mm 1.25Nm 0.42 deg 2.8A 2.6V with 4:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 90%
Gear Ratio 5.18:1
Gearbox Length(mm) 27.3
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 200
Max. Permissible Torque(oz.in) 283.2
Moment Permissible Torque(Ncm) 566.4
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 3
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.6
Rated Current (A) 2.1
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 65
Holding Torque w/o Gearbox(oz.in) 92
Motor Length(mm) 60
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 800
