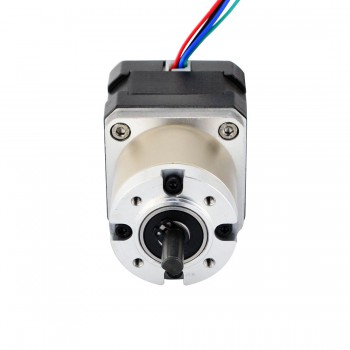

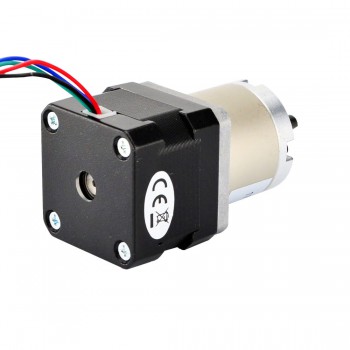

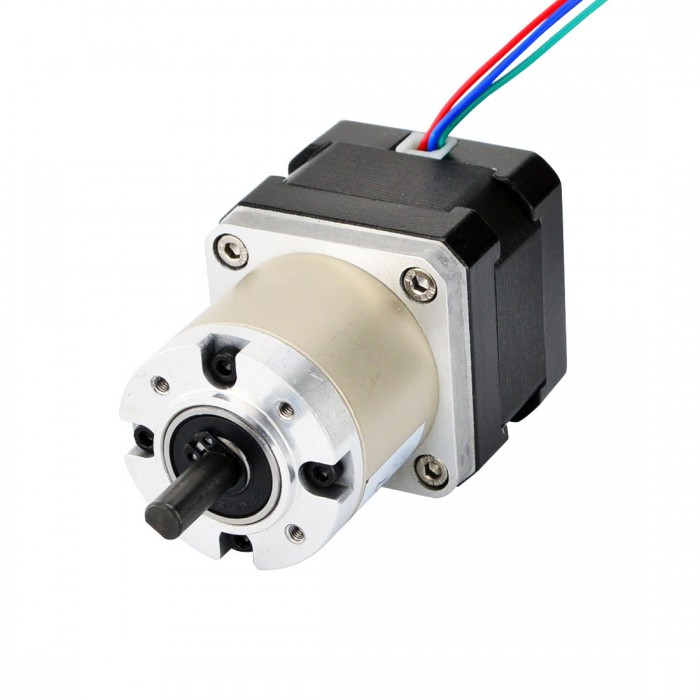

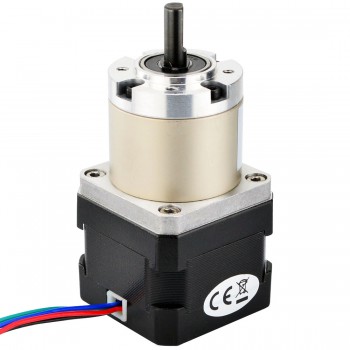

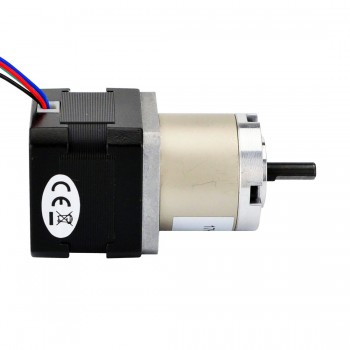

Nema 17 Stepper Motor Bipolar L=33mm 26Ncm 0.067 deg 0.4A 12V with 27:1 Planetary Gearbox

Nema 17 Stepper Motor Bipolar L=33mm 26Ncm 0.067 deg 0.4A 12V with 27:1 Planetary Gearbox
NO.:17HS13-0404S-PG27
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$31.42
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $29.85 5%
10 $29.22 7%
50 $28.28 10%
100 $27.34 13%
Add To Cart

This Nema 17 stepper motor with 33mm body and 0.4A rated current, integrated a planetary gearbox of 26.85:1 gear ratio.  It's suitable for applications that with limited space but need low speed and high torque.



Electrical Specification

  • Manufacturer Part Number: 17HS13-0404S-PG27
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.067 deg
  • Holding Torque without Gearbox: 26Ncm(36.82oz.in)
  • Rated Current/phase: 0.4A
  • Phase Resistance: 30ohms
  • Voltage: 12V
  • Inductance: 34mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 26.85: 1
  • Efficiency: 81%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 3Nm(425oz.in)
  • Moment Permissible Torque: 5Nm(708oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 34mm
  • Gearbox Length: 35mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 500g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Bipolar L=33mm 26Ncm 0.35 deg 0.4A 12V with 5:1 Small Planetary Gearbox
Next: Nema 17 Stepper Bipolar L=33mm 26Ncm 0.67 deg 0.4A 12V with 5:1 Small Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 26.85:1
Gearbox Length(mm) 35
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 708.1
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 27
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 22
Holding Torque w/o Gearbox(oz.in) 31.2
Motor Length(mm) 34
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 500
