Nema 17 Stepper Bipolar L=33mm 26Ncm 0.67 deg 0.4A 12V with 5:1 Small Planetary Gearbox

Nema 17 Stepper Bipolar L=33mm 26Ncm 0.67 deg 0.4A 12V with 5:1 Small Planetary Gearbox
NO.:17HS13-0404S-CG27
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$36.77
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $34.93 5%
10 $34.20 7%
50 $33.09 10%
100 $31.99 13%
Add To Cart

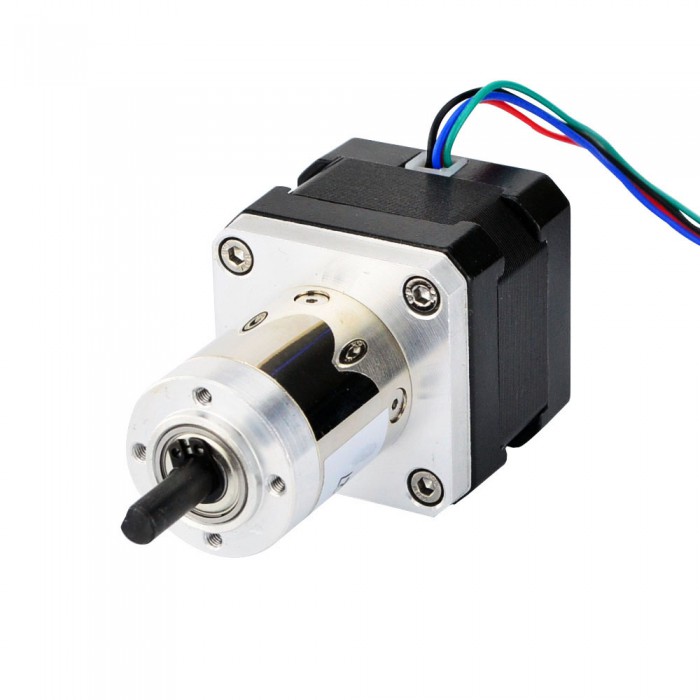

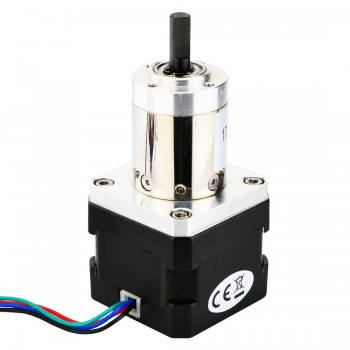

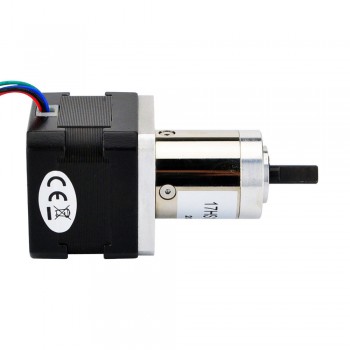

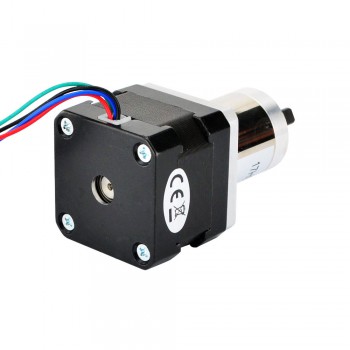

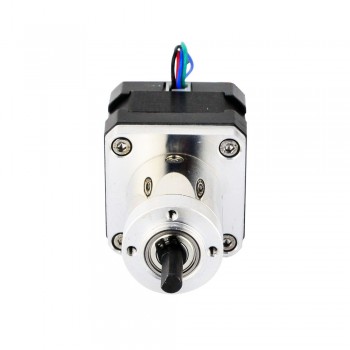

This custom Nema 17 stepper motor with 33mm body and 0.4A rated current, integrated a 28mm diameter Planetary gearbox of 26.85:1 gear ratio.



Electrical Specification

  • Manufacturer Part Number: 17HS13-0404S-CG27
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.67 deg
  • Holding Torque without Gearbox: 26Ncm(36.82oz.in)
  • Rated Current/phase: 0.4A
  • Phase Resistance: 30ohms
  • Voltage: 12V
  • Inductance: 34mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 26.85: 1
  • Efficiency: 81%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 3Nm(425oz.in)
  • Moment Permissible Torque: 5Nm(708oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 34mm
  • Gearbox Length: 37mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 400g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar L=33mm 26Ncm 0.067 deg 0.4A 12V with 27:1 Planetary Gearbox
Next: Nema 17 Stepper Motor Bipolar L=38mm 36Ncm 0.35 deg 1.68A 2.8V with 5:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 26.85:1
Gearbox Length(mm) 37
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 708.1
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Inductance(mH) 27
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 22
Holding Torque w/o Gearbox(oz.in) 31.2
Motor Length(mm) 34
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 500
