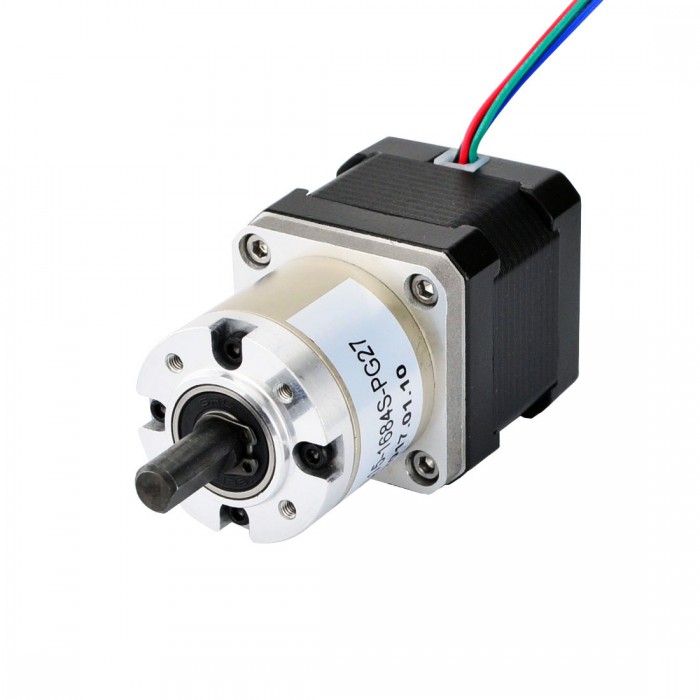

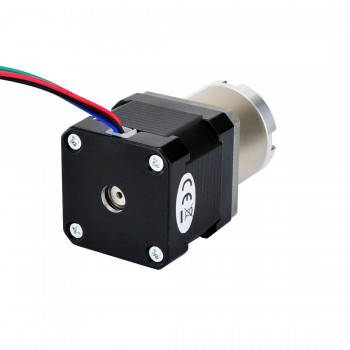

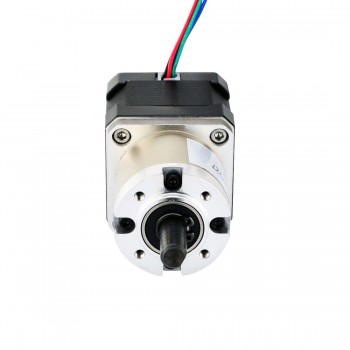

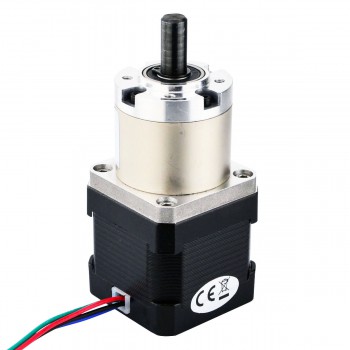

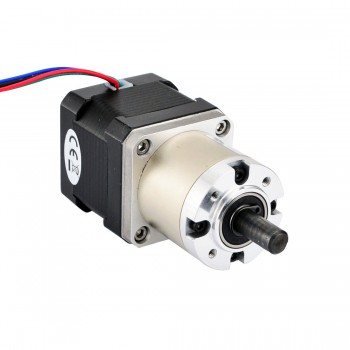

Nema 17 Stepper Motor Bipolar L=38mm 36Ncm 0.067 deg 1.68A 2.8V with 27:1 Planetary Gearbox

Nema 17 Stepper Motor Bipolar L=38mm 36Ncm 0.067 deg 1.68A 2.8V with 27:1 Planetary Gearbox
Review: Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$32.19
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $30.58 5%
10 $29.94 7%
50 $28.97 10%
100 $28.01 13%
Add To Cart

This Nema 17 stepper motor with 38mm body and 1.68A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's suitable for  applications that with limited space but need low speed and high torque.


Electrical Specification

  • Manufacturer Part Number: 17HS15-1684S-PG27
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.067 deg
  • Holding Torque without Gearbox: 36Ncm(50.98oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.65ohms
  • Voltage: 2.8V
  • Inductance: 3.2mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 26.85: 1
  • Efficiency: 81%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 3Nm(425oz.in)
  • Moment Permissible Torque: 5Nm(708oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 40mm
  • Gearbox Length: 35mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 510g





Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar L=38mm 36Ncm 0.35 deg 1.68A 2.8V with 5:1 Planetary Gearbox
Next: Nema 17 Stepper Motor Unipolar L=48mm 32Ncm 0.131 deg 0.4A 12V with 14:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 26.85:1
Gearbox Length(mm) 35
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 708.1
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 3.2
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.65
Rated Current (A) 1.68
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 36
Holding Torque w/o Gearbox(oz.in) 51
Motor Length(mm) 40
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 550

RAT – 14 Jun 2017

Don't look to be swapping gearboxes, or maybe you can in the right configurations, dunno. The shaft on the motor is splined to work directly as the sun gear on the planetary gear box. I was hoping to see a D shaft in there to make it more useful in any configuration. The existing makes sense, just not what I was hoping for.
