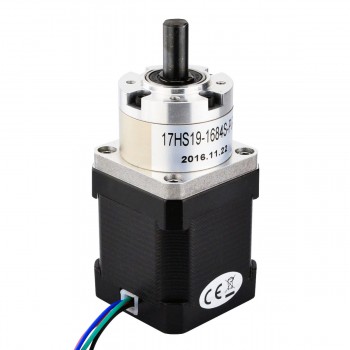

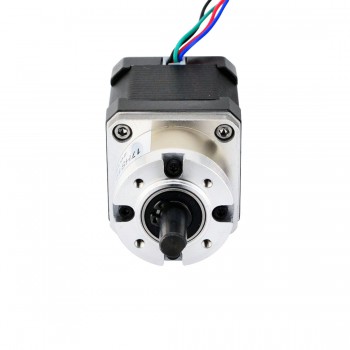

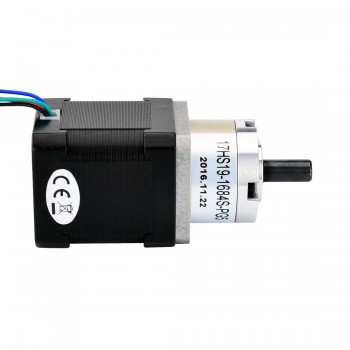

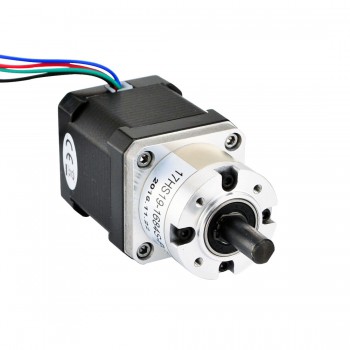

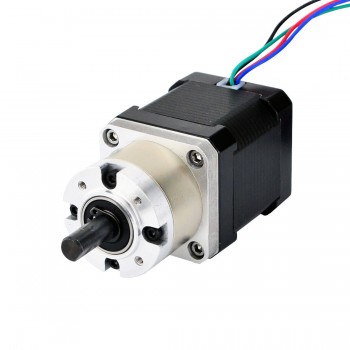

This Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
Electrical Specification
- Manufacturer Part Number: 17HS19-1684S-PG5
- Motor Type: Bipolar Stepper
- Step Angle: 0.35 deg
- Holding Torque without Gearbox: 44Ncm(62.31oz.in)
- Rated Current/phase: 1.68A
- Phase Resistance: 1.65ohms
- Voltage: 2.8V
- Inductance: 2.8mH ± 20%(1KHz)
Gearbox Specifications
- Gearbox Type: Planetary
- Gear Ratio: 5.18: 1
- Efficiency: 90%
- Backlash at No-load: <=1 deg
- Max.Permissible Torque: 2Nm(283oz.in)
- Moment Permissible Torque: 4Nm(566oz.in)
- Shaft Maximum Axial Load: 50N
- Shaft Maximum Radial Load: 100N
Physical Specifications
- Frame Size: 42 x 42mm
- Motor Length: 48mm
- Gearbox Length: 27.3mm
- Shaft Diameter: Φ8mm
- Shaft Length: 20mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 520g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 17HS19-1684S-PG5.pdf
- Torque Curve: 17HS19-1684S-PG5_Torque_Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Gearbox Specification | |
|---|---|
| Backlash at No-load(Max.°) | 1 |
| Efficiency | 90% |
| Gear Ratio | 5.18:1 |
| Gearbox Length(mm) | 27.3 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 200 |
| Max. Permissible Torque(oz.in) | 283.2 |
| Moment Permissible Torque(Ncm) | 566.4 |
| Shaft Maximum Axial Load(N) | 50 |
| Shaft Maximum Radial Load(N) | 100 |
| Motor Specification | |
| Inductance(mH) | 3.2 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.8 |
| Rated Current (A) | 1.68 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 52 |
| Holding Torque w/o Gearbox(oz.in) | 73.6 |
| Motor Length(mm) | 48 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Physical Specification | |
| Weight(g) | 600 |
Lynk – 27 Mar 2017
Second one I have purchased. Good quality and work as expected.
Matt – 02 Feb 2017
Gearbox is fine, but the output shaft does not fit an extruder drive gear. I had to disassemble the gearbox and turn down the output shaft on a lathe in order to use it.
James Smith – 11 Sep 2016
shipped fast, super quality, specifications shipped in package with it made it easy to put it online. Its past QA and has been on the equipment for three days with out missing a beat!
