Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.035 deg 1.68A 2.8V with 51:1 Planetary Gearbox

Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.035 deg 1.68A 2.8V with 51:1 Planetary Gearbox
NO.:17HS19-1684S-PG51
Review: Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$36.01
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $34.21 5%
10 $33.49 7%
50 $32.41 10%
100 $31.33 13%
Add To Cart

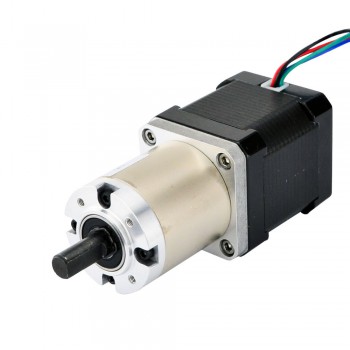

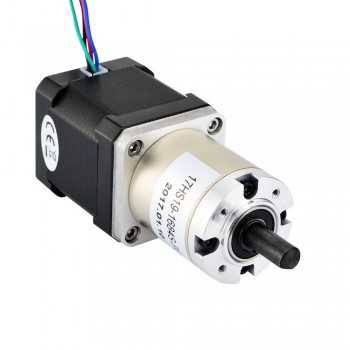

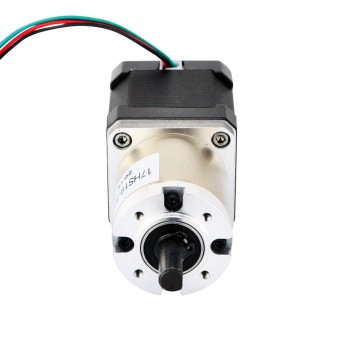

This Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated a planetary gearbox of 50.9:1 gear ratio.It's suitable for applications that with limited space but need low speed and high torque.



Electrical Specification

  • Manufacturer Part Number: 17HS19-1684S-PG51
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.035 deg
  • Holding Torque without Gearbox: 44Ncm(62.31oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.65ohms
  • Voltage: 2.8V
  • Inductance: 2.8mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 50.9: 1
  • Efficiency: 73%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 4Nm(566oz.in)
  • Moment Permissible Torque: 6Nm(850oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 48mm
  • Gearbox Length: 42.7mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 620g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar 44Ncm L=48mm 0.067 deg 1.68A 2.8V with 27:1 Planetary Gearbox
Next: Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.0253 deg 1.68A 2.8V with 71:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 73%
Gear Ratio 50.89:1
Gearbox Length(mm) 42.7
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566.4
Moment Permissible Torque(Ncm) 849.7
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 3.2
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.8
Rated Current (A) 1.68
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 52
Holding Torque w/o Gearbox(oz.in) 73.6
Motor Length(mm) 48
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 600
