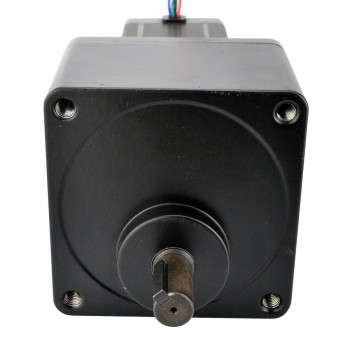

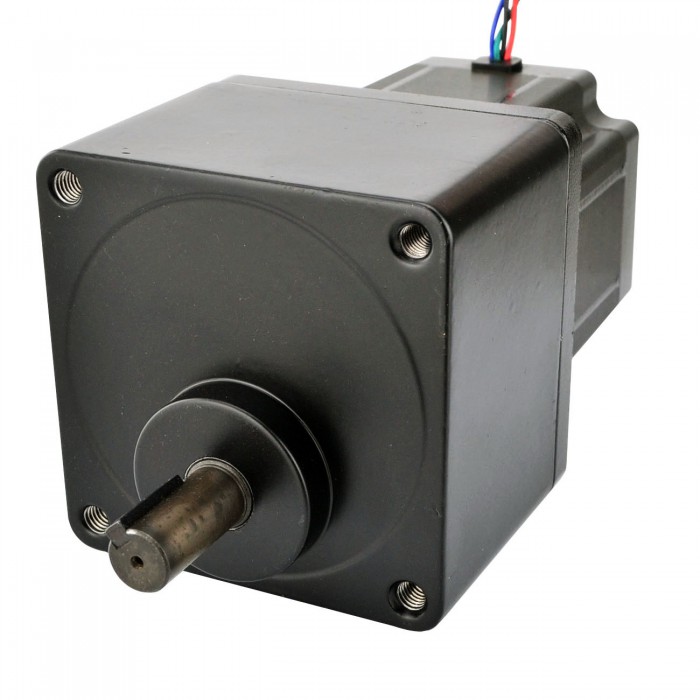

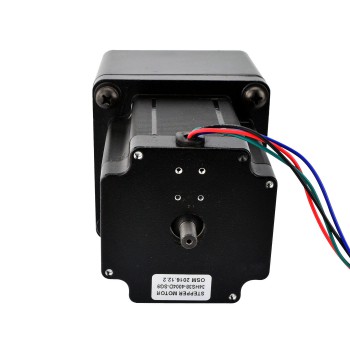

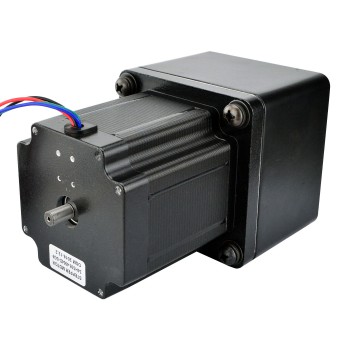

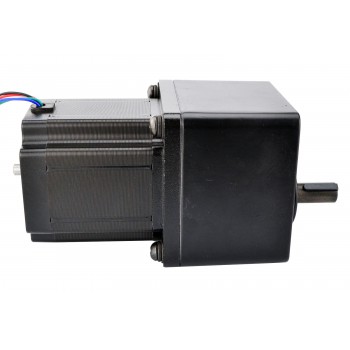

Nema 34 Stepper Motor Bipolar L=97mm w/ Rear Shaft & Gear Ratio 9:1 Spur Gearbox

NO.:SKU:34HS38-4004D-SG9
Review: Post a review
Latest price:$155.43
Buy It Now:$119.56
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$114.12 $108.69 $103.25 $100.83
Add To Cart

This Nema 34 stepper motor with 97mm body and 4.0A rated current, integrated a104mm square spur gearbox of 9:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

  • Manufacturer Part Number: 34HS38-4004D-SG9
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.2 deg
  • Holding Torque without Gearbox: 4.5Nm(637.25oz.in)
  • Rated Torque: 29.2Nm
  • Rated Current/phase: 4.0A
  • Phase Resistance: 0.6ohms
  • Voltage: 2.4V
  • Inductance: 4.5mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Spur
  • Gear Ratio: 9
  • Efficiency: 90%
  • Backlash at No-load: <=3 deg
  • Max.Permissible Torque: 40Nm

Physical Specifications

  • Frame Size: 104 x 104mm
  • Motor Length: 97mm
  • Gearbox Length: 72mm
  • Shaft Diameter: Φ15mm
  • Shaft Length: 43mm
  • Key-way length: 25mm
  • Key-way width: 5mm
  • Rear Shaft Diameter: 8mm
  • Rear Shaft Length: 13mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 5.6kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar L=76mm w/ Gear Ratio 30:1 Spur Gearbox
Next: Nema 34 Stepper Motor Bipolar L=97mm w/ Rear Shaft & Gear Ratio 13:1 Spur Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 3
Efficiency 90%
Gear Ratio 9:1
Gearbox Length(mm) 72
Gearbox Type Spur
Max. Permissible Torque(Ncm) 4000
Max. Permissible Torque(oz.in) 5664.5
Motor Specification
Inductance(mH) 4.5
Lead Length(mm) 500
Motor Nema Size Nema 34
No. of Lead 4
Phase Resistance(ohm) 0.6
Rated Current (A) 4
Shaft Diameter(mm) 15
Shaft Length(mm) 43
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 450
Holding Torque w/o Gearbox(oz.in) 637.3
Motor Length(mm) 97
Single Shaft/Dual Shaft Dual Shaft
Shaft Type Key-Way
Physical Specification
Weight(g) 5000
