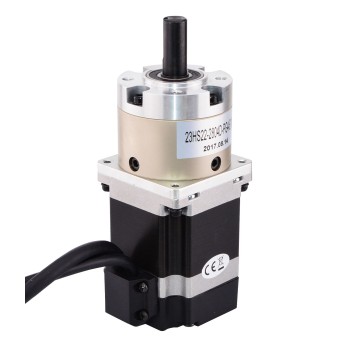

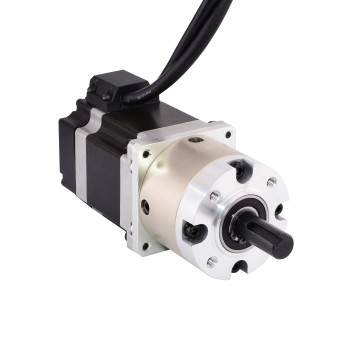

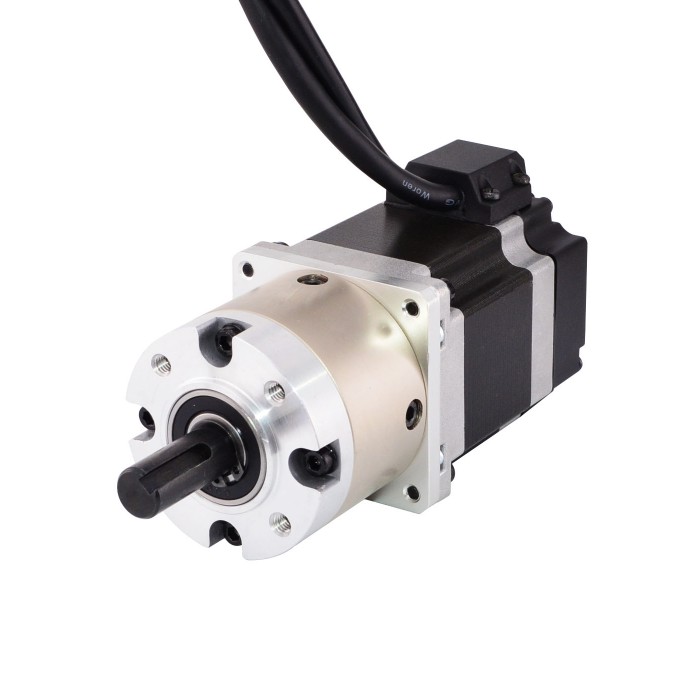

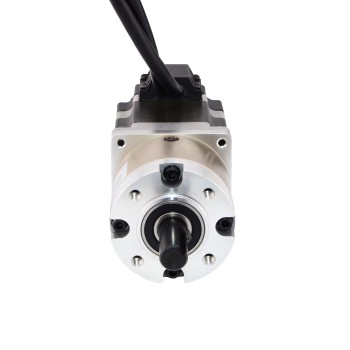

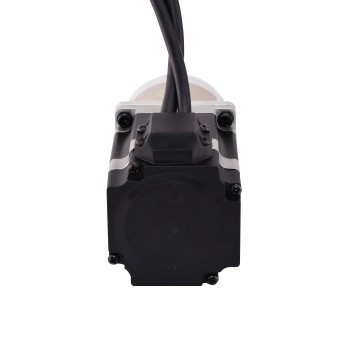

Nema 23 Closed-loop Geared Stepper 1.8 Deg L=56mm 1.25Nm 2.8A 2.6V with 4:1 Encoder 1000CPR

Nema 23 Closed-loop Geared Stepper 1.8 Deg L=56mm 1.25Nm 2.8A 2.6V with 4:1 Encoder 1000CPR
NO.:23HS22-2804D-PG4-E1000
Review: Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$131.19
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $124.63 5%
5 $122.01 7%
10 $118.07 10%
50 $114.14 13%
Add To Cart

Motor Specification

  • Manufacturer Part Number: 23HS22-2804D-PG4-E1000
  • Motor Type: Bipolar Stepper
  • Frame Size: 57 x 57mm
  • Motor Length: 56mm
  • Step Angle without Gearbox: 1.8deg
  • Holding Torque without Gearbox: 1.25Nm(177oz.in)
  • Rated Current/phase: 2.8A
  • Phase Resistance: 0.9ohms
  • Voltage: 2.6V
  • Inductance: 2.5mH ± 20%(1KHz)
  • Number of Leads: 4
  • Lead Length: 500mm

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gearbox Length: 48mm
  • Gear Ratio: 4.25
  • Efficiency: 90%
  • Shaft Diameter: Φ12mm
  • Shaft Length: 30mm
  • Key-way length: 20mm
  • Key-way width: 4mm
  • Backlash at No-load: <=1.5 deg
  • Max.Permissible Torque: 20Nm(2832oz.in)
  • Moment Permissible Torque: 30Nm(4248oz.in)
  • Shaft Maximum Axial Load: 100N
  • Shaft Maximum Radial Load: 200N

Encoder Specification

  • Driving Voltage : 5V
  • Output current : 55mA
  • Resolution : 1000ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ8mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm
  • IP Protection : IP20

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 34 Closed Loop Stepper Motor 1.8 Deg 13.0Nm 5A 5V with Encoder 1000CPR
Next: Nema 23 Closed-loop Geared Stepper Motor L=56mm 1.8 Deg 2.8A 2.6V with 15:1 Encoder 1000CPR
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 56
Holding Torque (Ncm) 125
Holding Torque (oz.in) 177
Inductance(mH) 2.5
Lead Length(mm) 500
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Shaft Diameter(mm) 12
Shaft Length(mm) 30
Bipolar/Unipolar Bipolar
Electrical Specification
Output Frequency(MHz) ≤1MHz
Encoder Specification
Rated Voltage(V) 5V
Output Current(mA) 55
Resolution(CPR) 1000
Output Signal Channels 2 Channels
Running Speed(rpm) ≤5000rpm
IP Protection IP20
Physical Specification
Weight(g) 1500
